Quick Details
-
Rated Power:
-
4.0 KW
-
Engraving Speed:
-
15 m/min
-
Main Axle Rotational Speed:
-
0-40000 rpm
-
Feeding Height:
-
165 mm
-
Milling Cutter Diameter:
-
3.375 mm
-
Application:
-
copper, brass, magnesium
-
Dimensions:
-
1980*1550*2000 mm
-
Weight (KG):
-
2800
-
Product name:
-
CNC Engraving And Milling Machine For Hot Stamping Brass Medal Mold
-
Keyword:
-
Hot Stamping Brass Medal Mold
-
Working Area:
-
600x900x165 mm
-
Frame base & gantry:
-
High Precision Granite
-
CNC Controller System:
-
Weihong
-
Spindle Speed:
-
0~40000 rpm
-
CNC or Not:
-
CNC
-
Max. Feed Speed:
-
15 m/min
-
Max. Working Speed:
-
10 m/min
-
Drive motor:
-
Servo system
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ND Group
-
Machine Type:
-
High Precision Machine
-
Rated Power:
-
4.0 KW
-
Engraving Speed:
-
15 m/min
-
Main Axle Rotational Speed:
-
0-40000 rpm
-
Feeding Height:
-
165 mm
-
Milling Cutter Diameter:
-
3.375 mm
-
Application:
-
copper, brass, magnesium
-
Dimensions:
-
1980*1550*2000 mm
-
Weight (KG):
-
2800
-
Product name:
-
CNC Engraving And Milling Machine For Hot Stamping Brass Medal Mold
-
Keyword:
-
Hot Stamping Brass Medal Mold
-
Working Area:
-
600x900x165 mm
-
Frame base & gantry:
-
High Precision Granite
-
CNC Controller System:
-
Weihong
-
Spindle Speed:
-
0~40000 rpm
-
CNC or Not:
-
CNC
-
Max. Feed Speed:
-
15 m/min
-
Max. Working Speed:
-
10 m/min
-
Drive motor:
-
Servo system

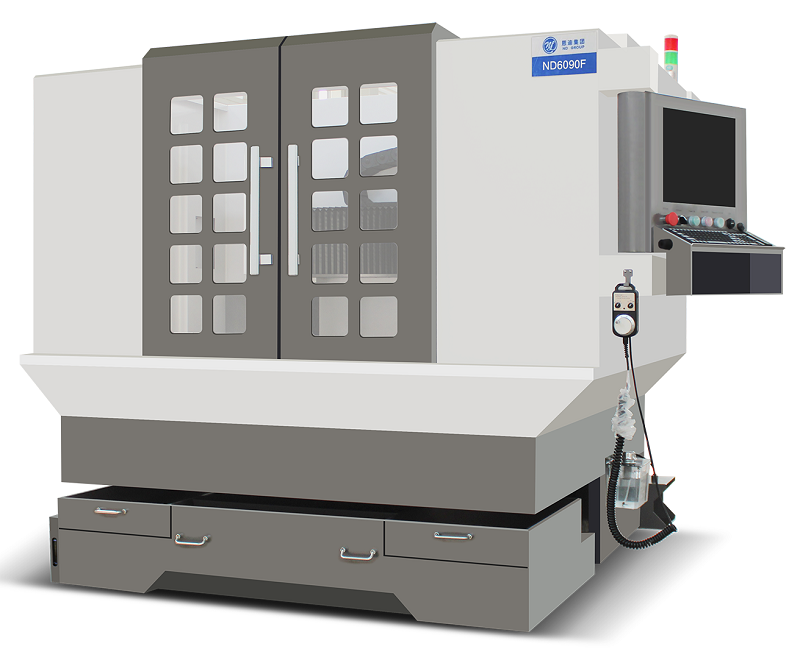

CNC Metal Engraving And Milling Machine For Hot Stamping Brass Medal Mold
| Project | ND6090F Series |
|
Positioning Accuracy(X/Y/Z Axis) |
0.008mm |
| Repeat Positioning Accuracy(X/Y/Z Axis) |
0.005mm |
|
X/Y Axis Perpendicularity |
0.01mm |
|
Z/XY Axis Perpendicularity |
0.01mm |
|
Max. Feed Speed |
15m/min |
|
Max. Working Speed |
6m/min |
|
Travel X/Y/Z |
600*900*165mm |
|
Machine Dimension |
2570*1680*2150mm |
|
Positive Pressure Air Flow/Pressure |
300L/min/0.6Mpa |
1.Machine Structure:
Our machine body, cross beam, base etc. are made of "Jinan Black" natural granite with all precision surfaces manual grinding to achieve and maintain stable structure and high precision.
2.High Precision Combination:
High-precision guideway, ball screw and mechanical parts are directly installed on the grinded surface of high-precision "Jinan Black" granite to achieve the best accuracy combination after assembly.
3.Control System:
Adopt professional control system with powerful tools managenent, compensation production, humanized interface, and automatic loading and unloading functions. The accuracy can be controlled and reached to μ level .
4.Drive System:
High-end bus absolute value drive system for all axes is equipped to ensure high accuracy in the drive process.
Our machine can process hot stamping dies, embossing dies, hot foil dies and so on.
The sample as follows:
1.Renishaw laser interferometer for measuring machine accuracy.
2.Provide on-site technical consultation for customers on materials, cutting tools, proceses and supporting facilities.
3.ND remote training service: support 24 hours-7 days technical support by call or email.
4.All of engineers can speak English, will reply you within 2 hours(include holiday and weekend), basic problem will reply solution within 4-8 hours, complexity problem will reply solution within 12 hours.
Firstly, the cnc center is to be packed with plastic sheet for cleaning and damp proofing.
Secondly, the cnc machine is to be put in the plywood case for safety and clashing.
Thirdly, the plywood case is transported into the container.
