Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JINLE
-
Model Number:
-
ZD1201
-
Torque:
-
6N.m
-
Product Name:
-

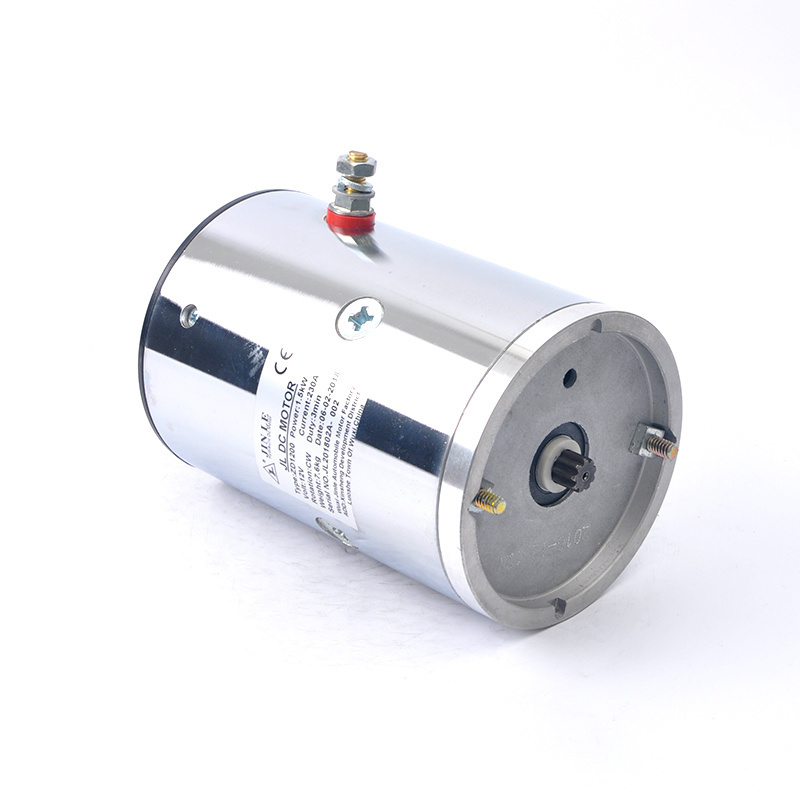

1 hp 12v DC Motor Hydraulic 1600W
-
Rotation:
-
CW
-
O.D.:
-
114mm
-
Operating Mode:
-
S3
-
Weight:
-
7.5KG
-
Insulation:
-
F
-
Protection Class:
-
IP54
-
OEM:
-
available
-
Function:
-
winch motor
-
body length:
-
186mm
Quick Details
-
Speed(RPM):
-
2800RPM
-
Continuous Current(A):
-
Current
-
Efficiency:
-
IE 4
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JINLE
-
Model Number:
-
ZD1201
-
Torque:
-
6N.m
-
Product Name:
-
1 hp 12v DC Motor Hydraulic 1600W
-
Rotation:
-
CW
-
O.D.:
-
114mm
-
Operating Mode:
-
S3
-
Weight:
-
7.5KG
-
Insulation:
-
F
-
Protection Class:
-
IP54
-
OEM:
-
available
-
Function:
-
winch motor
-
body length:
-
186mm
Features of 2 hp 12v DC Motor Hydraulic:
100% copper wire
stable running, high efficiency, low noise
good service after sale
12V, 24V, 48V, 60V etc. on your request
Customized production is available!
Supply for OEM Production!
nearly 20 years' manufacturing experience
Specification of 2 hp 12v DC Motor Hydraulic:
| Type | ZD1200 |
| Voltage | 12V |
| Power | 1.6KW |
| Speed | 2500RPM |
| Rotation | CW |
| O.D. | 114mm |
| Operating Mode | S3 |
| Insulation Class | F |
| Protection Degree | IP54 |
| Weight | 7.5kg |
| Torque | 6N.m |
Welcome to inquire about 2 hp 12v DC Motor Hydraulic.
Technical Data
|
Type |
Voltage |
Power |
Speed |
Rotaion |
O.D. |
|
W5692 |
12V |
1.6KW |
2500RPM |
CW |
114mm |
|
W6599 |
12V |
1.7KW |
2720RPM |
CW |
114mm |
|
W9789 |
12V |
1.6KW |
2500RPM |
CW |
114mm |
|
ZD4201 |
48V |
2.0KW |
2700RPM |
CW |
114mm |
|
ZD1223 |
12V |
2.0KW |
2800RPM |
CW |
114mm |
|
ZD293 |
24V |
2.2KW |
3000RPM |
CW |
114mm |
|
ZD2930 |
24V |
2.2KW |
2700RPM |
CW |
114mm |
|
ZD1221 |
12V |
2.0KW |
2900RPM |
CW |
114mm |
|
ZD2931 |
24V |
2.0KW |
2600RPM |
CW |
114mm |
|
ZD223A |
24V |
2.2KW |
2700RPM |
CW |
114mm |
|
ZDY211 |
24V |
0.8KW |
3650RPM |
CW |
80mm |
|
ZDY212 |
24V |
0.5KW |
2800RPM |
CW |
80mm |
|
ZDY112 |
12V |
0.5KW |
2300RPM |
CW |
80mm |
|
ZDY113 |
12V |
0.8KW |
3500RPM |
CW |
80mm |
|
ZD2973A |
24V |
3.0KW |
3100RPM |
CW |
127mm |
|
ZD2973A |
24V |
3.0KW |
3100RPM |
CW |
127mm |
|
ZD2373 |
24V |
3.0KW |
2850RPM |
CW |
125mm |
|
XQD-3C |
24V |
3.5KW |
3100RPM |
CW |
142mm |
|
Type |
Voltage |
Power |
Speed |
Rotaion |
O.D. |
|
W8799 |
12V |
1.5KW |
2400RPM |
CCW |
114mm |
|
W8935 |
12V |
1.5KW |
2460RPM |
CCW |
114mm |
|
W8950 |
24V |
2KW |
2600RPM |
CCW |
114mm |
|
W8999 |
12V |
1.6KW |
2500RPM |
CCW |
114mm |
|
W9405 |
24V |
1.5KW |
2400RPM |
CCW |
114mm |
|
ZD193A |
12V |
1.6KW |
2500RPM |
CCW |
114mm |
|
ZD223A |
24V |
2.2KW |
2700RPM |
CCW |
114mm |
|
ZD293A |
24V |
2.2KW |
3000RPM |
CCW |
114mm |
|
Type |
Voltage |
Power |
Speed |
Rotaion |
O.D. |
|
QZD2402 |
24V |
2.2KW |
1750RPM |
BI-DIRECTIONAL |
164mm |
|
QZD2409 |
24V |
0.9KW |
2150RPM |
BI-DIRECTIONAL |
126mm |
|
QZD2411 |
24V |
1.1KW |
2160RPM |
BI-DIRECTIONAL |
127mm |
|
QZD2412 |
24V |
2.2KW |
1750RPM |
BI-DIRECTIONAL |
164mm |
|
QZD2422 |
24V |
2.2KW |
1750RPM |
BI-DIRECTIONAL |
164mm |
|
QZD2445 |
24V |
4.5KW |
1750RPM |
BI-DIRECTIONAL |
180mm |
|
QZD4840 |
48V |
4.8KW |
1750RPM |
BI-DIRECTIONAL |
218mm |
|
QZD4841 |
48V |
4.0KW |
2030RPM |
BI-DIRECTIONAL |
170mm |
|
W8923 |
12V |
1.4KW |
2250RPM |
BI-DIRECTIONAL |
114mm |
|
W8930B |
12V |
1.5KW |
2380RPM |
BI-DIRECTIONAL |
114mm |
|
W8941 |
12V |
1.5KW |
2400RPM |
BI-DIRECTIONAL |
114mm |
|
W9144 |
12V |
1.5KW |
2150RPM |
BI-DIRECTIONAL |
114mm |
|
W7923 |
12V |
1.2KW |
1700RPM |
BI-DIRECTIONAL |
114mm |
Q: Do you accept OEM manufacturing?
A: Yes! We do accept OEM manufacturing. You could give us your samples or drawings.
Q: Can we design our own package or print our own logo?
A: Yes! You could! Package will be acording to your requirements?
Q: Could we get the samples?
A: Yes! Definitly! The samples will be sent to you.
