Quick Details
-
Warranty:
-
30years, 10 years Full warranty on the Material and workmanship "
-
Brand Name:
-
Hetech
-
Model Number:
-
HT-F330W
-
Place of Origin:
-
Henan, China
-
Panel Dimensions:
-
1535*765*3mm
-

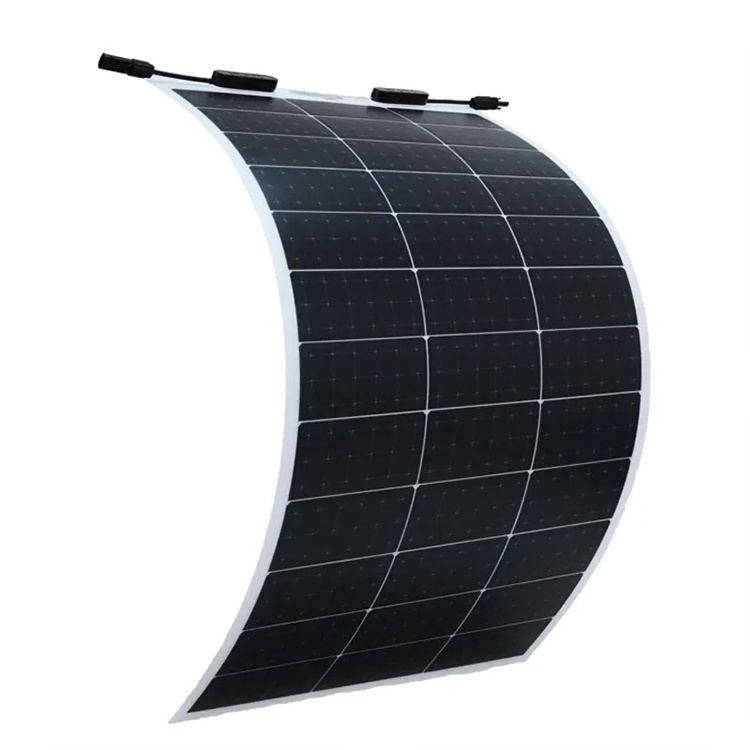

Product name:
-
flexible solar panel price
-
Solar cell:
-
Mono perc 166 mm Cell
-
Cable:
-
900mm pv cable
-
Back Sheet:
-
"White Tedlar / black tedlar /PCB "
-
Keyword:
-
flexible solar panel
-
Certificate:
-
CE, CE/TUV
-
Grommets:
-
4
-
Thickness:
-
2mm thickness
-
Application:
-
home system
Quick Details
-
Cell size:
-
166mmx166mm
-
Type:
-
PERC, Flexible
-
Panel Efficiency:
-
21%
-
Warranty:
-
30years, 10 years Full warranty on the Material and workmanship "
-
Brand Name:
-
Hetech
-
Model Number:
-
HT-F330W
-
Place of Origin:
-
Henan, China
-
Panel Dimensions:
-
1535*765*3mm
-
Product name:
-
flexible solar panel price
-
Solar cell:
-
Mono perc 166 mm Cell
-
Cable:
-
900mm pv cable
-
Back Sheet:
-
"White Tedlar / black tedlar /PCB "
-
Keyword:
-
flexible solar panel
-
Certificate:
-
CE, CE/TUV
-
Grommets:
-
4
-
Thickness:
-
2mm thickness
-
Application:
-
home system
Product features
Application
Product Paramenters
|
CHARACTERISTICS
|
|
|
|
|
|
|
||||||
|
Maximum Power (Pmax)
|
250W
|
300W
|
360W
|
420W
|
450W
|
500W
|
||||||
|
Maximum Power Voltage (Vmp)
|
18.85V
|
27.68V
|
33.30V
|
31.80V
|
33.91V
|
38.35V
|
||||||
|
Maximum Power Current (Imp)
|
13.27A
|
10.84A
|
10.83A
|
13.21A
|
13.28A
|
13.04A
|
||||||
|
Open-circuit Voltage (Voc)
|
21.83V
|
33.13V
|
40V
|
37.58V
|
40.02V
|
45.26V
|
||||||
|
Short-circuit Current (Isc)
|
13.97A
|
11.33A
|
11.57A
|
14.10A
|
13.88A
|
13.63A
|
||||||
|
Dimensions
|
1535*765*3mm
|
1909*765*3mm
|
1755*1038*3mm
|
1722*1134*3mm
|
1903*1134*3mm
|
2094*1134*3mm
|
||||||
|
STC
|
Irradiance 1000W/m2,cell temperature 25℃ AM1.5G
|
|
|
|
|
|
||||||
