Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZHAOXIN
-
Interface:
-
SPI
-
Resolution:
-
240*240
-
Brightness:
-
350cd/m2
-
Backlight:
-
2 white LED
-
Viewing Direction:
-
ALL.O'CLOCK
-
Operating Temperature:
-
-20-+70C
-
Storage Temperature:
-
-30 -+80C
-
Outline Dimension:
-
35.6*38.1*1.6mm
-
Active Area:
-
32.4*32.4mm
-
Driver IC:
-
GC9A01
Quick Details
-
Type:
-
TFT
-
Display Size:
-
1.28inch
-
Supplier Type:
-
factory
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZHAOXIN
-
Interface:
-
SPI
-
Resolution:
-
240*240
-
Brightness:
-
350cd/m2
-
Backlight:
-
2 white LED
-
Viewing Direction:
-
ALL.O'CLOCK
-
Operating Temperature:
-
-20-+70C
-
Storage Temperature:
-
-30 -+80C
-
Outline Dimension:
-
35.6*38.1*1.6mm
-
Active Area:
-
32.4*32.4mm
-
Driver IC:
-
GC9A01

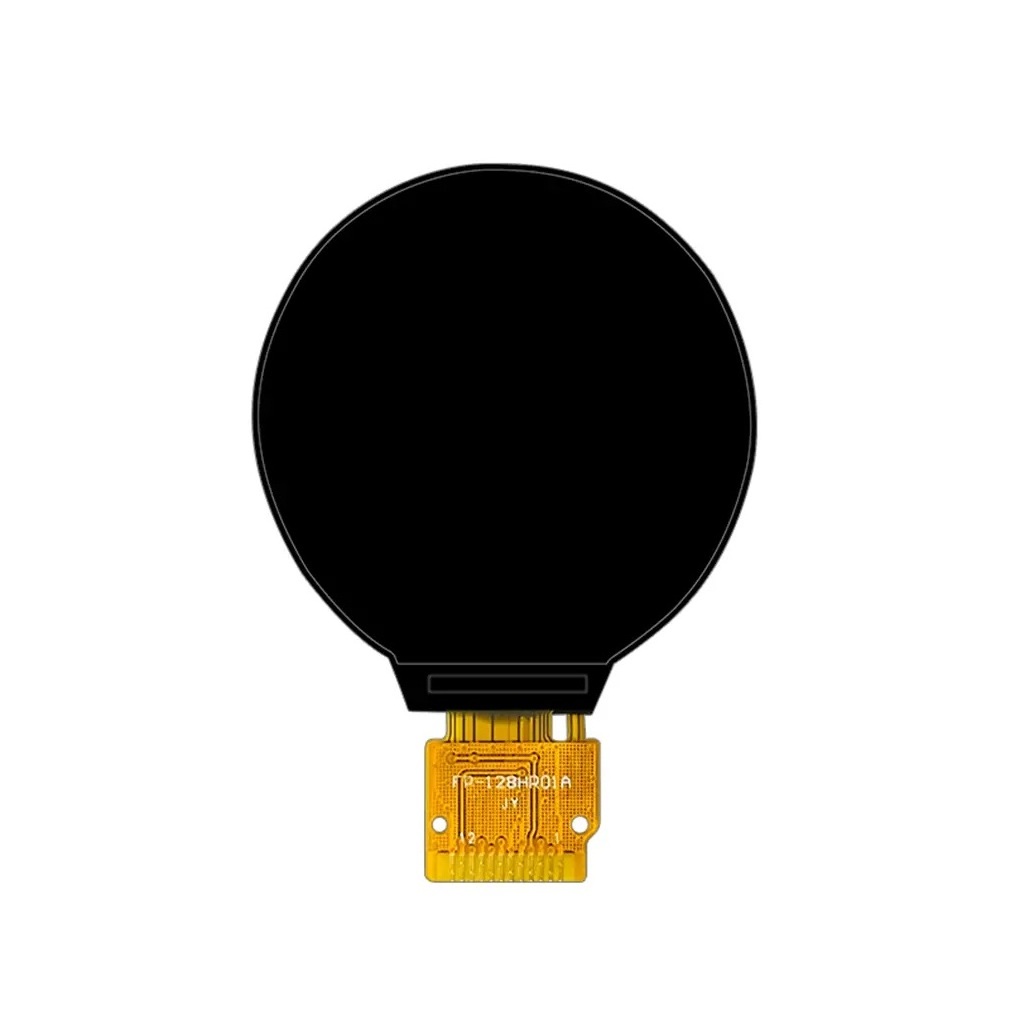

Product Description
|
No
|
Item
|
Contents
|
Unit
|
|
1
|
LCD Size
|
1.28 inch
|
|
|
2
|
Display Mode
|
Normally black
|
|
|
3
|
Resolution
|
240(H)RGB x 240(V)
|
|
|
4
|
Dot pitch
|
0.135(H) x 0.135(V)
|
mm
|
|
5
|
Module size
|
35.6(H) x 38.1(V) x1.6(D)
|
mm
|
|
6
|
Active area
|
32.4 *32.4
|
mm
|
|
7
|
Color arrangement
|
RGB Vtertical stripe
|
|
|
8
|
Interface
|
SPI Interface
|
|
|
9
|
Drive IC
|
GC9A01
|
|
|
10
|
Luminance
|
350 (TYP)
|
cd/m2
|
|
11
|
Viewing Direction
|
All View
|
|
|
12
|
Backlight
|
2 White LED
|
|
|
13
|
Operating Temp
|
-20℃~ + 70℃
|
℃
|
|
14
|
Storage Temp
|
-30℃~+ 80℃
|
℃
|
|
15
|
Weight
|
1.2
|
g
|
|
Quality
|
Level A,A+,100%tested
|
|
Life
|
Long Life
|
Related Products
Packing&Shipping
Packaging Details
Factory standard package
In anti-static bag+air bubble+paper box
Customized package
Factory standard package
In anti-static bag+air bubble+paper box
Customized package
Packaging and delivery:
Shipping: prompt delivery by UPS, EMS, DHL, TNT, FedEx, or by air
Delivery time: 7-10 days for goods in stock, 3-4 weeks for mass production goods
Packaging details: packed in anti-static bags with foam box to ensure safety in transportation
Delivery details: 1 to 30 days. The delivery fee is up to the weight and volume of the products
Samples: our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight
Shipping: prompt delivery by UPS, EMS, DHL, TNT, FedEx, or by air
Delivery time: 7-10 days for goods in stock, 3-4 weeks for mass production goods
Packaging details: packed in anti-static bags with foam box to ensure safety in transportation
Delivery details: 1 to 30 days. The delivery fee is up to the weight and volume of the products
Samples: our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight
Company Introduction
Zhaoxin is a leading TFT LCD display module manufacturer, it was founded in 2010, covers an era of 4000 square meters, including 2000 square meter dust-free workshop, 300 square meters warehouse and several chamber rooms, etc.
With over 150 workers and professional management team, Zhaoxin supplies over 500 existing customers, meets different customized requirements of LCD display solution.
We provide design, manufacturing and assembly of most internal components to provide the most appropriate solution to meet the personalized demand of customers.
Dustless Workshop , skillful workers and precise detection assures you the highest quality product . Experienced sales and
technical personnel ensure you the optimum cooperation. Whether your product will be used in the great outdoors or a hospital operating room, we can build a solution for your specific application.
Our sales network covers the US, Europe and Asia, providing great service and product all over the world. We are committed to expanding our product portfolio, actively promoting strategic supplier partnerships and developing state-of-the-art manufacturing facilities to meet the changing needs of the technology industry.
Our products are colorful, highly stable, long life, high contrast and lower power consumption, which are applied to the following fields: industrial PC, medical equipment, intelligent robot, Car LCD, POS terminal, etc. Highly customized or not is depends on our customers’ demand.
Please feel free to contact us and let us support your project!
With over 150 workers and professional management team, Zhaoxin supplies over 500 existing customers, meets different customized requirements of LCD display solution.
We provide design, manufacturing and assembly of most internal components to provide the most appropriate solution to meet the personalized demand of customers.
Dustless Workshop , skillful workers and precise detection assures you the highest quality product . Experienced sales and
technical personnel ensure you the optimum cooperation. Whether your product will be used in the great outdoors or a hospital operating room, we can build a solution for your specific application.
Our sales network covers the US, Europe and Asia, providing great service and product all over the world. We are committed to expanding our product portfolio, actively promoting strategic supplier partnerships and developing state-of-the-art manufacturing facilities to meet the changing needs of the technology industry.
Our products are colorful, highly stable, long life, high contrast and lower power consumption, which are applied to the following fields: industrial PC, medical equipment, intelligent robot, Car LCD, POS terminal, etc. Highly customized or not is depends on our customers’ demand.
Please feel free to contact us and let us support your project!
FAQ
Q1. What is your product range?
A1: We are over 12 years of experience manufacturing TFT LCD and touch screen.
> 1.44" to 12.1" TFT LCD Module;> Bar type LCD screen up to 10.4 inch;
> High brightness LCD panel custom;
> Capacitive touch screen up to 12.1";
> 4 wire 5 wire resistive touch screen;
> One-step solution TFT LCD assemble with touch screen.
Q2: Can you custom the LCD or touch screen for me?
A2: Yes we can provide the custom services.
> For the LCD display, backlight brightness and FPC cable can be customized;
> For the touch screen, we can custom the whole touch panel like the color, shape, cover thickness and so on according to the customer's requirement.
> NRE cost will be refunded after the total quantity reaches 10K pcs.
Q3. Which applications your products are mainly used for?
A3: Embedded system, Intercom system, Biometric, HMI, Smart home, Robot, Hand-held PDA, after market automotive and etc.
Q4. What's the delivery time?
A4: > For samples order, 2-3weeks;> For mass orders, 3-5weeks.
Q5. What shipping method you used?
A5:Usually we used DHL/UPS/Fedex/TNT or by sea/by air or use customer's specified shipping.
Q6. What is your Warranty?
A6: Our Warranty is one year.
Q7. Will the samples or mass production goods tested before shipped?
A7: Yes, all goods are 100% tested before shipped. And all goods are Grade A brand new.
