Quick Details
-
Jacket:
-
no
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
RNEDA
-
Model Number:
-
AAC,AAAC.ACSR ACCR ACAR
-
Size:
-
AS YOUR REQUIREMENTS
-
Certificate:
-
3C, ISO9001, ISO14001, OHSAS18001
-
Standard:
-
IEC, ASTM, BS, DIN, JIS, AS/NZS
-
Norminal section:
-
10mm2-1200mm2
-
Conductor Type:
-
Stranded
-
Color:
-
Silvery White
-
HS Code:
-
7614100000
-
Packing:
-
standard export durm
-
price:
-
low price
Quick Details
-
Insulation Material:
-
no
-
Application:
-
Electric power transmission
-
Conductor Material:
-
Aluminium wire and Galvanized steel wire
-
Jacket:
-
no
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
RNEDA
-
Model Number:
-
AAC,AAAC.ACSR ACCR ACAR
-
Size:
-
AS YOUR REQUIREMENTS
-
Certificate:
-
3C, ISO9001, ISO14001, OHSAS18001
-
Standard:
-
IEC, ASTM, BS, DIN, JIS, AS/NZS
-
Norminal section:
-
10mm2-1200mm2
-
Conductor Type:
-
Stranded
-
Color:
-
Silvery White
-
HS Code:
-
7614100000
-
Packing:
-
standard export durm
-
price:
-
low price

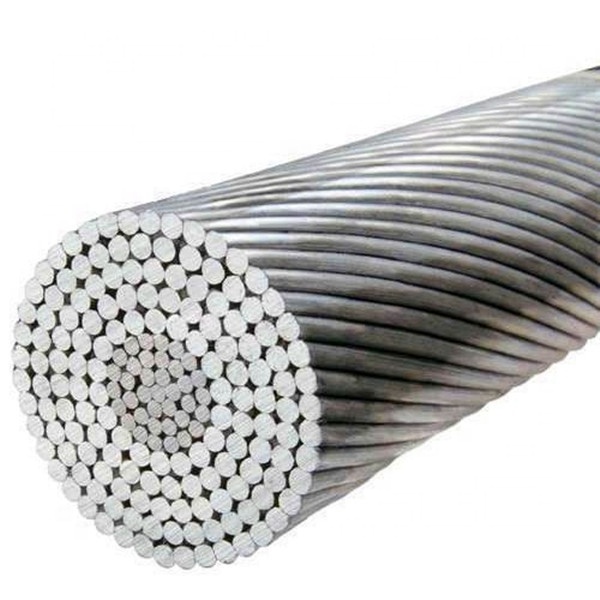

Best selling ACSR 240/40 ALUMINUM Conductor Steel wire core aluminum conductor high voltage cable price
WITH UL,TUV,KEMA,CE,BV,PSB,SABA CERTIFICATIONS
WITH TUV TYPE TESTING REPORT
ISO9001,ISO18001,OHSAS18001
Cable manufacture top ten in China
1. 22 years production experience and 13 years export experience. with good quality and competitive price.
2 Annual Export amount more than 400million USD. Yearly manufacturing capacity 3 Billion RMB.
3 .Main products: Rubber Cables
(upto 35kV),Mining Cable,1-35kV
PVC &XLPE(LV&MV)Power Cables , Elevator Cable,Reeling/Trailing Cables,ESP cable, Solar PV Cables,Bare Conductor (AAC,ACSR,AAAC), ABC cables,Electric Wires, Control Cables, Welding Cable,Screened Cables and so on.
4.Products certification:UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL,DNV;
5. OEM/ODM service available, help you on designing.
6.
Cable solutions to your particular requirements
7. Strict quality control system.
8.
Strong technical support (technical data, drawing, etc.)
10. Free sample is available with economic express fee.
Applications
Conductor(AAC ,AAAC and ACSR) have been widely used in power transmission lines with various voltage levels, because they have such good characteristics as simple structure, convenient installation and maintenance, low cost large transmission capacity. And they are also suitable for laying across rivers valleys and the places where special geographical features exist.
Application for bare conductor :
Conductor (AAC and ACSR) have been widely used in power transmission lines with various voltage, because they have such good characteristics as simple structure, convenient installation and maintenance, low cost and large transmission capacity.
Standard for
bare conductor
:
IEC61089, IEC209, IEC888, IEC889, BS EN50182, ASTM B232, DIN48204, BS215part2
Material Standard for
bare conductor
:
1) The hard aluminum conductor used for AAC and ACSR conforms to the standard GB/T 17048-1997 (equivalent to IEC 60889:1987)
2) The zinc coated steel wire used for ACSR confirms to IEC 60888:1987
3) Production can be arranged according to customers’ requirement such as material standard etc .
GB/T 1179-2008, BS 215, DIN 48204 ect .
|
Type |
Description |
|
JL |
All aluminium stranded conductor (AAC) |
|
JL/G1A, JL/G1B |
Common type aluminium conductor steel reinforced conductor (ACSR) |
|
JL/G2A, JL/G2B |
High-strength level ACSR |
|
JL/G3A |
Extra high-strength level ACSR |
|
JLHA2, JLHA1 |
All aluminium alloy conductor |
|
JL/LHA2,JL/LHA1 |
Aluminium conductor aluminium alloy reinforced |
|
JLLHA2/G1A, JLLHA2/G1B, JLLHA2/G3A, JLHA1/G1A, JLHA1/G1B, JLHA1/G3A |
Aluminium alloy conductor steel reinforced |
|
JLHA2/LB1A, JLHA1/LB1A |
Aluminium alloy conductor aluminium clad steel reinforced |
|
Number and diameter of wire (mm) |
Cross-sectional Area (mm2) |
Overall diameter (mm) |
Weight (kg/km) |
Calculated Breaking load |
Calculated D.C. resistance At 20℃ (ohm/km) |
|
|
kgf |
kN |
|||||
|
7/2.47 |
33.54 |
7.41 |
92 |
1087 |
10.66 |
0.9987 |
|
7/2.67 |
39.19 |
8.01 |
108 |
1270 |
12.45 |
0.8547 |
|
7/3.12 |
53.52 |
9.36 |
148 |
1734 |
17.00 |
0.6259 |
|
7/3.37 |
62.44 |
10.01 |
172 |
2023 |
19.84 |
0.5364 |
|
7/3.50 |
67.35 |
10.50 |
186 |
2091 |
20.51 |
0.4973 |
|
7/3.78 |
78.55 |
11.34 |
217 |
2439 |
23.92 |
0.4264 |
|
7/3.93 |
84.91 |
11.79 |
234 |
2636 |
25.85 |
0.3945 |
|
7/4.25 |
99.30 |
12.75 |
274 |
3083 |
30.23 |
0.3373 |
|
7/4.42 |
107.4 |
13.26 |
296 |
3335 |
32.71 |
0.3119 |
|
7/4.77 |
125.1 |
14.31 |
345 |
3884 |
38.09 |
0.2678 |
|
19/3.66 |
199.9 |
18.30 |
551 |
6012 |
58.96 |
0.1676 |
|
19/3.69 |
203.2 |
18.45 |
560 |
6112 |
59.94 |
0.1648 |
|
19/3.91 |
228.1 |
19.55 |
629 |
6861 |
67.28 |
0.1468 |
|
19/3.98 |
236.4 |
19.90 |
652 |
7110 |
69.73 |
0.1417 |
|
19/4.12 |
253.3 |
20.60 |
698 |
9619 |
74.72 |
0.1322 |
|
37/3.10 |
279.3 |
21.70 |
770 |
8577 |
84.11 |
0.1199 |
|
19/4.36 |
283.7 |
21.80 |
782 |
8533 |
83.64 |
0.1181 |
|
37/3.23 |
303.2 |
22.61 |
836 |
9311 |
91.31 |
0.1105 |
|
37/3.37 |
330.0 |
23.59 |
910 |
10134 |
99.38 |
0.1015 |
|
19/4.71 |
331.0 |
23.55 |
913 |
9956 |
97.64 |
0.1012 |
|
37/3.49 |
354.0 |
24.43 |
976 |
10418 |
102.2 |
0.09462 |
|
37/3.59 |
374.5 |
25.13 |
1033 |
11022 |
108.1 |
0.08944 |
|
37/3.62 |
380.8 |
25.34 |
1050 |
11207 |
109.9 |
0.08796 |
|
37/3.73 |
404.3 |
26.11 |
1115 |
11899 |
116.7 |
0.08285 |
|
37/3.96 |
455.7 |
27.72 |
1256 |
13411 |
131.5 |
0.07350 |
|
37/4.02 |
469.6 |
28.14 |
1295 |
13821 |
135.5 |
0.07133 |
|
37/4.18 |
507.7 |
29.26 |
1400 |
14942 |
146.5 |
0.06598 |
