Quick Details
-
Place of Origin:
-
Japan
-
Brand Name:
-
IDEC
-
Model Number:
-
XN4E-TL412Q4MR
-
IP level:
-
65
-
Material:
-
Plastic+Metal
-
Product name:
-

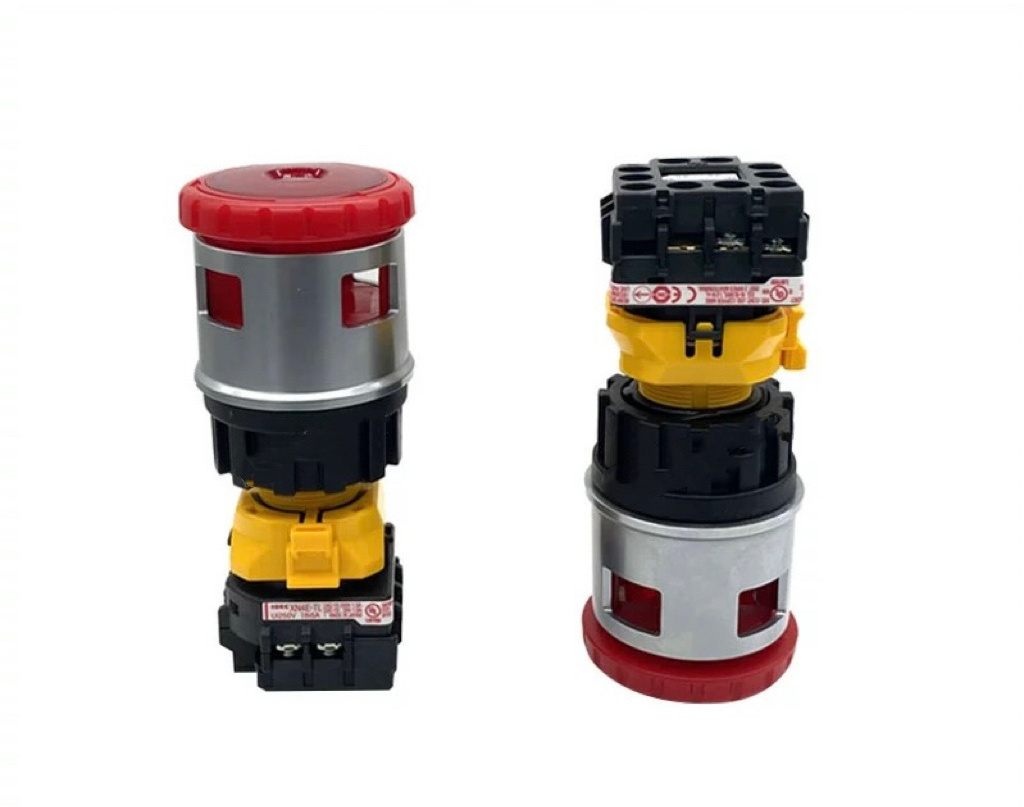

Padlock Type Emergency Stop Switch
-
Model:
-
XN4E-TL412Q4MR
-
Button color:
-
Red
-
Brand:
-
IDEC
-
Voltage:
-
250A
-
Packing:
-
Carton Box
-
MOQ:
-
1PC
-
Current:
-
10A
Quick Details
-
Protection Level:
-
IP65, IP65
-
Max. Current:
-
10A
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Japan
-
Brand Name:
-
IDEC
-
Model Number:
-
XN4E-TL412Q4MR
-
IP level:
-
65
-
Material:
-
Plastic+Metal
-
Product name:
-
Padlock Type Emergency Stop Switch
-
Model:
-
XN4E-TL412Q4MR
-
Button color:
-
Red
-
Brand:
-
IDEC
-
Voltage:
-
250A
-
Packing:
-
Carton Box
-
MOQ:
-
1PC
-
Current:
-
10A
Product Description
Specification
|
Porommance and specification
|
|
|
|
Standard
|
IEC60947-5-1、EN60947-5-1、JIS C8201-5-1IEC60947-5-5年1,EN60947-5-5:JIS C8201-5-5址1UL508、UL991、NFPA79 CSAC22.2 No.14、GB14048.5
|
|
|
|
Ambient temperature
Non-illuminated: -25~+60°C (no freezing)
LED illumination: -25~+55°C (no freezing)
Relative humidity: 45~85%
RH (no condensation) Storage ambient temperature: -45~+80°C (no freezing) |
|
|
Minimum direct open circuit action force
|
80N
|
|
|
To the direct open circuit function minimum operating distance
|
4.0mm
|
|
|
Maximum operating distance
|
4.5mm
|
|
|
Contact resistance
|
Below 50mΩ (initial value)
|
|
|
Insulation resistance
|
More than 100MΩ(500V DC megohm meter)
|
|
|
Overvoltage type
|
Ⅱ
|
|
|
Pulse withstand voltage
|
2.5kV
|
|
|
Class of pollution
|
3
|
|
|
Switching frequency
|
900 times/h
|
|
|
Mechanical life
|
More than 250,000 times
|
|
|
Electric life
|
More than 100,000 times
250,000 + times (24VAC/DC 100mA) |
|
|
Impact resistance
|
Wrong action :150m/s²
Durability :1000m/s² |
|
|
Vibration resistance
|
Misoperation :10~500 Hz, single amplitude 0.35mm,
Acceleration 50 m/s² Durability :10~500 Hz, single amplitude 0.35mm,
Acceleration 50 m/s²
|
|
|
Operation department protection level
|
IP65(front panel :IEC60529)
|
|
|
Terminal protection level
|
IP20(when install XW9Z-VL2MF)
|
|
|
Short-circuit protection
|
250V/10A fuse wire
(Type aM IEC60269-1/IEC60269-2)
|
|
|
Conditional short circuit current
|
1000A
|
|
|
Recommended tightening torque for wiring screws
|
0.6~ 1.0N·m(screw terminal type)
|
|
|
Recommended tightening torque for the locking ring
|
2.5 N·m
|
|
|
Corresponding wire
|
0.75~1.25mm?(AWG18~16)
|
|
|
Total weight of padlock and HASP (Padlock only)
|
Within 1500g
|
|
|
Reinforced insulation
(IEC60664-1) |
Between the live part and the metal frame
|
|
