Quick Details
-
Application:
-
truck crane
-
Rated Lifting Moment:
-
1764kN.M
-
Span:
-
7.6m, 360°
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
JG truck crane
-
Warranty:
-
6 months
-
Weight (KG):
-
60 kg
-
After-sales Service Provided:
-
No overseas service provided
-
Product service:
-
OEM/ODM
-
MOQ:
-
1 Set
-
Power requirements:
-
12V DC 125 Apms
-
No-load line speed:
-
3.6m/min single line
-
Mounting base:
-
250*250*18mms
-
Mounting bolt hole type:
-
170*170mms
-
Model:
-
12V 24V
Quick Details
-
Rated Loading Capacity:
-
500kg
-
Max. Lifting Height:
-
1940mm
-
Engine Brand:
-
jingong
-
Application:
-
truck crane
-
Rated Lifting Moment:
-
1764kN.M
-
Span:
-
7.6m, 360°
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
JG truck crane
-
Warranty:
-
6 months
-
Weight (KG):
-
60 kg
-
After-sales Service Provided:
-
No overseas service provided
-
Product service:
-
OEM/ODM
-
MOQ:
-
1 Set
-
Power requirements:
-
12V DC 125 Apms
-
No-load line speed:
-
3.6m/min single line
-
Mounting base:
-
250*250*18mms
-
Mounting bolt hole type:
-
170*170mms
-
Model:
-
12V 24V
360 Degree 12V Small Mobile Crane Truck Mounted Crane With Safety Crane Hooks
1. The maximum lifting weight: 500 kilograms
2. Crane jib height: adjustable minimum 1.1 meters, maximum 1.95 meters
3. Suspension arm length: hook whereabouts ground and main rod distance 0.9-1.5 meters adjustable, 3 hole positioning pin hole adjustable.
4. Source: 12 v, 24 v, 220 v, 380 v or manual winding optional.
5. Wire diameter: 4.8mm, length of 4.5 m.
| Max Single line lifting capacity | 250kg |
| Max Double line lifting capacity | 500kg |
| Lifting Height max. Std . (base to hook ) | 1940mm |
| Reach Max (from center to rotation ) | 1490mm |
| Rotation (continuous ) with Brake | 360 manual |
| Line speed with No load | 3.6m/min single line |
| Power requirements | 12V DC 125 amps |
| Switch Cable | 4.2m |
| Mounting Base | 250*250*18mm |
| Mounting Bolt Hole Pattern | 170*170mm |
| Finish | Powder Coated |
| Net Weight of Crane | 60kgs |

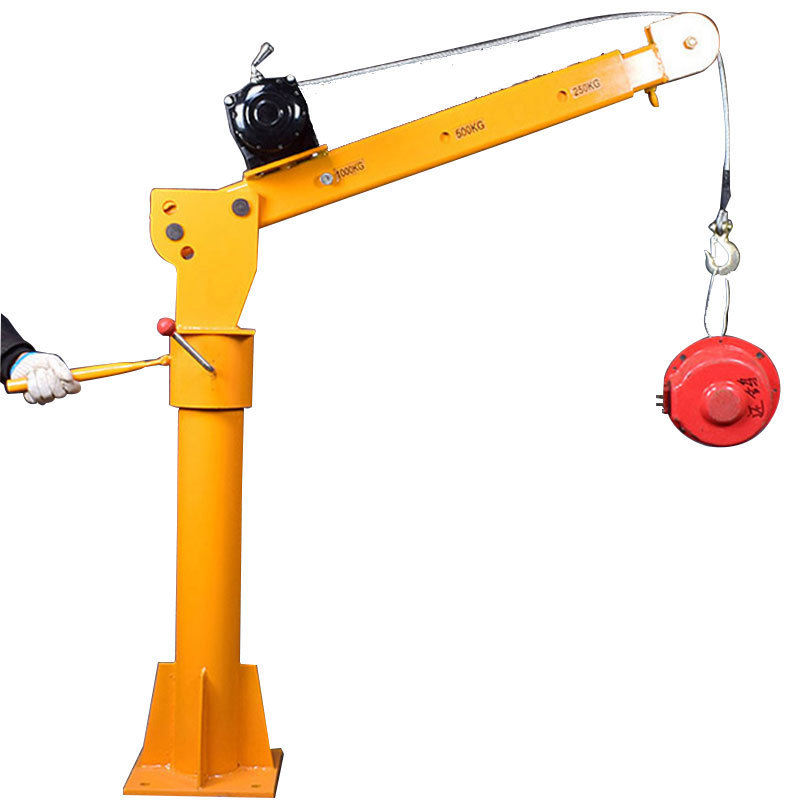

Picture of small crane:
1. When you give us your order, we confirm the quantity,date of delivery and the information of forwarder .
2. We give you a definite date of delivery!
3. We guarantee that the commodity is in conformity to all respects with the quality,
4. After you received our goods, we will send you the Client Service Table,
