Quick Details
Quick Details
-
Range of Spindle Speed(r.p.m):
-
0 - 20000
-
Place of Origin:
-
Tianjin, China

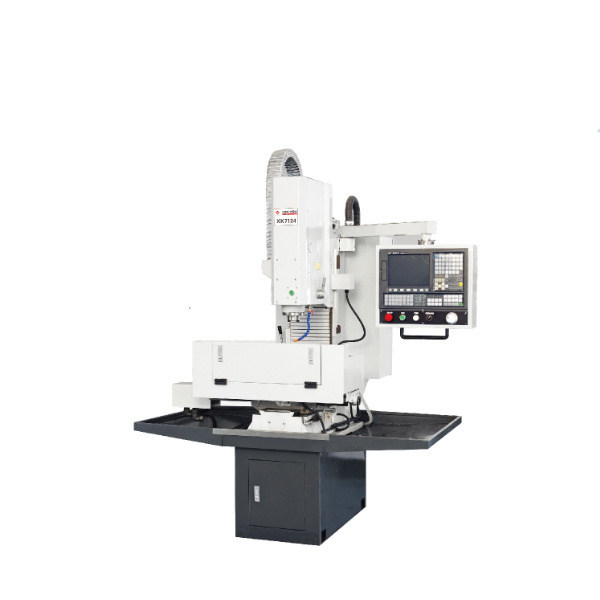

XK7124B Low Cost CNC Milling Machine
Features
4 Pcs Tool stations on worktable with high efficiency. It can finish all process of surface machining, hole machining and tapping by clamping workpiece.
High and low step speeds available and stronger torque for low step speed.
3axis transmission by precision ball leadscrew, servo motor driven.
Two styles of tool change available, manually and pneumatically.
Various famous CNC controllers supplied with for more choice.
Machine stand and machine body are designed separately for easy and flexible installment by user.
| Specification | ||||
| Model | XK7124,7124A | XK7124B | ||
| WORKTABLE | Size of Worktable (L x W)(mm) | 800x240 | 800x240 | |
| 900x240 Optional | 900x240 Optional | |||
| T slot(width x qty x space)(mm) | 16x3x60 | 16x3x60 | ||
| Max. loading on worktable(kg) | 60 | 60 | ||
| TRAVEL | X/Y/Z Axis travel(mm) | 430x280x400 | 430x280x400 | |
| 530x280x400 | 530x280x400 | |||
| Distance between spindle nose and table(mm) | 60-460 | 60-460 | ||
| Distance between spindle center and column(mm) | 297 | 297 | ||
| SPINDLE | Spindle speed(r/min) | 100-4000 | 100-6000 | |
| Spindle taper | BT30 | BT30 | ||
| Tool damping way | Manual/Pneumatic | Manual/Pneumatic | ||
| ATC capacity(optional) | no | 4 pcs Simple ATC | ||
| FEEDING | Feeding speed(mm/min) | 0-2000 | 0-2000 | |
| Rapid feeding speed X,Y,Zaxis(kw) | 6 | 6 | ||
| ACCURACY | Positioning accuracy(mm) | 0.04 | 0.04 | |
| Repeatability accuracy(mm) | 0.02 | 0.02 | ||
| Min.set unit(mm) | 0.01 | 0.01 | ||
| MOTOR | Main motor power(kw) | 1.5(A/C motor) | 2.2/3.7 | |
| Feeding motor power(kw) | 1/1/1 | 1/1/1.5 | ||
| TOOLS | Max. size of tool(mm) | Φ60x175 | Φ60x175 | |
| Max loading weight of tool (kg) | 3.5 | 3.5 | ||
| OTHERS | N.W(include machine stand)(kg) | 900 | 1000 | |
| Overall size(L x W x H)(mm) | 1640x1205x1950(2050) | 1640x1202x1950(2050) | ||
| Packing size(L x W x H)(mm) | 1900x1620x2480(2580) | 1900x1620x2480(2580) | ||
| Loading amount(20") | 3sets | 3sets | ||
| Description and specification given in this catalogue are subject to modification without notice | ||||
