Quick Details
-
Production Capacity:
-
custom
-
Power:
-
1.5KW
-
Dimension(L*W*H):
-
1100x1100x1300mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Aluminum Window Corner Crimping Machine
-
Service:
-
Service Machinery Oversea
-
Application:
-
Aluminium Window fabrication
-
Power supply:
-
380V 50Hz
-
Input Power:
-
1.5KW
-
Profile size:
-
90x120mm
-
Model Number:
-
LZJ02
-
Certification:
-
ce
Quick Details
-
Brand Name:
-
Caretech
-
Voltage:
-
380V
-
Weight:
-
300 kg
-
Production Capacity:
-
custom
-
Power:
-
1.5KW
-
Dimension(L*W*H):
-
1100x1100x1300mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Aluminum Window Corner Crimping Machine
-
Service:
-
Service Machinery Oversea
-
Application:
-
Aluminium Window fabrication
-
Power supply:
-
380V 50Hz
-
Input Power:
-
1.5KW
-
Profile size:
-
90x120mm
-
Model Number:
-
LZJ02
-
Certification:
-
ce

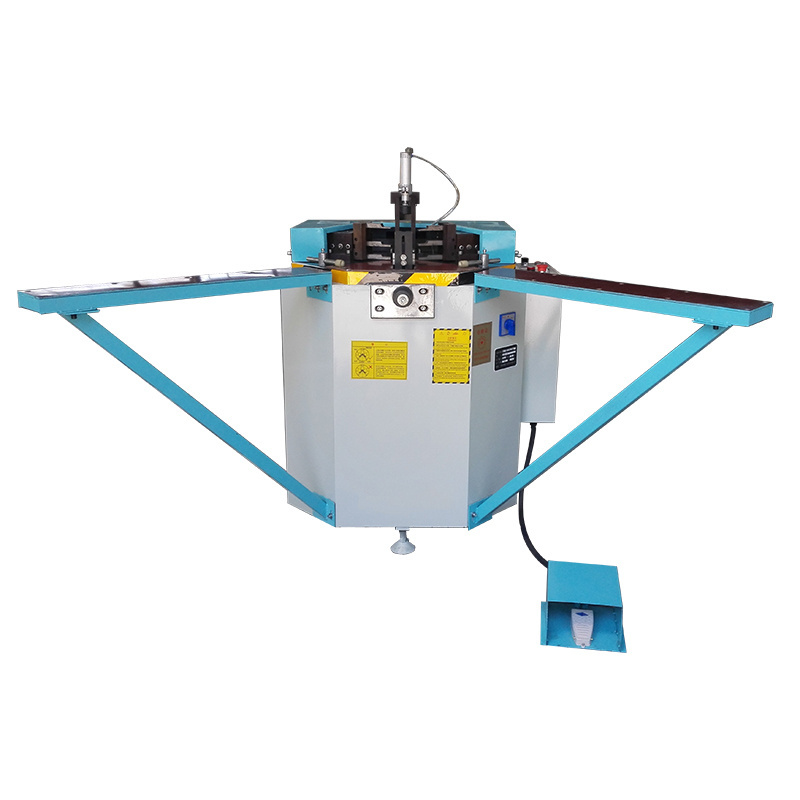

Single head corner crimper aluminum window machine
The corner combining machine is used for 90° fabricating of aluminum window. Adopt new mechanical linkage device, realize complete synchronous corner combining. Up and down adjustable locating device, suitable for various section and sized profile. Left and right punching heads adopt hardness synchronous feeding device, avoid deformation and make sure firm connection.
| Power | 1.5kw |
| Voltage | 380V/50HZ |
| Air pressure | 0.6-0.8MPa |
| Air consumption | 20L/min |
| Profile crimping height | Max.120mm |
| Profile crimping width | Max. 90mm |
| Hydraulic pressure | 15MPa |
| Capability of oil box | 20L |
| Crimping accuracy | ≤0.15mm |
| Dimension | 1100x1100x1300mm |
| Weight | 300kg |
1.Aluminum Window and Door Corner Forming Machine is Used for aluminum frame and sash corner crimping, especially for the high-quality profile, such as thermal bridging profile.
2.Hydraulic system driving, ensure a stable working.
3.Synchronous feeding of the level (left and right side) pushing knives by link with one hydraulic cylinder driving, which avoid the corner deform and enhance the corner connection efficiently.
4.Convenient operation and less error in processing.
5. Distance of tool knife adjustable, as the screw thread connection, easy working for tools
