Quick Details
-
Feature:
-
Fail Safe
-
Voltage:
-
12VDC+
-
Current:
-
110-900mA
-
Working temperature:
-
-10 to 55 Celsius degree
-
Humidity:
-
0 to 95%
-
Induction Distance:
-
8mm
-
Face Plate:
-
205Lx35WX41H(mm)
-
Strike:
-
90Lx25Wx2H(mm)
-
Suitable For:
-
Wooden Door,Glass Door,Metal Door,Glass Door
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ACM
-
Product Name:
-

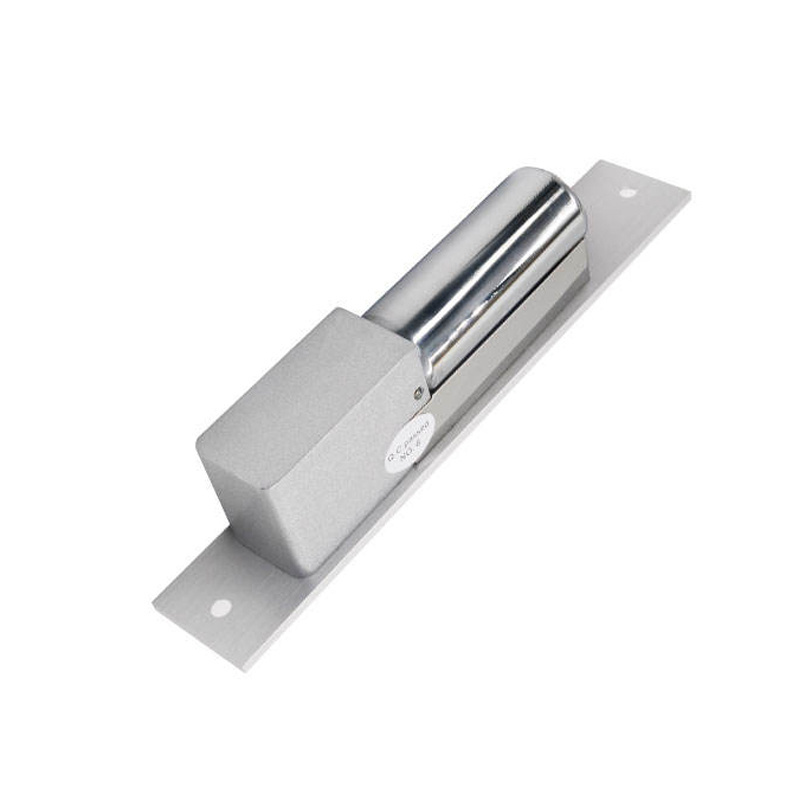

Outdoor Electric Strike Storage Locker Waterproof Magnetic Lock
-
Feature:
-
Fail Safe
-
Voltage:
-
12VDC+
-
Current:
-
110-900mA
-
Working temperature:
-
-10 to 55 Celsius degree
-
Humidity:
-
0 to 95%
-
Induction Distance:
-
8mm
-
Face Plate:
-
205Lx35WX41H(mm)
-
Strike:
-
90Lx25Wx2H(mm)
-
Suitable For:
-
Wooden Door,Glass Door,Metal Door,Glass Door
Product Description
Specification
|
Product Parameter
|
Parameter Description
|
|
|
||
|
Feature
|
Fail Safe
|
|
|
||
|
Face Plate
|
205Lx35WX41H(mm)
|
|
|
||
|
Strike
|
90Lx25Wx2H(mm)
|
|
|
||
|
Voltage
|
12VDC+
|
|
|
||
|
Start Current
|
900mA
|
|
|
||
|
Standby Current
|
110mA
|
|
|
||
|
Solid Bolt
|
polishing housing, 800Kg Holding Force
|
|
|
||
|
Suitable For
|
Wooden Door,Glass Door,Metal Door
|
|
|
||
|
Autolock Time Delay
|
0,3,6,9sec
|
|
|
||
|
Signal Output
|
Door status Output,NC/COM
|
|
|
||
|
Surface Temp
|
Low Temperature
|
|
|
||
|
Surface Temp
|
8mm
|
|
|
||
|
Operating Temperature
|
-10~+55℃(14~131F)
|
|
|
||
|
Operating Humidity
|
0~90%(non-condensing)
|
|
|
||
|
Special Designed
|
Tested to 500000 operations
|
|
|
||
|
Face Place Material
|
High Aluminum
|
|
|
||
|
Weight
|
0.72kg
|
|
|
||
