Quick Details
-
Motor:
-
310kw/450kW Permanent magnet synchronous
-
Battery:
-
282kWh Lithium Battery
-
Vehicle Size:
-
9000*3850*4380mm
-
Dump Box Size:
-
30 CBM
-
Drive Mode:
-
6x4 Drive
-
Gross Vehicle Weight (T):
-
93Tons
-
Payload Capacity/Kerb Weight(T):
-
60Tons/33Tons
-
Mileage:
-
150km
-
Ground Clearance (mm):
-
315mm
Quick Details
-
Brand Name:
-
RisunDK
-
Place of Origin:
-
Jiangsu, China
-
Truck Type:
-
Electric dump truck for mining
-
Motor:
-
310kw/450kW Permanent magnet synchronous
-
Battery:
-
282kWh Lithium Battery
-
Vehicle Size:
-
9000*3850*4380mm
-
Dump Box Size:
-
30 CBM
-
Drive Mode:
-
6x4 Drive
-
Gross Vehicle Weight (T):
-
93Tons
-
Payload Capacity/Kerb Weight(T):
-
60Tons/33Tons
-
Mileage:
-
150km
-
Ground Clearance (mm):
-
315mm

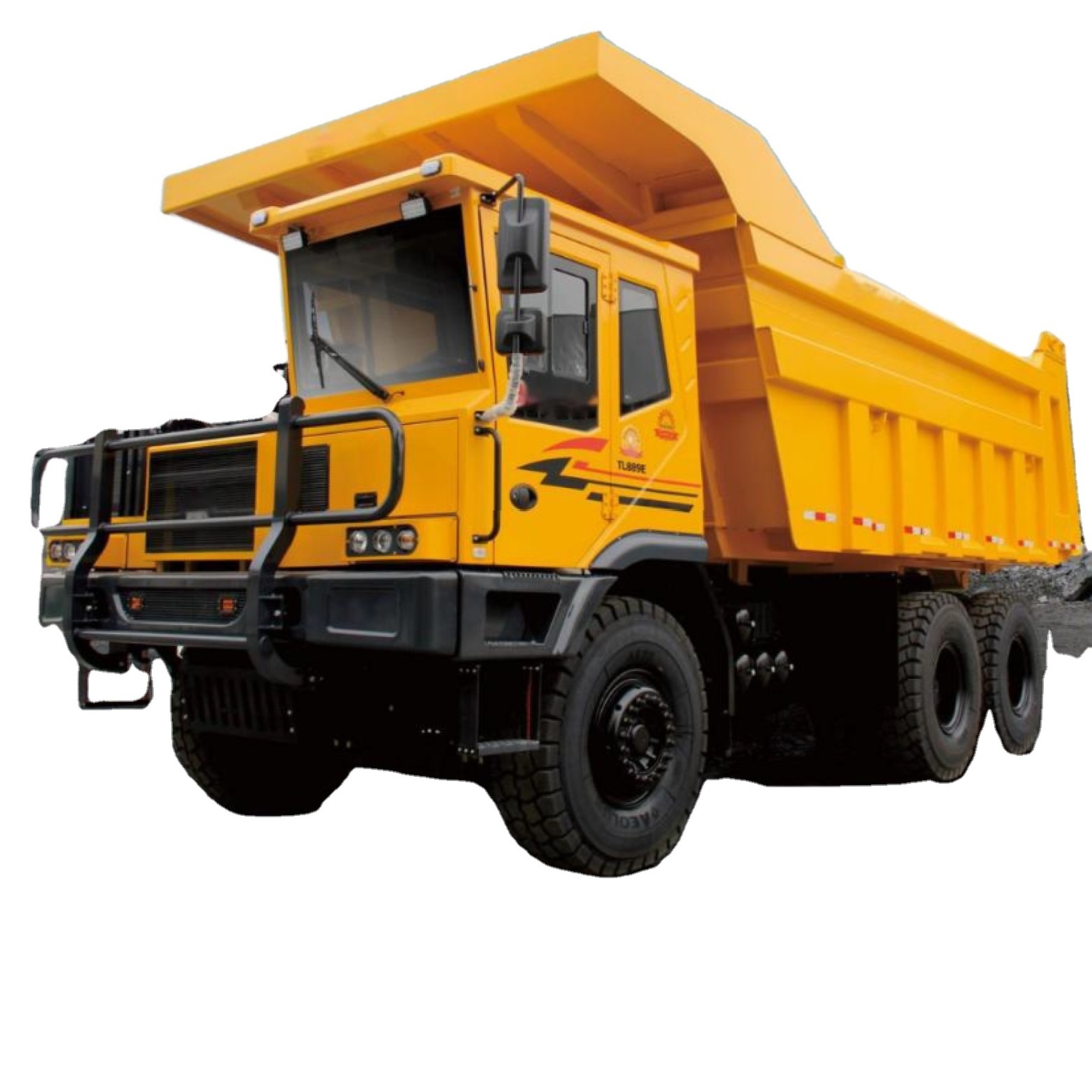

93Ton 310kW-450kW Heavy Duty Truck Pure Electric Mining Dump Truck for Mining Yard Electric Mining Dump Truck 93tons 30CBM 6x4 drive Permanent magnet synchronous 282kWh Lithium Battery
Advantage:
More than 20 years experience in heavy duty equipments and vehicles designing and modification
Both power and dump box size can be customized according to your equipment / vehicle;
Will design structure and fixtures according to your real size;
Very strict structure and driving test;
Technical Data:
| Item | Data |
| Vehicle Size (mm):LxWxH | 9169*3670*3975 |
| Drive Mode | 6*4 |
| Kerb Weight (Ton) | 33 |
| Payload Capacity (Ton) | 60 |
| Gross Vehicle Weight (Ton) | 93 |
| Minimum Turning Radius (m) | 12 |
| Front Axle/Rear Axe cargo carrying capacity (Ton) | 20/35 |
| Wheelbase (mm) | 3775+1550 |
| Lifting system | Hyva single lift cylinder |
| Dump Box Volume (m3) | 30 CBM (particulates) |
| Battery (kWh) | 282kWh |
| Motor Power (Rated/Peak) | 310/450 kW |
| Transmission | Two speed reducer |
| Max Speed | 45km/h |
| Full load maximum climbing gradient | 14% |
| Charging Time | 56 minutes |
|
Running Time
(An average slope of 8% can achieve balanced power consumption) |
24 Hours |
Main Application: Pure Electric Dump Truck, for mining yard, construction site.
Remark:
1. Truck power, dump box size can be customized
2. Battery dimension can be customized
3. Lithium battery is widely used as replacement battery for lead acid battery
(5). Heating wires attached on cells will ensure battery can be used in low temperature places.
