TUYA Wireless WIFI app rfid card gate access control digital access control keypad IP66 waterproof

TUYA Wireless WIFI app rfid card gate access control digital access control keypad IP66 waterproof

FOB Reference Price: Get Latest Price

≥2 Pieces

US $20

≥10 Pieces

US $18

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: XPOTECH

Model Number:: T12WF

Type:: Card and Code

Waterproof:: Yes

Unlock:: App, Password, Card

Auto Lock:: Yes

Communication:: WIFI

App name:: Tuya

Warranty:: 1 Year

Data Storage Options:: Cloud

Application:: Indoor or outdoor

Password:: Set via tuya app

Quick Details

Special Features:: Waterproof / Weatherproof

Customized support:: Customized logo

Place of Origin:: Guangdong, China

Brand Name:: XPOTECH

Model Number:: T12WF

Type:: Card and Code

Waterproof:: Yes

Unlock:: App, Password, Card

Auto Lock:: Yes

Communication:: WIFI

App name:: Tuya

Warranty:: 1 Year

Data Storage Options:: Cloud

Application:: Indoor or outdoor

Password:: Set via tuya app

Recommend Products

BLAC1 Card Access Control

Non Waterproof

IC Card&Code&APP

200 IC Card Capacity

150 Custom Code

BLAC2 Card Access Control

IP66 Waterproof

IC Card&Code &APP

20000 IC Card Capacity

150 Custom Code

BLAC2-F Fingerprint Access Control

IP66 Waterproof

Fingerprint&IC Card&Code &APP

100 Fingerprint; 20000 IC Card Capacity

150 Custom Code

BL08-F Fingerprint Lock

Fingerprint&IC Card&Code&APP&Keys

100 Fingerprint; 100 IC Card Capacity

150 Custom Code

BL06 RFID Card Lock

IC Card&Code&APP&Keys

200 IC Card Capacity

150 Custom Code

SCL08 Multifunction Cabinet Lock

SCL08-F: 50 fingerprint, 200 code

SCL08-C: 15 Card capacity

SCL08-B: APP, 150 code, 200 card

Products Description

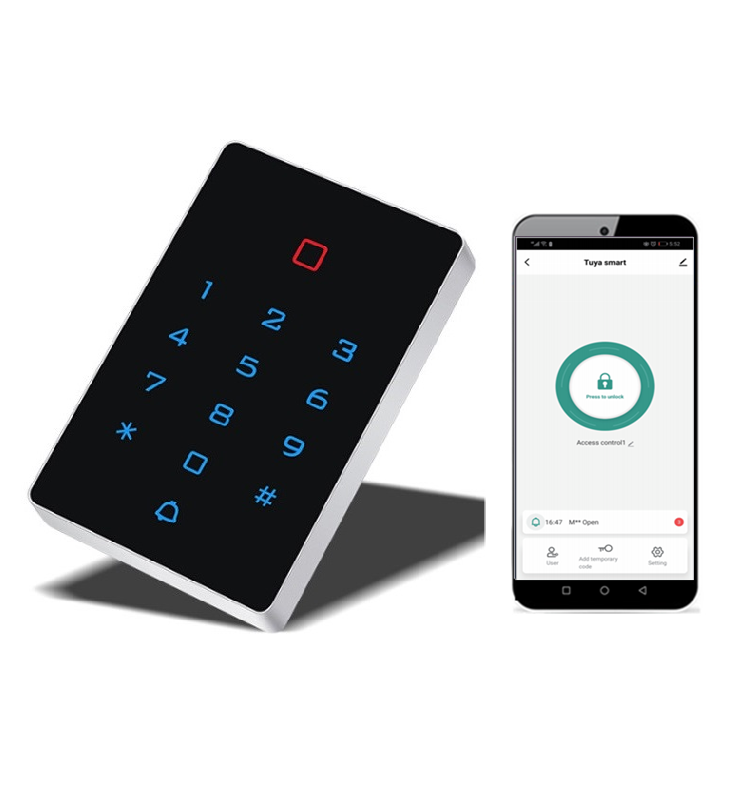

T12-WF is the latest WIFI Enabled Door Access and Entry Control System Provides Access by Using your smartphone WIFI connection.

It is the new version, which enables remotely unlock and remotely send password, and remotely checked records by smart phone app Tuya

It is with touch keypad and waterproof, the identification ways include ID card, password and smartphone unlock doors/gates.

This access control reader is very easy to install. These are long range units that allows you to unlock your door remotely when you are far away from your home(using an app).Your phone is your key. Simply pair your phone with the smart access control.

Product Paramenters

Waterproof	IP68 waterproof
Communication	WIFI
Unlock Ways	Smart phone app, ID card, Password,ID Card+Password; IC card optional
User Capacity	2,000
Tuya APP function	Add User; Press to unlock remotely, Press to lock remotely; Add temporary code; Set Code effective and invalid time; Check logs; Alarm logs; Data backup
Standalone access control mode	The door will be locked automatically after open the door normally
Relay toggle mode	The door will not be locked automatically.To lock the door, the user has to read the card or press the exit button.
Data backup in&output	The device can send/receive the data to/from external device
Working Voltage：	DC12-24V
Standby Current	≤30mA
Reading Distance	1～3cm
Working Temperature	-40℃～60℃
Working Humidity	10%～90%
Lock output load	≤3A
Door Relay time	5S default, 0～99S adjustable
Ultra-low Power	Standby current is less than 30mA
Wiegand Interface	WG26 or WG34 input and output
Searching time	Less than 0.1s after reading card
Backlight keypad	Operate easily at night
Doorbell interface	Support external wired doorbell

Installation Instructions

Color	ID	Description
Green	D0	Wiegand Input(Wiegand Output in Card Reader Mode)
White	D1	Wiegand Input(Wiegand Output in Card Reader Mode)
Yellow	OPEN	Exit Button input terminal
Red	+12V	12V + DC Regulated Power Input
Black	GND	12V - DC Regulated Power Input
Blue	NO	Relay normally-on terminal
Purple	COM	Relay Public terminal
Orange	NC	Relay normally-off terminal
Pink	BELL_A	Doorbell button one terminal
Pink	BELL_B	Doorbell button to the other terminal
