- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Industrial Machinery
-
Model:
-
XSHF-40AB
-
Voltage:
-
220/380V
-
Weight:
-
45kg
-
Feature:
-
High Efficiency
-
Output current:
-
400-1800A
-
Power:
-
40KW
-
Time setting:
-
1-99S
-
Function:
-
Welding Quenching Melting
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Weight (KG):
-
45
-
Product name:
-

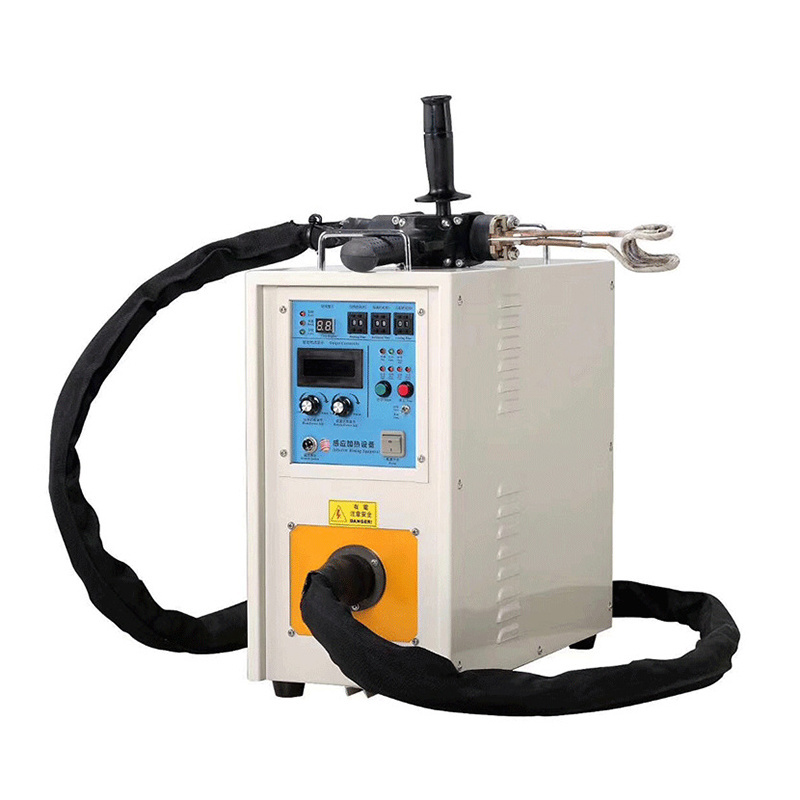

High-Frequency Induction Welder
-
Application:
-
Industrial Machinery
-
Model:
-
XSHF-40AB
-
Voltage:
-
220/380V
-
Weight:
-
45kg
-
Feature:
-
High Efficiency
-
Output current:
-
400-1800A
-
Power:
-
40KW
-
Time setting:
-
1-99S
-
Function:
-
Welding Quenching Melting
Product Description
Feature
The principle of high-frequency induction heating welding is to use high-frequency alternating current to flow towards a conductor (usually a copper tube) that is curled into a circular shape, generating a magnetic beam. When the metal is placed inside, the magnetic beam will penetrate the metal body and generate eddy currents (rotating currents) in the direction of self rotation with the magnetic beam. This induced current generates heat under the influence of eddy currents, and this heating method is induction heating. Therefore, heated objects such as metals can be heated in a non-contact state. At this point, the characteristic of eddy current is the concentrated induction heating on the object close to the coil, which is stronger on the surface and weaker inside the object. Using this principle, the necessary areas of the heated object are centrally heated to achieve instantaneous heating effect, which relatively increases production and workload.
Specification
Application
1. Induction heating brazing. Copper pipes are connected to each other, with solder added in the middle. The solder in the middle is heated to melt, and then cooled and solidified to achieve the welding effect.
2. Quenching. Heat the workpiece to a certain high temperature, then use water, oil or air to rapidly cool it and let the surface of the workpiece harden.
3. Metal melting. Suitable for the extraction and melting of small amounts of metals, it uses high-frequency heating with fast speed and is the best choice for small amounts of metals.
4. Annealing. Heat the workpiece and gradually cool it to reduce the hardness of the metal workpiece, increase plasticity, improve cutting performance, and stabilize the size.
More Product
Packing & Delivery
Packaging: pack one pump in one plastic bag,then put it in one thick paper carton, then heap up them on the plastic pallet, wrap the plastic pallet and cartons with plastic membrane then bind the cartons with plastic packing belt.
Lead time:about 10-20 days after receipt your 30%T/T for deposit
Services
1. Within one week after receipt of the goods, if customer use the products in correct method, and find any problem of performance or construction with obvious evidence,we will be responsible for replacement or other discussing solution between us.
2. But if customer using method are not correct, or customer disassemble our products privately, we will not responsible for any problem or defective points of products.
3. If you meet any questions of installation or debugging, please inquiry us anytime, our Engineer will provide technical support in time, or we will help you to resolve the technical failure through online video.
4.Any damage from transportation, we will solve the problem according to the responsibility standard of INCOTERMS.
5. Warranty period: ONE YEAR
