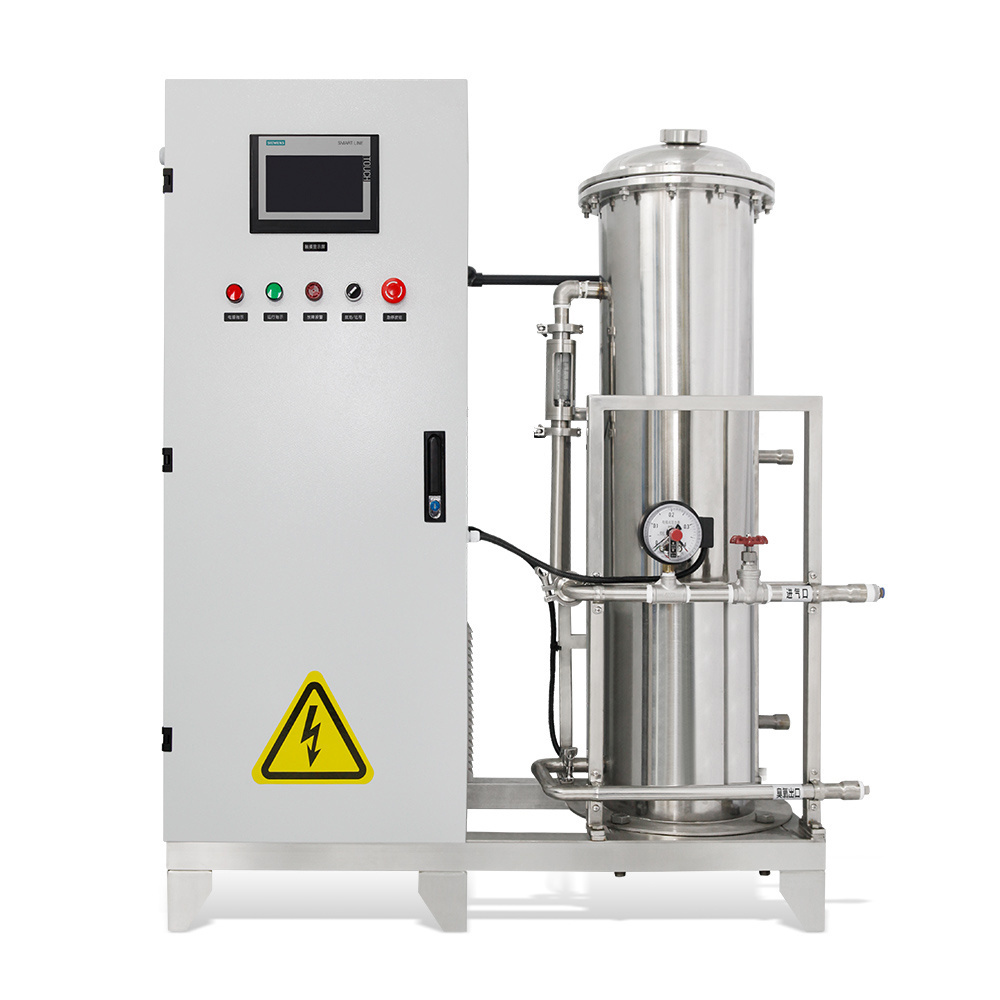

Flygoo Large Ozonizer for Water Treatment Environmental Protection Equipment 1kg Industrial Ozone Generator
Flygoo Large Ozonizer for Water Treatment Environmental Protection Equipment 1kg Industrial Ozone Generator
Flygoo Large Ozonizer for Water Treatment Environmental Protection Equipment 1kg Industrial Ozone Generator
Flygoo Large Ozonizer for Water Treatment Environmental Protection Equipment 1kg Industrial Ozone Generator
Flygoo Large Ozonizer for Water Treatment Environmental Protection Equipment 1kg Industrial Ozone Generator
Flygoo Large Ozonizer for Water Treatment Environmental Protection Equipment 1kg Industrial Ozone Generator
Flygoo Large Ozonizer for Water Treatment Environmental Protection Equipment 1kg Industrial Ozone Generator
Flygoo Large Ozonizer for Water Treatment Environmental Protection Equipment 1kg Industrial Ozone Generator

Flygoo Large Ozonizer for Water Treatment Environmental Protection Equipment 1kg Industrial Ozone Generator

FOB Reference Price: Get Latest Price
≥2 Pieces
US $10500
≥5 Pieces
US $9500
≥10 Pieces
US $8500
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Weight:
380kg
Size:
1200*500*1480mm
Power:
10.5
Weight (KG):
300 kg
Ozone Output:
1KG/H
Ozone Technology:
high voltage
Ozone Tube Material:
Quartz Glass
Cooling way:
Water cooling
Gas Source:
Pury Oxygen/Dry Clean Air
External Case Materials:
Stainless steel 304
Frequency:
50-60Hz
Voltage:
380V / 415V
Application:
Air and Water Purification

Quick Details

Place of Origin:
Guangdong, China
Brand Name:
Flygoo
Material:
carton case
Weight:
380kg
Size:
1200*500*1480mm
Power:
10.5
Weight (KG):
300 kg
Ozone Output:
1KG/H
Ozone Technology:
high voltage
Ozone Tube Material:
Quartz Glass
Cooling way:
Water cooling
Gas Source:
Pury Oxygen/Dry Clean Air
External Case Materials:
Stainless steel 304
Frequency:
50-60Hz
Voltage:
380V / 415V
Application:
Air and Water Purification
Flygoo Large Ozonizer for Water Treatment Environmental Protection Equipment 1kg Industrial Ozone Generator
Product Description
Flygoo large ozone generators utilize automatic control system, HMI control, Chinese-English LCD display, and real-time monitoring of system status and operation parameters. The automatic control system can be designed and configured according to the site requirement, and the PLC operation system is from Siemen.

1000 G/Hr oxygen-fed ozone generator typically comprises an ozone generator, an PSA oxygen generator, a refrigerated air dryer, an screw air compressor, and a storage tank.
Specification
1000G Oxygen Feed Ozone Generator
Ozone Model
FG-OF-1000G
Cooling Water Flow Rate
2.0-2.5m3/h
Weight
550kg
Ozone Output
1000g/h
Electric
380V/50(60)Hz/3PH
Ozone Concentration
80-120mg/L
Power Consumption
7.5 kw
Dimension
1200*800*1900mm
PSA Oxygen Generator
Oxygen Model
FG-OX
Power Consumption
/
Weight
/
Dimension
1950*1100*2430mm
Oxygen Flow Rate
8m3/h
Oxygen Purity
92-94%
Adsorption Air Dryer
Model
FG-20
Power Consumption
200w
Weight
190kg
Dimension
1000*430*1850mm
Air flow rate
3.8m3/min
Gas source dew point
≤-40℃
Air Storage Tank
Model
FG-C-0.6
Working pressure
1Mpa
Weight
100kg
Dimension
¢600*1500mm
Screw Air Compressor
Model
FG-30A
Power Consumption
22kw
Weight
600kg
Dimension
800*700*930mm
Air flow rate
3.6m3/min
Method
Screw Type
Water Chiller
Model
FG-DH
Power Consumption
3.5kw
Weight
150kg
Dimension
830*650*1170mm
Refrigerating output
8.2kw,3.5p
Refrigerant
R410A
Feature

● Siemens PLC control
Standard 4 ~ 20mA signal control
Low temperature, suitable for continuous operation
Integrated single loop water cooling system for high efficiency cooling
Ozone output adjustable, and alarm when there is no ozone, backflow water or overheated.
Touch screen control system, intelligent design makes the operation simple (optional for lower configuration non intelligent control system with lower price).
● Over-Temperature Protection
● Over-Voltage Protection
System Design
