• We feel really appreciated for you to watch our GDSX-200 portable octane tester, it’sreally our great pleasure for having u as our client.
• GDSX-200 portable octane tester adopts International advanced integrated circuit technology and Precision inductive components, its various performance and indicators all reached or overreached the domestic advanced level It can be fast, convenient, precise to test the octane value of the gasoline without any damage of the sample.
• Suitable for the laboratory, also can be used in field test, instrument adopts artificial intelligence technology, strong function and easy to use.

Operating steps of portable octane tester

• (1) Open the box, take out the instrument and place the testing components on a horizontal table. The position of host machine is unlimited which can be taken in hands or placed on a table.
• (2) Ensure that no other impurity sediment or oil slick in the sensor container.
• (3) Use glass cylinder to measure 75~100ml sample liquid, then, pour it into the detection container, until detection container was completely full.
• (4) Connect the sensor plug with the host machine. (Connector’s red point should be upward, insert the red dot which corresponds to the centre jack.)
• (3) Press the "OK" button to open the instrument, the instrument automatically enter into the main screen, then enter into measuring octane value number interface, press“ Up" or "down" button for choosing, ,then, Click on the "OK" button to enter into the oil pattern interface, then press the "up" or "down" button to Choose the measured oil’s model, Click the "ok" button to enter into” Please confirm the injection sample preparing test page”, then, Click the "ok" button to proceed the oil testing.
• (4) The instrument shows measuring data after twenty seconds, if testing containers got no oil sample; the display will exceed lower line, If got, It will show the testing value.
• (5) Measured data can be preserved, enter the main screen’s printing option after saving the measured data. The measured data can be printed directly by the micro Printer.
• (6) If the sample liquid temperature differs from ambient temperature, you can wait for a moment until the liquid temperature gradually adjustable. At present, measured data can be recorded. If the sample reference value exceeds the instrument measuring range, the instrument will display “exceeds the lower limit” or “exceeds the upper limit”, after the measurement, user can shut off the power. If the instrument will automatically shut down, if no operation or no press any key within 1 minute.
• (7) Pour out the sample liquid, using ethyl ether or gasoline to clean the machine, then, Use fabric to wipe it clean, No dust should be kept.

Configuration list

Cautions of portable octane tester

1 .General note

• Avoid shaking the instruments and probe;
• Avoid instruments in too damp environment;
• When plugging and pulling the probe, knead mobile cover and move it along the axis line. In order to avoid damaging the probe cable core, do not rotating the probe;
• Oil and dust will make the probe line aging and fracture gradually, after using, keep the cable clean.

2 .Casing cleaning

• Alcohol diluent is corrosive for the casing, so use a small amount of water to wipe it.

3 .Stocking terms

• Avoid vibration, strong magnetic field, corrosive medium and wet dust, store in room temperature

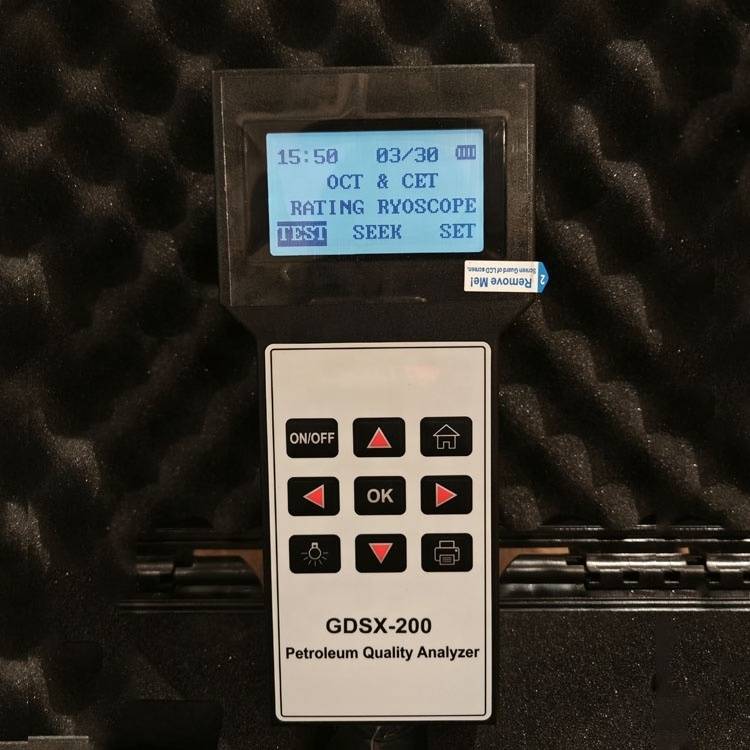

Image Display

If you have any questions about this Backlit Display Portable Oil Product Quality Analyzer Octane Tester for Octane Number Gasoline instrument or the instruction, please contact us in time. We will serve you wholeheartedly!
