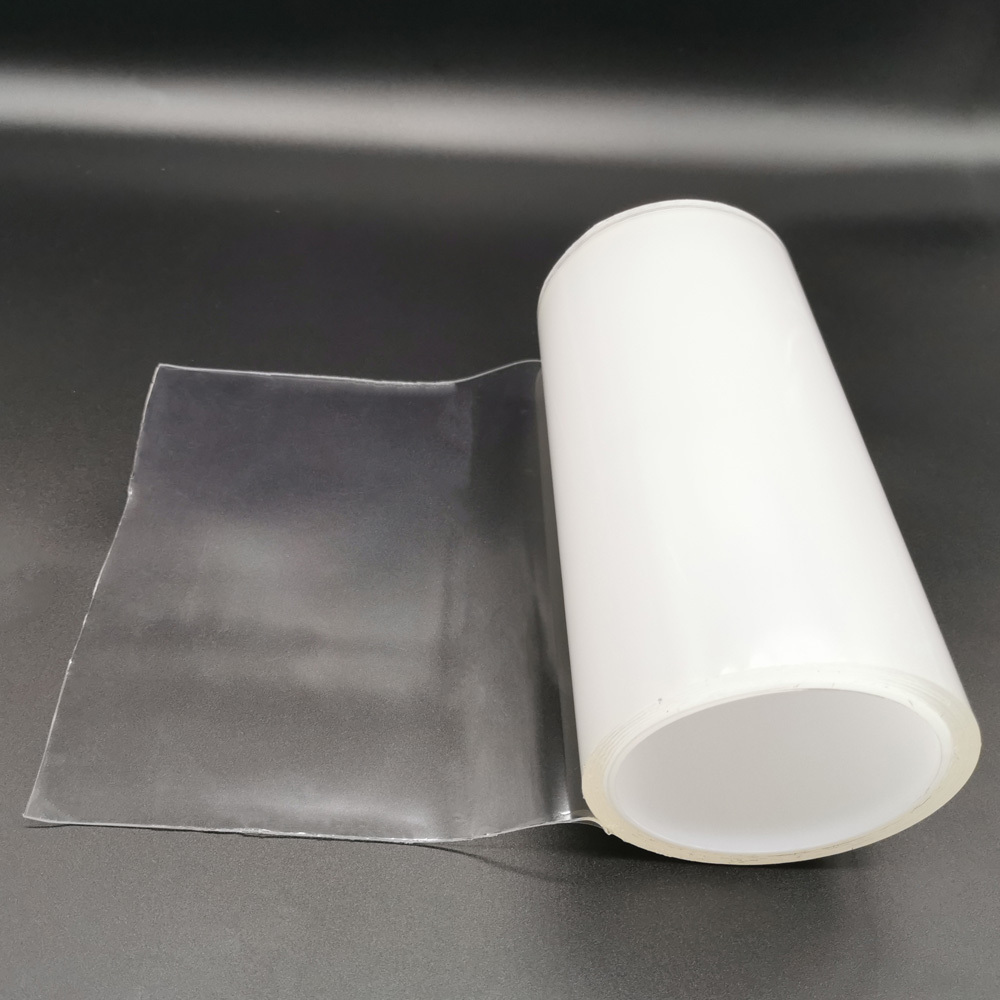

Double Sided Clear Acrylic Foam Adhesive Tape For Glass Curtain Metal Bonding

Double Sided Clear Acrylic Foam Adhesive Tape For Glass Curtain Metal Bonding

FOB Reference Price: Get Latest Price

≥100 Rolls

US $1.21

≥1000 Rolls

US $1.16

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Design Printing:: No printing

Material:: PE

Feature:: Waterproof

Use:: Bag Sealing

Place of Origin:: Guangdong, China

Brand Name:: HX

Model Number:: HX-2020

Product name:: Double Sided Clear Acrylic Foam Adhesive Tape

color of the foam:: Clear

Tape thickness:: 2mm

dimensions:: Foam Tape can be customized

Certificates:: BSCI

Tape Length:: 1.02m*200m (semi-finished products)

Sample:: Freely

Industry:: Automotive and electronics

Quick Details

Adhesive:: Acrylic

Adhesive Side:: Double Sided

Adhesive Type:: Pressure Sensitive

Design Printing:: No printing

Material:: PE

Feature:: Waterproof

Use:: Bag Sealing

Place of Origin:: Guangdong, China

Brand Name:: HX

Model Number:: HX-2020

Product name:: Double Sided Clear Acrylic Foam Adhesive Tape

color of the foam:: Clear

Tape thickness:: 2mm

dimensions:: Foam Tape can be customized

Certificates:: BSCI

Tape Length:: 1.02m*200m (semi-finished products)

Sample:: Freely

Industry:: Automotive and electronics

Description

Acrylic foam tape is specifically designed for good adhesion to metal, glass and plastics such as polycarbonate and acrylic.There are also many thicknesses,mainly 0.5mm, 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm,3.0mm. Can be processed into various specifications according to customer requirements,and can also be die-cutting and punched into various shapes. To suit the different requirerments of different designs and products,the colors of glue are white, gray and transparent.

White Acrylic Foam Tape

Transparent Acrylic Foam Tape

Gray Acrylic Foam Tape

Application

1. For adhering to the irregular surface, fixing the nameplate, auto mirror, and logos

2. Often used in the automobile industry, such as door sealing strips, car decorations, pedal and metal boards

3. Suitable for the fixation of inner structure in the glass combination like the glass curtain wall and soundproof wall etc

4. For joining transparent material

5. Metal, glass and high surface energy (HSE) substrates

Feature

Very High Bonding foam tape

1. Excellent chemical resistance, buffer, sealing 2. High adhesion to plastic, metal, lumber, paper, etc. 3. Water-proof, shock-proof, sound-proof, moisture-proof 4. 160 degree heat resistant performance 5. Good durability designed for permanent bonding

Parameters

Item	Unit	Test way	Technical Data
Thickness	mm		1
Initial tack	Ball No.	GB-4852-1984	8 (inside)
Initial tack	Ball No.	GB-4852-1984		10 (outside)
180° peel strength	N/25mm	GB-2792-1988	0.5 (inside)
180° peel strength	N/25mm	GB-2792-1988		0.45 (outside)
Pressure	15 psi (100KPa)
Duration	24 months
Test condition	Temperature 23±2°C, relative temperature 65±5°C
