Quick Details
-
Host Water proof:
-
IP65.
-
Host Screen size:
-
5 inch.
-
Host Volume:
-
195*140*45mm
-
Host Weight:
-
0.8kg
-
printer:
-
Supports micro printers
-
Working temperature:
-
-10℃~40℃
Quick Details
-
Power:
-
Electronic
-
Place of Origin:
-
Hebei, China
-
Product name:
-
automatic digital display resiliometer
-
Host Water proof:
-
IP65.
-
Host Screen size:
-
5 inch.
-
Host Volume:
-
195*140*45mm
-
Host Weight:
-
0.8kg
-
printer:
-
Supports micro printers
-
Working temperature:
-
-10℃~40℃

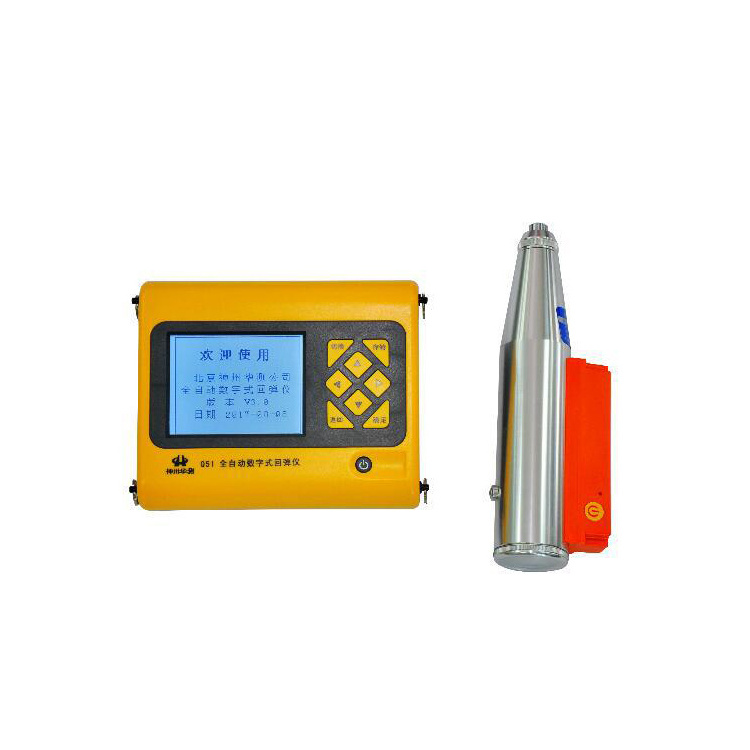

Automatic digital ultrasonic Rebound Concrete Test Hammer display resiliometer
|
Name |
automatic digital display resiliometer |
|
Model |
GTJ-HTY |
|
Host Parameters |
Water proof: IP65 Screen size: 5 inch Volume: 195×140×45mm Weight: 0.8kg |
|
The consistency of the sample displayed value: ±0.5 |
|
|
Sensor:MOS |
|
|
storage: 240testing result |
|
|
Power :lithium battery |
|
|
Mechanical resiliometer |
Standard impant energy: 2.207J |
|
Spring stiffness : 785N/m |
|
|
Length of spring stretch : 75mm |
|
|
The rebound values calibrated on steel anvil : 80±2 |
|
|
Weight : 1kg |
|
|
printer |
Supports micro printers |
|
Working temperature |
-10℃~40℃ |
|
Package |
Texture: plastic Volume: 420×140×335mm Weight: 6kg |
Application:
GTJ-HYT Automatic digital display resiliometer is an instrument for non-destructive testing and evaluation of the compressive strength of hardened concrete in building structures. It can detect and record parameters such as rebound value, carbonization depth value, angle, test surface and so on. The strength estimation result of the member can be immediately given after the detection is completed.
Advantage:
1. It is designed with three anti-shells, waterproof, dustproof and shockproof.
2. Adopt new MOS image sensor to subvert the traditional signal acquisition method, the data is accurate and reliable
3. The rebound value is displayed in the form of numbers and scales, and the indication values are consistent.
4. The operation is simple and convenient. According to the component management data, the strength is estimated, and the carbonization value can be recorded on site.
5. One main machine can be equipped with multiple mechanical rebound hammers to ensure continuous inspection.
6. The software is powerful, can be built with a variety of measurement standards, and export a variety of test reports.
7. Optional printer can print test data directly on site.
