Quick Details
-
Product name:
-
BNC Type RF Coaxial Connectors
-
Material:
-
Copper
-
Impedance:
-
50 ohm
-
Frequency Range:
-
DC-4GHz
-
Voltage Rating:
-
170V
-
Insulation Resistance:
-
10,000Mohms
-
RF Leakage:
-
125dB @3GHz Min.
-
Temperature Range:
-
-55℃-+155℃(PE cable -40℃-+85℃)
-
Pin Contact:
-
Gold or Silver-plated Brass
-
Socket Contact:
-
Gold-plated Beryllium copper
Quick Details
-
Type:
-
BNC
-
Application:
-
RF
-
Place of Origin:
-
China
-
Product name:
-
BNC Type RF Coaxial Connectors
-
Material:
-
Copper
-
Impedance:
-
50 ohm
-
Frequency Range:
-
DC-4GHz
-
Voltage Rating:
-
170V
-
Insulation Resistance:
-
10,000Mohms
-
RF Leakage:
-
125dB @3GHz Min.
-
Temperature Range:
-
-55℃-+155℃(PE cable -40℃-+85℃)
-
Pin Contact:
-
Gold or Silver-plated Brass
-
Socket Contact:
-
Gold-plated Beryllium copper

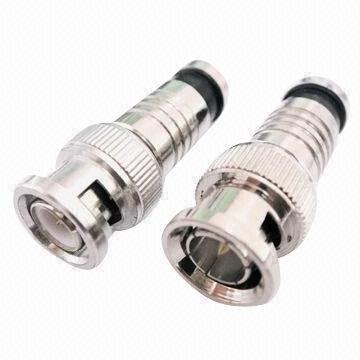

Male Gender and BNC Type compression RG59 BNC connector
TECHNICAL CHARACTERISTICS
1)Temp.range: -65∼+165°C (PE Cable -40∼+85°C)
2)Vibration: MIL-STD-202, Method 213
3)Impedance: 50Ω, 75Ω
4)Frequency Range: DC∼4GHz
5)Working Voltage: 500V max
6)Withstand Voltage: 1500V rms
7)Contact resistance
(a)Center Contact: ≤ 1.5 mΩ
(b)Outer Contact: ≤ 1 mΩ
8)Insulation resistance: ≤ 5000 MΩ
9)VSWR
(a)Straight: ≤ 1.22
(b)Right angle: ≤ 1.30
10)Durability(mating): ≥500cycles
MATERIAL & PLATING
Shell brass nickel plated
contact pin brass gold or silver plated
socket beryllium gold or silver plated
elastic contact beryllium gold or silver plated
insulator PTFE
crimping suite copper alloy nickel plated
o-ring sealing silastic
APPLICABLE STANDARD
MIL-C-39012;
CECC 22120;
IEC 60169-8.
