Quick Details
-
Dimension(L*W*H):
-
L1200*W1000*H1600MM
-
Weight:
-
380
-
Power (kW):
-
1KW
-
Product name:
-
3D Soft Rubber Logo Label Patch machine
-
Keywords:
-
PVC Rubber Machine
-
Application:
-
PVC Rubber Label/Logo/Patch
-
Usage:
-
PVC/SILICONE/INK
-
Type:
-
full automatic
-
Needle:
-
4/6/8/12/24
-
Work Journey:
-
L600*W400*H120
-
Screw Design:
-
ball screw
-
Capacity:
-
2000-3000PCS/Day
-
Whatsapp/wechat:
-
86 13662981682
-
Marketing Type:
-
New Product 2020
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Do Hearts
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
L1200*W1000*H1600MM
-
Weight:
-
380
-
Power (kW):
-
1KW
-
Product name:
-
3D Soft Rubber Logo Label Patch machine
-
Keywords:
-
PVC Rubber Machine
-
Application:
-
PVC Rubber Label/Logo/Patch
-
Usage:
-
PVC/SILICONE/INK
-
Type:
-
full automatic
-
Needle:
-
4/6/8/12/24
-
Work Journey:
-
L600*W400*H120
-
Screw Design:
-
ball screw
-
Capacity:
-
2000-3000PCS/Day
-
Whatsapp/wechat:
-
86 13662981682
-
Marketing Type:
-
New Product 2020

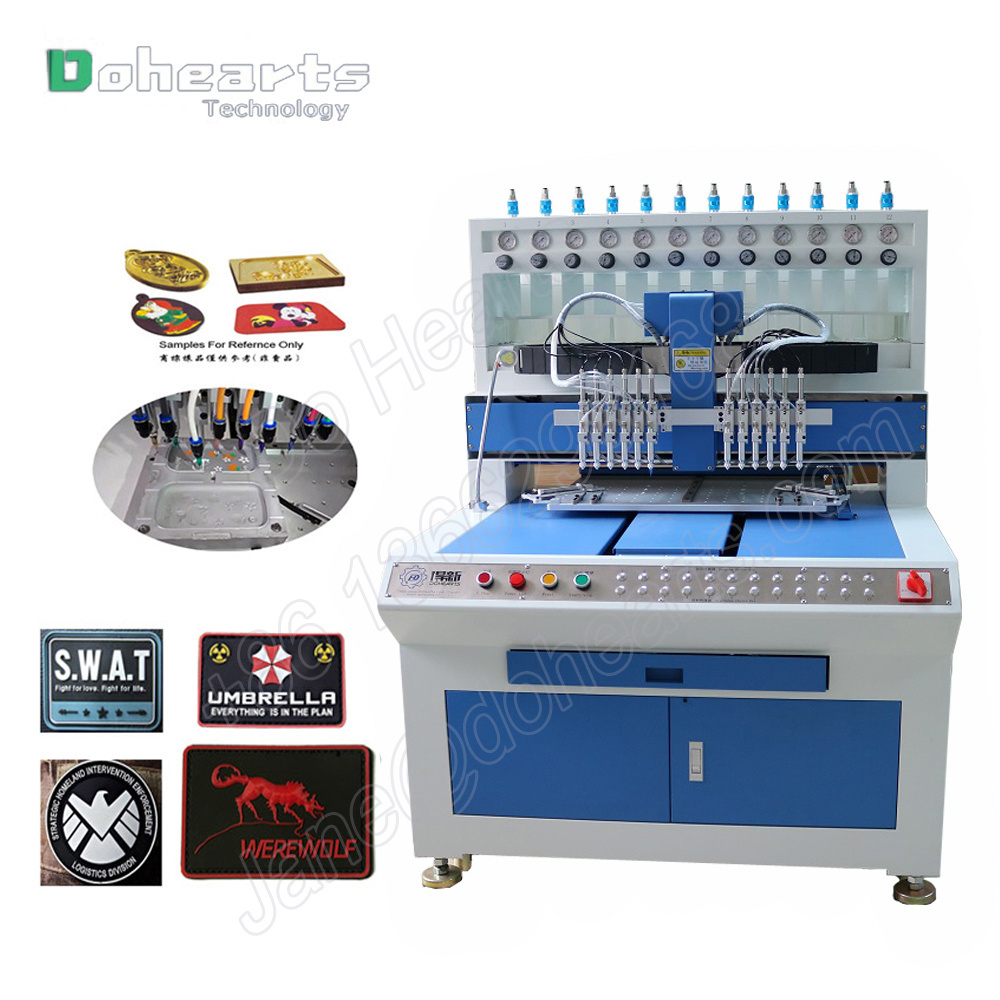

3D Soft Rubber Logo Label Patch making machine is used for the soft PVC product, such as: pvc gifts / Photo frame / key chain / luggage tag / key covers / lighter covers / mouse mat / hair clip / brooch / refrigerator magnets / coasters / bar mat / table mat / car mat/bottle opener / anti slip mat / USB flash disk cover / card reader cover / mobile phone holder / mobile phone cover / file clamp / zipper puller and many kinds of PVC label used onto garments, shoe, bags etc.
Which machine apply for PVC rubber / SILICONE rubber and Ink material.
Samples of PVC Products:
PVC Machine Features:
3D Soft Rubber Logo Label Patch machine advantages:
1. No computer can work, also be programmed by computer or teach box both;
2. Three axis(X,Y,Z), easy installation, easy operation, foreigners even can install and run the machine with our manual and English instruction without Chinese specialist coming.
3. Twelve dripping head can work 12 cavities same time and also can work 4 cavities with 3 different color. One machine can save 4 to 6 workers.
4.Twelve fast button can run 12 different design same time very easily and fast.
5. Heavy weight with 380 KG can work with highest speed at 0.8m per second.
6.Higher precision with ±0.01mm and big capacity memory card can save more than 65000 files.
7. Machine will equipped with logo shop software freely for programming and it can work with all data setting and image edit and machines link adjustment.
8. It can work with PVC, silicone, ink, paint,etc.
Machine Parameter:
3D Soft Rubber Logo Label Patch machine features:
|
Type |
Work Journey(mm) |
Dimension(mm) |
Weight(KG) |
Power(W) |
Voltage |
Transmission Method |
|
4/6/8/12/24 Colors |
L6 0 0*W400*H 120 |
L1200*W1000*H1600 |
3 8 0 |
1 000 |
220V |
Ball screw |
We could supply molds, PVC material and whole set of PVC label machine. one station solution and make you run the project without any difficulty.
Pre-sale service:
* Sample testing support.
* View our Factory.
* one station solution support.
After-sale service:
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
