MALODA

FOB Reference Price: Get Latest Price

≥1200 Pieces

US $0.7

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Hebei, China, China

Brand Name:: JAMBO

Model Number:: MALODA

Material:: Carbon steel

Market:: widely used

Color:: to order

Rock well C:: 30-35

Product name:: maloda

MOQ:: 1200pcs

Weight:: 0.5-0.7kg

Diameter of the neck:: 30-35mm

Quick Details

Blade Length:: 12in, 15 1/2in, 11 1/4in, 10 5/8in

Application:: Farming Shovel

Warranty:: 1YEAR

Place of Origin:: Hebei, China, China

Brand Name:: JAMBO

Model Number:: MALODA

Material:: Carbon steel

Market:: widely used

Color:: to order

Rock well C:: 30-35

Product name:: maloda

MOQ:: 1200pcs

Weight:: 0.5-0.7kg

Diameter of the neck:: 30-35mm

Product Description

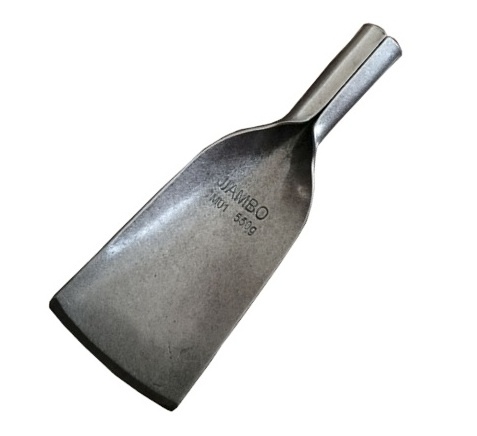

Key words: small shovel, maloda, garden shovel, Sudan shovel.

Technical Specifications: Type, Weight and Dimensional

Overall length of blade (mm):	270-280
Length of blade, excluding neck(mm):	170-190
Blade width(mm):	105-120
Blade thickness(mm):	2.5 min
Blade weight(kg):	0.5-0.7
Length of the neck(mm):	90-100
Diameter of the neck(mm):	30-35

Material Specifications:

Blade: The steel for Malodas shall be a medium to high carbon steel within the specified ranges given bleow:

Carbon:	0.40-0.80%
Manganese:	0.50-1.00%
Silicon:	0.35% max
Phosphorous:	0.06% max
Sulphur:	0.06% max

Technical Specifications: Heat Treatment and Hardness

After the forging has been normalized, the blade shall be hardened and tempered therough out the entire the blade

Rockwell C :

30-35

Tchnical Specifications: Construction

Blade: The Malodas to be forged from one piece and the blade to be ground sharp on the cutting edge.

Blade: symmetrical and free from flaws. All fins and flashes dressed off. The ye smooth internally, uniformly tapered and lie centrally in the forging.

Packing and shipping

The blade varnished all over. greased or individuaaly wrapped in a rust protecting covering. packed in a strong cardboard box or wood case for shipment.

Carbox packing and loading information
