Quick Details
-
Certificate:
-
CE FCC ROHS
-
Warranty:
-
2 Years
-
Work Time (h):
-
24
-
Battery Type:
-
Lead-acid/Lithium-ion
-
Charging Technology:
-
MPPT
-
Max PV Input Power:
-
625W-5000W
-
Max.PV Open Circuit Voltage:
-
100V/150V/200V
-
Display:
-
LCD
-
Communication:
-
RS485
-
Grounding:
-
Common Negative
-
Accessories:
-
MT50/USB/WIFI/BLE
-
Keywords:
-
EPEVER MPPT Solar Charge Controller
-
OEM:
-
OEM MPPT Solar Charger
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
EPever
-
Model Number:
-
Tracer6420AN
-
Certificate:
-
CE FCC ROHS
-
Warranty:
-
2 Years
-
Work Time (h):
-
24
-
Battery Type:
-
Lead-acid/Lithium-ion
-
Charging Technology:
-
MPPT
-
Max PV Input Power:
-
625W-5000W
-
Max.PV Open Circuit Voltage:
-
100V/150V/200V
-
Display:
-
LCD
-
Communication:
-
RS485
-
Grounding:
-
Common Negative
-
Accessories:
-
MT50/USB/WIFI/BLE
-
Keywords:
-
EPEVER MPPT Solar Charge Controller
-
OEM:
-
OEM MPPT Solar Charger

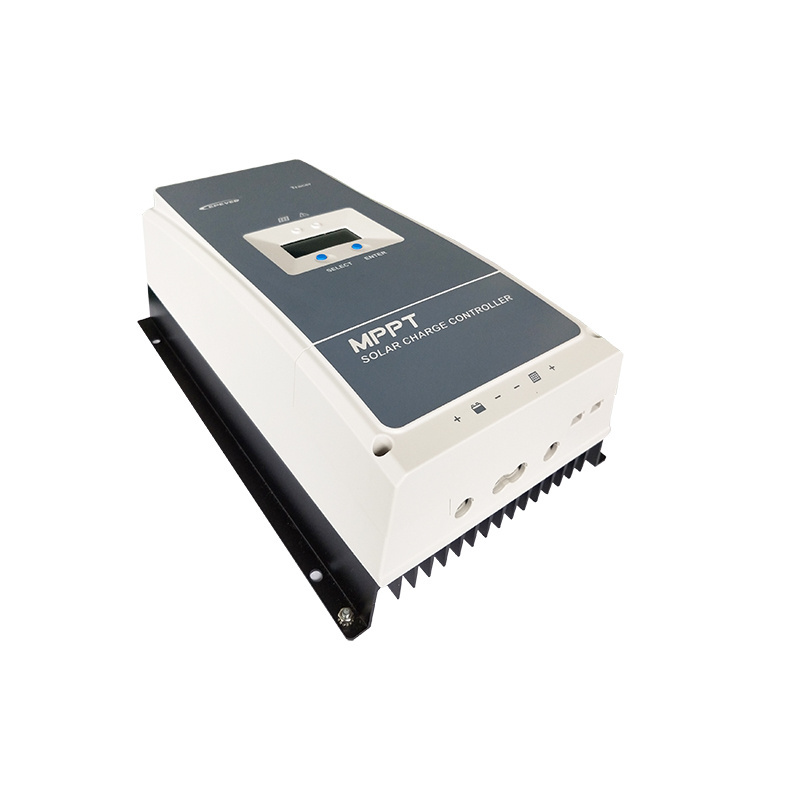

EPEVER MPPT Solar Charge Controller Tracer6420AN 60A Solar Regulator Voltage 12V 24V 36V 48V Auto Work
Product Description
Tracer-AN(10A~40A)series charge controller adopts MPPT(Maximum Power Point Tracking)technology. In any situation, it can track the maximum power point (MPP) of the solar array and obtain the maximum solar energy rapidly and accurately. It can generate up to 30% more power compared with the PWM charge controller.
This series can accept max.100V Voc and work with the solar panels which are designed for on-grid applications. The multi-functional LCD displays the system status vividly.
Tracer-AN (50A-100A) series is the largest charge controller series in EPEVER's product range and can take up to 5KW solar panel. For even more power, the user can use
PAL-ADP-50N
to connect max. 6 units of a controller in parallel for up to 30KW system.
Highlights:
MPPT tracking efficiency above 99.5%
Maximum charge conversion efficiency as high as 98%
Support lead-acid and lithium-ion batteries
Multiple load work modes
Charging power and current limitation function
High-temperature charging power derating function Standard
Modbus communication protocol with RS485 interface
Real-time energy statistics function
Specification
|
Model
|
Tracer5415AN
Tracer5420AN
|
Tracer6415AN
Tracer6420AN
|
Tracer8415AN
Tracer8420AN
|
Tracer10415AN
Tracer10420AN
|
|||
|
System voltage
|
12/24/36/48VDC/Auto
|
|
|
|
|||
|
Battery type
|
Lead-acid (Sealed/Gel/Flooded)/Lithium (LiFePO4/Li(NiCoMn)O2)/User
|
|
|
|
|||
|
Rated charge current
|
50A
|
60A
|
80A
|
100A
|
|||
|
Rated charge power
|
625W/12V
1250W/24V 1875W/36V
2500W/48V
|
750W/12V
1500W/24V 2250W/36V
3000W/48V
|
1000W/12V
2000W/24V
3000W/36V
4000W/48V
|
1250W/12V
2500W/24V 3750W/36V
5000W/48V
|
|||
|
Tracking efficiency
|
≥99.5%
|
|
|
|
|||
|
Max. PV voltage
|
150V; 200V
|
|
|
|
|||
|
Self-consumption
|
98mA/12V;60mA/24V;50mA/36V;46mA/48V
|
|
|
|
|||
|
Relative humidity
|
5% to 95% (N.C.)
|
|
|
|
|||
|
Enclosure
|
IP20
|
|
|
|
|||
|
Communication interface
|
RS485(5VDC/200mA, Two RJ45 ports in parallel)
|
|
|
|
|||
|
Grounding
|
Common negative
|
|
|
|
|||
|
Operating temp.
|
-25℃～+60℃(derating above 45℃)
|
|
|
|
|||
|
Dimensions(LxWxH)
|
261×216×119mm
|
340×236×119mm
|
394×240×134mm
|
394×242×143mm
|
|||
|
Model
|
Tracer1210AN
Tracer1206AN
|
Tracer2210AN
Tracer2206AN
|
Tracer3210AN
|
Tracer4210AN
|
|||
|
System voltage
|
12/24VDC/Auto
|
|
|
|
|||
|
Battery type
|
Lead-acid (Sealed/Gel/Flooded)/Lithium (LiFePO4/Li(NiCoMn)O2)/User
|
|
|
|
|||
|
Rated charge current
|
10A
|
20A
|
30A
|
40A
|
|||
|
Rated charge power
|
130W/12V 260W/24V
|
260W/12V 520W/24V
|
390W/12V 780W/24V
|
520W/12V 1040W/24V
|
|||
|
Tracking efficiency
|
≥99.5%
|
|
|
|
|||
|
Max. PV voltage
|
60V/100V
|
|
|
|
|||
|
Self-consumption
|
≤12mA
|
|
|
|
|||
|
Relative humidity
|
≤95%, N.C.
|
|
|
|
|||
|
Enclosure
|
IP30
|
|
|
|
|||
|
Communication interface
|
RS485(RJ45)
|
|
|
|
|||
|
Grounding
|
Common negative
|
|
|
|
|||
|
Operating temp.
|
-25℃～+45℃(100% input and output).
|
|
|
|
|||
|
Dimensions(LxWxH)
|
172×139×44mm
|
220×154×52mm
|
228×164×55mm
|
252×180×63mm
|
|||
Tracer-AN (50A-100A) series is the largest charge controller series in EPEVER's product range and can take up to 5KW solar panel.
For even more power, the user can use PAL-ADP-50N to connect max. 6 units of a controller in parallel for up to 30KW system. The multiple dry contact signals are designed for a diversified application.
For even more power, the user can use PAL-ADP-50N to connect max. 6 units of a controller in parallel for up to 30KW system. The multiple dry contact signals are designed for a diversified application.
Packing & Delivery
The EPEVER MPPT controllers firstly packed with plastic bag, secondly put customized foam and cardboard box to protect goods, finally with a outer cardboard box, also customized wooden pallet for sea shipment.
