Quick Details
-
Panel Efficiency:
-
19-22%
-
size:
-
Customized
-
Maximum Power:
-
320W
-
Current:
-
10A
-
Voltage:
-
30V
-
Maximum system:
-
500V DC
-
Application:
-
roof/motorhomes/RV and yachts
-
OEM Order:
-
Acceptable
-
Meterial:
-
ETFE Film
-
Size:
-
1685*1010*2.4mm
-
Certificate:
-
CE
Quick Details
-
Brand Name:
-
TP Energy
-
Model Number:
-
TP300MF
-
Place of Origin:
-
Jiangsu,China
-
Panel Efficiency:
-
19-22%
-
size:
-
Customized
-
Maximum Power:
-
320W
-
Current:
-
10A
-
Voltage:
-
30V
-
Maximum system:
-
500V DC
-
Application:
-
roof/motorhomes/RV and yachts
-
OEM Order:
-
Acceptable
-
Meterial:
-
ETFE Film
-
Size:
-
1685*1010*2.4mm
-
Certificate:
-
CE
Product Description

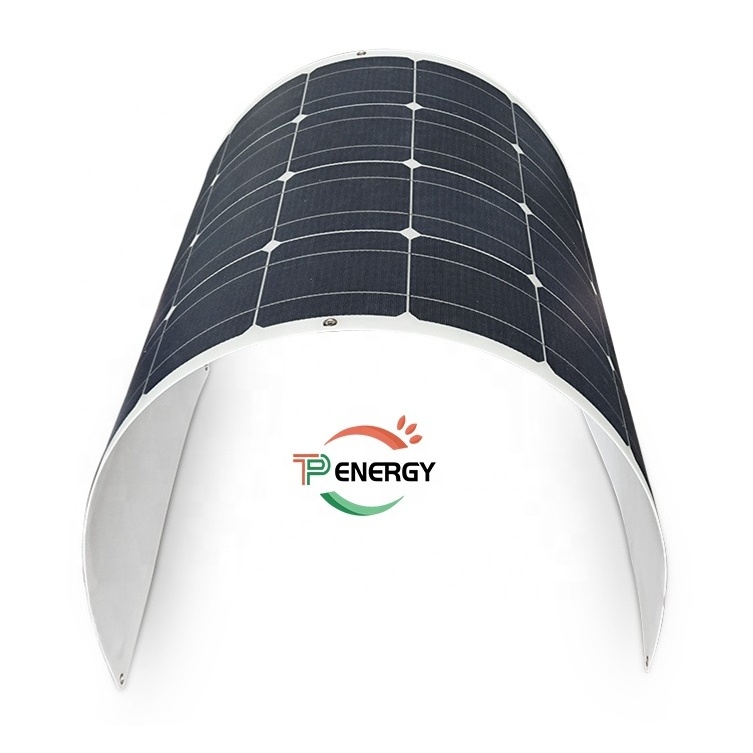

320W thin film flexible solar panel
Could be customized made with kinds of size and Voltage as customers' requirement
Could be customized made with kinds of size and Voltage as customers' requirement
KEY SALIENT FEATURES
Monocrystalline Module Product renderings
Monocrystalline Module Product renderings
*
Ultra-light:
weighs as 60% less than conventional PV panels.
* Flexible: The bendable product characteristics make it more fit when installed on all kinds
of curved surfaces.
* Easy Installation: Can reduce installation cost by up to 50% through the use of re-engineered
components, ease of handling and faster installation
* Transportation: low weight, will very significantly reduce the cost of transportation.
* Durable: The use of multi-layer nano polymer film materials enables the product to have better
solar cell protection, longer service life, and greatly reduce power loss caused by external shocks
* Advanced polymers have good performance and long life
Excellent optical properties, high and low temperature resistance, high structural strength, resistance to chemical corrosion.
Using advanced polymer materials, nearly 60% lighter than traditional solar panels, but much more longer service life, and also
easily for transportation & installation
* Flexible: The bendable product characteristics make it more fit when installed on all kinds
of curved surfaces.
* Easy Installation: Can reduce installation cost by up to 50% through the use of re-engineered
components, ease of handling and faster installation
* Transportation: low weight, will very significantly reduce the cost of transportation.
* Durable: The use of multi-layer nano polymer film materials enables the product to have better
solar cell protection, longer service life, and greatly reduce power loss caused by external shocks
* Advanced polymers have good performance and long life
Excellent optical properties, high and low temperature resistance, high structural strength, resistance to chemical corrosion.
Using advanced polymer materials, nearly 60% lighter than traditional solar panels, but much more longer service life, and also
easily for transportation & installation
Specification
|
Model
|
TP-300MF
|
TP-305MF
|
TP-310MF
|
TP-315MF
|
TP-320MF
|
|||||
|
Max Power(pm)
|
300w
|
305w
|
310w
|
315w
|
320w
|
|||||
|
Power Tolerance
|
0~+5w
|
|
|
|
|
|||||
|
Max Power Voltage-(Vm)
|
32.4
|
32.6
|
32.8
|
33.0
|
33.2
|
|||||
|
Max Power Current(A)
|
9.26
|
9.36
|
9.45
|
9.55
|
9.64
|
|||||
|
Open-Circuit Voltage(Voc)
|
39.7
|
39.9
|
40.1
|
40.3
|
40.5
|
|||||
|
Short -circuit Current(lsc)
|
9.75
|
9.83
|
9.90
|
9.99
|
10.08
|
|||||
|
Effective Module Effciency
|
17.6
|
17.9
|
18.2
|
18.5
|
18.8
|
|||||
|
STC:AM=1.5,Irradiation 1000w/m²,Module Temperature 25°
|
|
|
|
|
|
|||||
Packing & Delivery
20GP: 480pcs
40HQ:1200pcs
Company profile
Topsky Energy (HK) Limited locate in Shenzhen, we started operating in photovoltaic industry since 1998, now we are a comprehensive company including technology development, independent production, supply chain integration, relative products processing and international market. our annual supply capacity of solar cell and solar panel is more than 300MW.
Offering reliable quality and high cost-effective products is always our top priority. Topsky executes a series of effective quality control procedures and serious accountability system, which can make sure each our products pass industrial standards before delivery. Meanwhile, We take great care to integrate resources intelligently, which enables us to achieve best cost performance
In order to satisfied our clients from all over the world, Topsky boasts a professional and experienced international sales team. With belief of developing together with our clients, we cherish each opportunity to help clients grow better and faster. Meticulous steward type service covers pre-sales consulting, order processing, after sale following. quick response and beneficial proposal help you clear all obstacles during international purchase, and maximize your profit.
