Quick Details
-
Ink Type:
-
uv ink
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NEWIN
-
Voltage:
-
220V
-
Dimensions(L*W*H):
-
3956*1526*1600mm
-
Weight:
-
800 KG
-
Product name:
-
UV Hybrid Printer
-
Max Print Size:
-
1800mm
-
Max Print Height:
-
60mm
-
Printer Head:
-
2-18 pieces Ricoh Gen5/Gen6/Konica 1024A
-
Printing Resolution:
-
360*720dpi,720*720dpi,720*1080dpi,720*1440dpi
-
Ink Colors:
-
CMYK+Lc+Lm+W+V
-
File Format:
-
TIFF,JPEG,POSTSCRIPT,EPS,PDF etc.
-
Software:
-
Caldera/PF/PP
-
Working Environment:
-
20℃-28℃,humidty40%-70%
-
Machine Size&Net Weight:
-
3956*1526*1600mm ; 800kgs
Quick Details
-
Print Dimension:
-
1800mm
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Ink Type:
-
uv ink
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NEWIN
-
Voltage:
-
220V
-
Dimensions(L*W*H):
-
3956*1526*1600mm
-
Weight:
-
800 KG
-
Product name:
-
UV Hybrid Printer
-
Max Print Size:
-
1800mm
-
Max Print Height:
-
60mm
-
Printer Head:
-
2-18 pieces Ricoh Gen5/Gen6/Konica 1024A
-
Printing Resolution:
-
360*720dpi,720*720dpi,720*1080dpi,720*1440dpi
-
Ink Colors:
-
CMYK+Lc+Lm+W+V
-
File Format:
-
TIFF,JPEG,POSTSCRIPT,EPS,PDF etc.
-
Software:
-
Caldera/PF/PP
-
Working Environment:
-
20℃-28℃,humidty40%-70%
-
Machine Size&Net Weight:
-
3956*1526*1600mm ; 800kgs

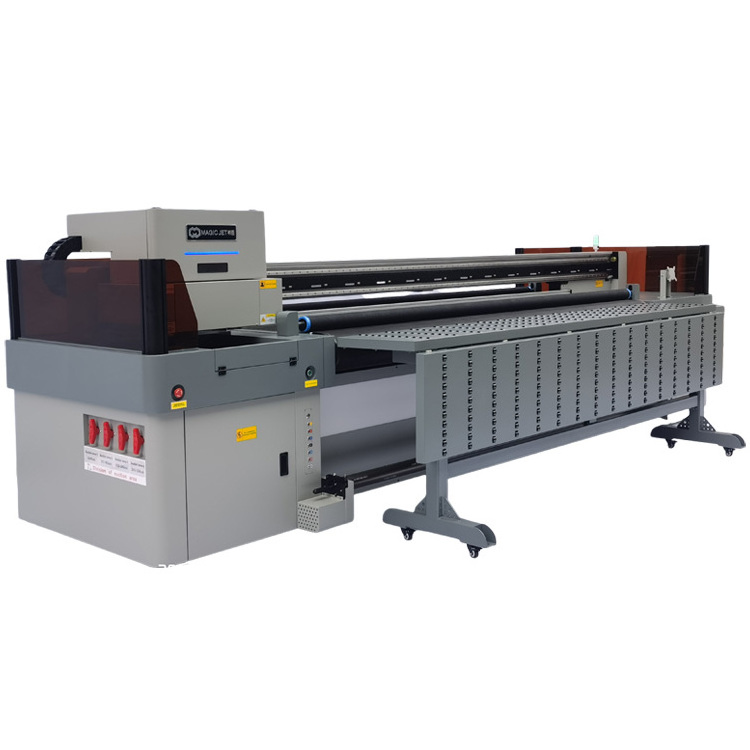

uv digital flatbed hybrid printer roll to roll large format UV Printer
For traditional hybrid uv printer, the machine platform may come without any vacuum. And with simple media feeding and take-up system, which is not good to cope with both roll materials and rigid materials. For this new newin uv hybrid printer series, with 4 zones high power electronic controlled vacuum platforms,tension type media feeding systems, advanced media alignment pins, 3 press bards….Guarantee the high precision stepping, and high quality printing result. What’s more, the latest industrial level epson i3200-u g5i gen5 heads, powered the machine to be super fast. The negative pressure system, make the machine maintenance to be a piece of cake.
|
Model No.
|
OM-HD1804Pro
|
Printing Width
|
1800mm
|
||
|
PrintingHeads
|
2-18 pieces Ricoh Gen5/Gen6/Konica 1024A
|
|
|
||
|
Printing Resolution
|
360*720dpi,720*720dpi,720*1080dpi,720*1440dpi
|
|
|
||
|
Printing Speed
|
Ricoh Gen5: Sketch model:54sqm/h ; Production model:43sqm/h ; Sample model: 36sqm/h
Ricoh Gen6: Sketch model: 60sqm/h ; Production model: 50sqm/h ; Sample model: 43sqm/h Konica 1024A：Sketch model: 68sqm/h ; Production model: 54sqm/h ;Sample model: 45sqm/h |
|
|
||
|
Ink Type
|
UV Ink(no voc)
|
Colors
|
CMYK+Lc+Lm+W+V
|
||
|
Ink Tank
|
1000ml
|
Data Input
|
USB3.0
|
||
|
Printing Material
|
Glass/Acrylic/Metal/Pet lightbox/3P etc
|
|
|
||
|
Printing Standard
|
International ICC color control
|
|
|
||
|
Rip software
|
Caldera/PF/PP
|
|
|
||
|
Transfer Format
|
TIFF,JPEG,POSTSCRIPT,EPS,PDF etc.
|
|
|
||
|
Working Environment
|
20℃-28℃，humidty40%-70%
|
|
|
||
|
Operation System
|
Win7/Win10
|
Voltage
|
220V
|
||
|
Power Consumption
|
5000W
|
Machine Size
|
3956*1526*1600mm
4056*1804*1535mm |
||
FAQ
Q: Are you a manufacturer or trading company?
Q: Are you a manufacturer or trading company?
A: Yes, we're the professional factory with trading department
Q: What is the MOQ?
A: 1 Unit
Q: What's your payment term?
A: 30% T/T in advance, the balance before shipment
Q: How long is the warranty time?
A:Our factory provide one year warranty: any parts (except print head, ink pump and ink cartridges) questions on normal use, will provide new ones within one year(not include shipping cost). Beyond one year, only charge at cost.
Q: What's the delivery time?
A:Normally is 3-7 days after deposit
Q:.where can I buy the spare parts and inks?
A:Our factory also provide spare parts and inks, you can buy from our factory directly or other suppliers in your local market.
Q: What is the MOQ?
A: 1 Unit
Q: What's your payment term?
A: 30% T/T in advance, the balance before shipment
Q: How long is the warranty time?
A:Our factory provide one year warranty: any parts (except print head, ink pump and ink cartridges) questions on normal use, will provide new ones within one year(not include shipping cost). Beyond one year, only charge at cost.
Q: What's the delivery time?
A:Normally is 3-7 days after deposit
Q:.where can I buy the spare parts and inks?
A:Our factory also provide spare parts and inks, you can buy from our factory directly or other suppliers in your local market.
