- Product Details
- {{item.text}}
Quick Details
-
Jacket:
-
PVC
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WUCAI
-
Model Number:
-
YJV32
-
Size:
-
10 16 25 35 50-185 240 300 400 500-1600
-
Product Name:
-

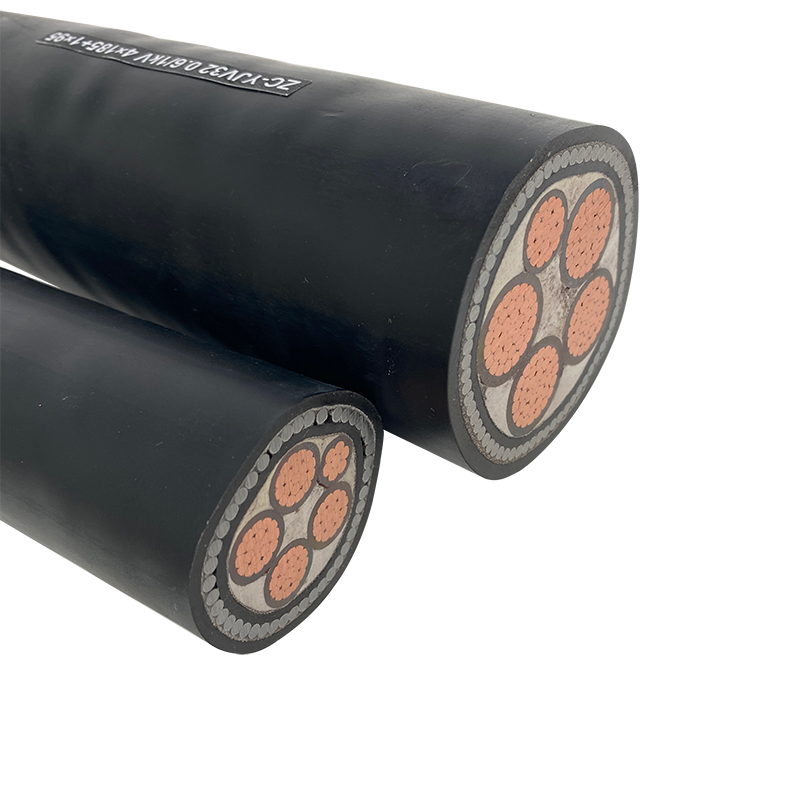

Copper conductor XLPE insulated PVC sheathed power cable
-
Conductor:
-
Copper
-
Rated Voltage:
-
3.6kV,6kV,10kV,15kV,18kV,20kV,26kV,30kV,35kV
-
Insulation:
-
XLPE PVC
-
Sheath material:
-
PVC
-
Cores:
-
1 or 3
-
Metal shield:
-
Copper tape. Copper wire
-
Usage:
-
Power Transmission Lines
-
Armour:
-
SWA
-
Standard:
-
BS IEC ASTM DIN
Quick Details
-
Insulation Material:
-
Xlpe
-
Application:
-
Construction,Underground,Mining,Power Station,Railway
-
Conductor Material:
-
Copper
-
Jacket:
-
PVC
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WUCAI
-
Model Number:
-
YJV32
-
Size:
-
10 16 25 35 50-185 240 300 400 500-1600
-
Product Name:
-
Copper conductor XLPE insulated PVC sheathed power cable
-
Conductor:
-
Copper
-
Rated Voltage:
-
3.6kV,6kV,10kV,15kV,18kV,20kV,26kV,30kV,35kV
-
Insulation:
-
XLPE PVC
-
Sheath material:
-
PVC
-
Cores:
-
1 or 3
-
Metal shield:
-
Copper tape. Copper wire
-
Usage:
-
Power Transmission Lines
-
Armour:
-
SWA
-
Standard:
-
BS IEC ASTM DIN
Product Description
WUXI JIANGNAN CABLE Co.,Ltd.
More than 37 years knowledge in cables industry, we supply reliable cables world widely including control cables, building wire,electric wire, power cable, control cable, flexible cable, screen cable, armoured cable, LSZH cable. We can supply the cables according to the standard of BS, AS/NZS and IEC.
Specification
|
Medium rated voltage and thickness
|
|
|
|
|
|
|
|
|||||||
|
Nominal cross-sectional area of conductormm²
|
3.6/6(7.2)
|
6/6(7.2)
6/10(12) |
8.7/10(12)
8.7/15(17.5) |
12/20(24)
|
18/20(24)
18/30(36) |
21/35(40.5)
|
26/35(40.5)
|
|||||||
|
10
|
2.5mm
|
-
|
-
|
-
|
-
|
|
|
|||||||
|
16
|
2.5mm
|
3.4mm
|
-
|
-
|
-
|
|
|
|||||||
|
25
|
2.5mm
|
3.4mm
|
4.5mm
|
-
|
-
|
|
|
|||||||
|
35
|
2.5mm
|
3.4mm
|
4.5mm
|
5.5mm
|
-
|
|
|
|||||||
|
50-185
|
2.5mm
|
3.4mm
|
4.5mm
|
5.5mm
|
8.0mm
|
9.3mm
|
10.5mm
|
|||||||
|
240
|
2.6mm
|
3.4mm
|
4.5mm
|
5.5mm
|
8.0mm
|
9.3mm
|
10.5mm
|
|||||||
|
300
|
2.8mm
|
3.4mm
|
4.5mm
|
5.5mm
|
8.0mm
|
9.3mm
|
10.5mm
|
|||||||
|
400
|
3.0mm
|
3.4mm
|
4.5mm
|
5.5mm
|
8.0mm
|
9.3mm
|
10.5mm
|
|||||||
|
500-1600
|
3.2mm
|
3.4mm
|
4.5mm
|
5.5mm
|
8.0mm
|
9.3mm
|
10.5mm
|
|||||||
