Quick Details
-
Working Voltage:
-
220V
-
Flow Rate:
-
45L/M, 45L/M
-
Warranty:
-
1 year warranty, 1 Year
-
Certificate:
-
ISO
-
Nozzle:
-
OPW
-
Certificates:
-
OIML
-
Color:
-
Customized Color
-
Material:
-
Carbon Steel+cast Iron
-
Accuracy:
-
±0.30%
-
Voltage:
-
110V/220V/380V
-
Pos system/protocol:
-
RS485
-
Flow meter:
-
Tatsuno Flowmeter
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Bluesky
-
Model Number:
-
RT-HY
-
Working Voltage:
-
220V
-
Flow Rate:
-
45L/M, 45L/M
-
Warranty:
-
1 year warranty, 1 Year
-
Certificate:
-
ISO
-
Nozzle:
-
OPW
-
Certificates:
-
OIML
-
Color:
-
Customized Color
-
Material:
-
Carbon Steel+cast Iron
-
Accuracy:
-
±0.30%
-
Voltage:
-
110V/220V/380V
-
Pos system/protocol:
-
RS485
-
Flow meter:
-
Tatsuno Flowmeter
Product Description

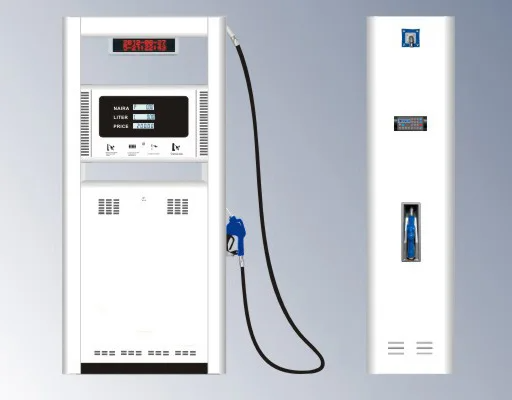

Tatsuno type Pump / Tokheim type Pump / Bennett type Pump
Both suction and submersible
* 100% tested before shipping
* One year warranty and guarantee
* Certificate with MID,PCEC,etc
* Hot selling in South America
* Factory direct selling
Both suction and submersible
* 100% tested before shipping
* One year warranty and guarantee
* Certificate with MID,PCEC,etc
* Hot selling in South America
* Factory direct selling
|
Accuracy
|
±0.30%
|
|
|
||
|
Repeating Accuracy
|
≤0.10%
|
|
|
||
|
Flow range
|
(5~55) L/min
|
|
|
||
|
Maximum head
|
5m
|
|
|
||
|
Inlet Vacuum
|
≥54kPa
|
|
|
||
|
Outlet Vacuum
|
≤0.3MPa
|
|
|
||
|
Work pressure
|
<300 kPa
|
|
|
||
|
Noise
|
≤70dB(A class)
|
|
|
||
|
Unit price range
|
0~9999, 0~999999 (changeable)
|
|
|
||
|
Single range
|
1~9999.99,1~999999.99 (changeable)
|
|
|
||
|
Accumulative range
|
0~9999999999.99
|
|
|
||
|
Input hose diameter
|
38mm
|
|
|
||
|
Oil hose diameter
|
19mm
|
|
|
||
|
Explosin-Proof motor power
|
750W(or 1000W)
|
|
|
||
|
Ambient Temperature
|
-35℃~+55℃
|
|
|
||
|
Humidity
|
≤95%
|
|
|
||
|
Atmospheric Pressure
|
86kPa~106kPa
|
|
|
||
|
Power(optional)
|
AC110V±20%, AC220V±20% , AC380V±20% (50Hz)
|
|
|
||
