Quick Details
-
Warranty:
-
30year
-
Brand Name:
-
Trina
-
Model Number:
-
TSM-NEG21C.20 675-700W
-
Place of Origin:
-
China
-
Panel Dimensions:
-
2384*1303*33 mm
-
Product name:
-

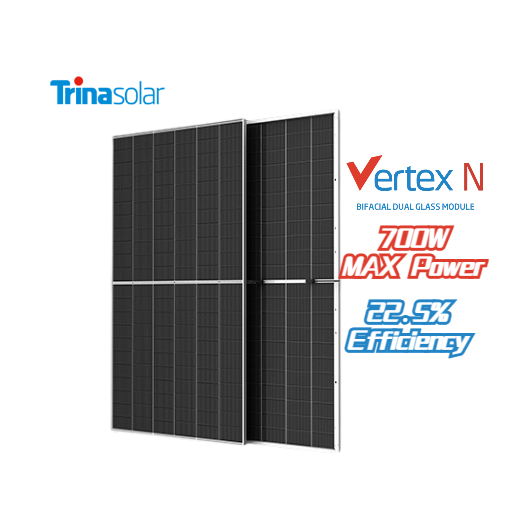

Trina TSM-NEG21C.20 675w-700w Bifacial Dual Glass Solar Panels
-
No. of cells:
-
132cells
-
Technology:
-
N-Type Bifacial Double Glass
-
Solar cell:
-
A-grade
-
Frame:
-
Anodized Aluminium Alloy
-
Application:
-
Solar Power System
-
Junction box:
-
IP68 Rated
-
Weight:
-
38.3 kg
-
Packaging:
-
33pcs/pallet
-
Modules per 40' container:
-
594 pieces
Quick Details
-
Cell size:
-
210mmx210mm
-
Type:
-
Half Cell, Bifacial, Double-glass, N-TYPE, BIPV
-
Panel Efficiency:
-
22.5%
-
Warranty:
-
30year
-
Brand Name:
-
Trina
-
Model Number:
-
TSM-NEG21C.20 675-700W
-
Place of Origin:
-
China
-
Panel Dimensions:
-
2384*1303*33 mm
-
Product name:
-
Trina TSM-NEG21C.20 675w-700w Bifacial Dual Glass Solar Panels
-
No. of cells:
-
132cells
-
Technology:
-
N-Type Bifacial Double Glass
-
Solar cell:
-
A-grade
-
Frame:
-
Anodized Aluminium Alloy
-
Application:
-
Solar Power System
-
Junction box:
-
IP68 Rated
-
Weight:
-
38.3 kg
-
Packaging:
-
33pcs/pallet
-
Modules per 40' container:
-
594 pieces
Product Description
Specifications
|
ELECTRICAL DATA (STC)
|
|
|
|
|
|
|
||||||
|
Peak Power Watts-PMAX (Wp)*
|
675
|
680
|
685
|
690
|
695
|
700
|
||||||
|
Power Tolerance-PMAX (W)
|
0 ~ +5
|
|
|
|
|
|
||||||
|
Maximum Power Voltage-VMPP (V)
|
39.4
|
39.6
|
39.8
|
40.1
|
40.3
|
40.5
|
||||||
|
Maximum Power Current-IMPP (A)
|
17.12
|
17.16
|
17.19
|
17.23
|
17.25
|
17.29
|
||||||
|
Open Circuit Voltage-VOC (V)
|
47.2
|
47.4
|
47.7
|
47.9
|
48.3
|
48.6
|
||||||
|
Short Circuit Current-ISC (A)
|
18.14
|
18.18
|
18.21
|
18.25
|
18.28
|
18.32
|
||||||
|
Module Eciency η m (%)
|
21.7
|
21.9
|
22.1
|
22.2
|
22.4
|
22.5
|
||||||
|
STC: Irrdiance 1000W/m2, Cell Temperature 25ºC, Air Mass AM1.5.
|
|
|
|
|
|
|
||||||
Product Details
|
Solar Cells
|
Monocrystalline
|
|
No. of cells
|
132 cells
|
|
Module Dimensions
|
2384×1303×33 mm (93.86×51.30×1.30 inches)
|
|
Weight
|
38.3 kg (84.4 lb)
|
|
Front Glass
|
2.0 mm (0.08 inches),
High Transmission, AR Coated Heat Strengthened Glass |
|
Encapsulant material
|
POE/EVA
|
|
Back Glass
|
2.0 mm (0.08 inches), Heat Strengthened Glass (White Grid Glass)
|
|
Frame
|
33mm(1.30 inches) Anodized Aluminium Alloy
|
|
J-Box
|
IP 68 rated
|
