Quick Details
-
Core Components:
-
Other
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
KENANCRANES
-
Product name:
-
container spreader
-
Connection method:
-
re-pin or latch
-
Application:
-
Cargo lifting
Quick Details
-
Warranty:
-
1 Year
-
Weight (KG):
-
3500
-
Marketing Type:
-
New Product
-
Core Components:
-
Other
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
KENANCRANES
-
Product name:
-
container spreader
-
Connection method:
-
re-pin or latch
-
Application:
-
Cargo lifting
Product Description

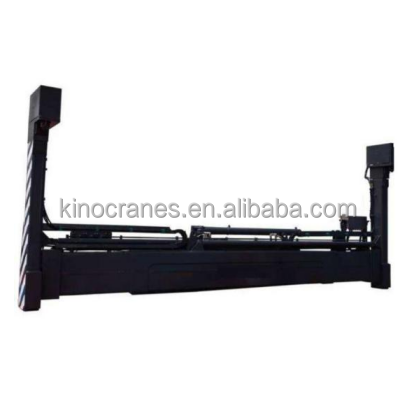

Empty container handler
adopts a single box and beam structure, which has a simple layout, easy maintenance and light weight. The resale pin adopts mechanical interlocking and electrical interlocking, and the resale pin box has a 250mm elastic floating function for easy loading. The height dimension of the main beam of the spreader is relatively lower than the design, and the length dimension is smaller than the length dimension of the container, making it easier to align the containers.
Product Display
Specification
|
Rated load
|
≤8tons
|
|
Self weight
|
3.5 tons
|
|
Applicable host
|
Empty container handler
|
|
Transfer pin type
|
ISO floating transfer pin, hydraulic cylinder drive
|
|
Telescopic form
|
hydraulic cylinder telescopic drive
|
|
Side shift mechanism
|
hydraulic cylinder telescopic drive
|
|
Power supply voltage/frequency
|
AC 380(3P)/50Hz
|
|
Allowable eccentric load
|
±10%
|
|
Vertical floating stroke of resale box
|
200mm
|
|
Opening and closing time
|
~1s
|
|
Telescopic time (20ft~40ft)
|
~25s
|
|
Side shift ±600
|
~15s
|
|
Control voltage
|
AC 220V (optional)
|
|
Protection level
|
IP55
|
|
Ambient temperature
|
-20°～+60°
|
