Quick Details
-
Screen Type:
-
NO
-
Combination:
-
voice monitor, acc detection
-
Warranty:
-
24 Months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
OB22
-
Car Make:
-
for cars
-
Product name:
-
concox OBD22 gps tracker
-
GSM:
-
850/900/1800/1900 MHz
-
GPRS:
-
Class12, TCP/ IP build in GSM Module
-
connection:
-
OBD standard port
-
voice monitor:
-
support
-
Application:
-
support ios and android
-
platform:
-
tracksolid or support others
-
acc detection:
-
support
-
Geo fence:
-
support
-
history playback:
-
support
Quick Details
-
Resolution:
-
NO
-
Function:
-
gps tracker
-
Placement:
-
OBD
-
Screen Type:
-
NO
-
Combination:
-
voice monitor, acc detection
-
Warranty:
-
24 Months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
OB22
-
Car Make:
-
for cars
-
Product name:
-
concox OBD22 gps tracker
-
GSM:
-
850/900/1800/1900 MHz
-
GPRS:
-
Class12, TCP/ IP build in GSM Module
-
connection:
-
OBD standard port
-
voice monitor:
-
support
-
Application:
-
support ios and android
-
platform:
-
tracksolid or support others
-
acc detection:
-
support
-
Geo fence:
-
support
-
history playback:
-
support

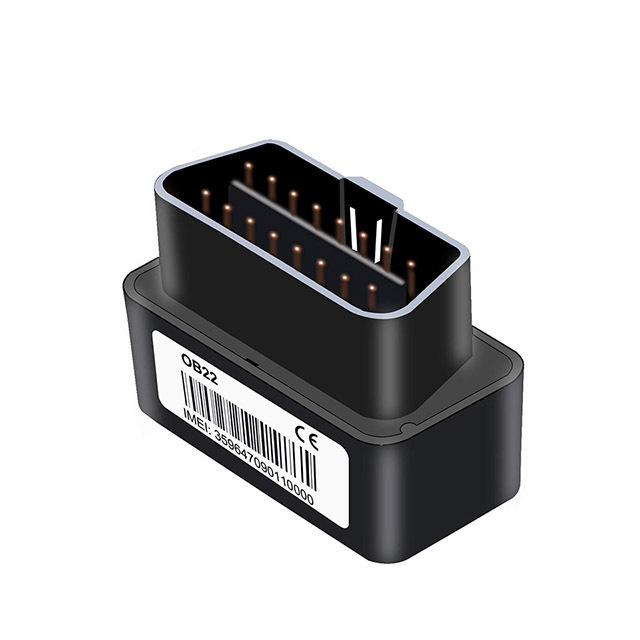

Concox OBD2 plug and play JIMI OB22 car tracking system OBD gps tracker with ACC detection
Model:OB22
Description:
Features:
1.OBD vehicle gps tracker
2.Network: GSM850/900/1800/1900M;
4.Support iOS and Android system
5.voice monitor,two-way communication,offline alert,low power alert,geo-fence alert,etc
6.Position:GPS+LBS
7.google map
Technical Parameter:
|
GSM Specification
|
|
| GSM frequency | 850/900/1800/1900 MHz |
| GPRS | Class 12, TCP/IP |
| Memory | 32+32Mb |
| Phase error | RMSPE<5,PPE<20 |
| Max output | GSM850/GSM900:33±3dBm |
| GSM1800/GSM1900:30±3Bm | |
| Max frequency error | ±0.1ppm |
| GPS Specification | |
| GPS chipset | MTK high sensitivity chip |
| Frequency | L1,1575.42MHz C/A code |
| GPS channel | 66 |
| Location accuracy | <10 meters |
| Tracking sensitivity | -165dBm |
| Acquisition sensitivity | -148dBm |
| TTFF (open sky) | Avg. hot start≤1sec |
| Avg. cold start≤32sec | |
| Others | |
| Antenna | Bullit-in GPS antenna, GSM quad-band antenna |
| Battery | 50mAh/3.7v lithium-polymer battery |
| Working voltage/current | 9-36VDC/32mA(12VDC) |
| Connector | OBD standard port |
| Standby current | ≤ 5mA |
| Operating temperature | -20℃~ 70℃ |
| Dimensions | 45.0(L)*22.5(W)*30.0(H)mm |
| Operating humidity | 45.0×22.5×30.0mm |
| Weight | 30g |
| LED indicator | Power, GPS, GSM |
| Voice monitoring range | ≤5meters |
