Quick Details
-
Model Number:
-
LS-3501
-
Material:
-
PP
-
Contact Form:
-
A type (normal open) contact.
-
Max. Contact Rating:
-
10 W
-
Max. Switching Voltage:
-
DC 100V
-
Max. Carrying Current:
-
DC 1.0A
-
Max. Switching Current:
-
DC 0.5A
-
Initial Contact Resistance:
-
500 mΩ Max
-
Shock Resistance:
-
30G Max
-
Application:
-
washing machine, air cooler, humidifier
-
Power supply:
-
12~36VDC
-
Volume Detection:
-
Full, half and empty
Quick Details
-
Grade:
-
DIY, Industrial
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SODOWELL
-
Model Number:
-
LS-3501
-
Material:
-
PP
-
Contact Form:
-
A type (normal open) contact.
-
Max. Contact Rating:
-
10 W
-
Max. Switching Voltage:
-
DC 100V
-
Max. Carrying Current:
-
DC 1.0A
-
Max. Switching Current:
-
DC 0.5A
-
Initial Contact Resistance:
-
500 mΩ Max
-
Shock Resistance:
-
30G Max
-
Application:
-
washing machine, air cooler, humidifier
-
Power supply:
-
12~36VDC
-
Volume Detection:
-
Full, half and empty

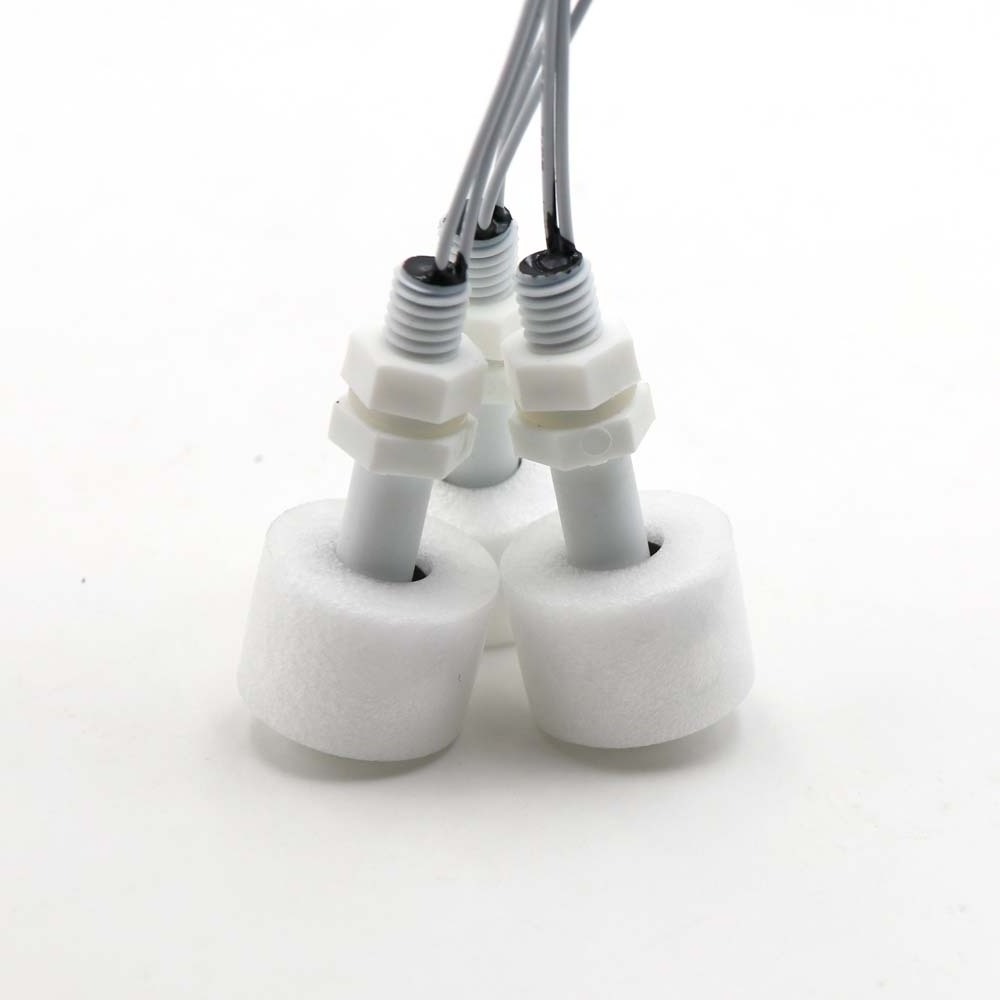

SODOWELL vertical float switch magnetic floating ball washing machine water level sensor
Product Description
Parameter Data
| Product Name | Float level switch |
| Application | Water tank, Air conditioner,Humidifier |
| Origin | SODOWELL Sensor |
| Installation | Vertical |
| Detect Length | 35mm,45mm,52mm,74mm for option |
| Material | PP stem, PP foam floater |
| Electric Data | 10W, 220VDC , 0.5A |
| Contact Form | Normal Open/N.O |
| Thread | M8/M10 |
| Wire | UL1007 AWG22 |
| Wire Length | 350mm(standard) |
| Temperature | -20C - 85 C |
Product Feature
1. OKI Reed switch, steady output signal
2.
Hermetically seald, waterproof and acid-resisting
3. Easy mounting, top or bottom installation avalible
4. Sensor body length: 35mm
5. Cable length: 350mm
