chicken nuggets breading machine hamburger breading machine burger patty breading coating machine

chicken nuggets breading machine hamburger breading machine burger patty breading coating machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $10000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power:: 45KW

Weight:: 1500kg

Dimension(L*W*H):: Model, according to capacity

Year:: 2020

Warranty:: 1 Year

Product name:: chicken nuggets breading machine

After-sales Service Provided:: Engineers available to service machinery overseas

Material:: 304 Stainless Steel

Productivity:: 100-1000kg/h

Advantage1:: mature technology on this project

Advantage2:: best designed scheme

Advantage3:: big manufacture,have large

belt wide:: 200, 400 600mm

breading type:: dry breading

After Warranty Service:: Field maintenance and repair service

Local Service Location:: Egypt, United Kingdom, United States, Italy, Algeria

Certification:: CE ISO9001

Quick Details

Place of Origin:: Shandong, China

Brand Name:: XXD

Voltage:: 220V

Power:: 45KW

Weight:: 1500kg

Dimension(L*W*H):: Model, according to capacity

Year:: 2020

Warranty:: 1 Year

Product name:: chicken nuggets breading machine

After-sales Service Provided:: Engineers available to service machinery overseas

Material:: 304 Stainless Steel

Productivity:: 100-1000kg/h

Advantage1:: mature technology on this project

Advantage2:: best designed scheme

Advantage3:: big manufacture,have large

belt wide:: 200, 400 600mm

breading type:: dry breading

After Warranty Service:: Field maintenance and repair service

Local Service Location:: Egypt, United Kingdom, United States, Italy, Algeria

Certification:: CE ISO9001

Product Description

Product introduction

1. Full-automatic filling, forming, and outputing
2. It can be used to produce hamburger patty and chicken nuggets, fish patty, etc.
3. Hydraulic filling ensures the good shape and the consistent weight of the products.
4. The screw-driven conveyor ensures the minimum breakage of raw materials
5. It is made of stainless steel which meet requirement of HACCP.

Model	CXJ-100	CXJ-400	CXJ-600
Input capacity	100KGH	300-500kgh	600-1000kgh
Power	0.55KW	12kw	15kw
Dimension	860×600×1400mm	2828×830×2136mm	2828×830×2136mm
Thickness:	adjustable	adjustable	adjustable
Diameter	110mm at maximum	adjustable	adjutable
Material	SUS304	SUS304	SUS304

Products Description

CXJ-100

Model：CXJ-100
Material: SS304
Capacity: 70pcs/min for nuggets;
35pcs/min for burger patty
Capacity for nuggets: 60kg/h
Capacity for burger: 100kg/h
Bin volume: 30L
Power: 0.55KW
Power source: 380V/50HZ
Size: 860×600×1400mm

Battering machine

Model:NJJ-200/400/600
Material: SS304
Width of belt: 200/400/600mm
Speed of belt: frequency adjustable
Introduction: can work together with the patty forming machine and breading machine or use individually. It is used to coat layer
of batter on the chicken meat patty or other
patties or chicken nuggets and other vegetable patties

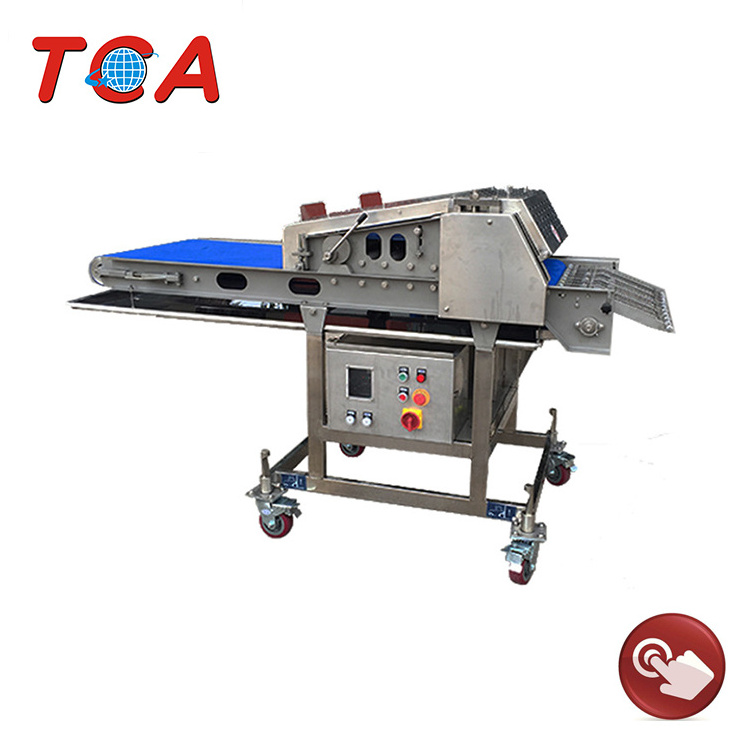

Breading machine

Model: SXJ-200/400/600
Material: SS304
Width of belt: 200mm/400/600mm
Speed of belt: Frequency adjustable
can working with the meat patty forming machine and battered machine.
The upper and lower bread layer can be adjusted
Strong wind fan and vibrator can remove surplus powder
Easy to operate and adjust
Special scatted powder technique
Easy to wash and confirm to HACCP.

Frying machine

Model: XDL-2500*400
Material:SS304
Width of mesh belt:400mm
Speed: Frequency adjustable
With upper and lower belt system
Oil capacity: 184L; 156.4KG
Frying time: 15 second -3minutes. Frequency Adjustable.
Frying zone: 1700*540*200mm
Power: 36kw
Power source: 380V/50HZ
Weight: 300KG
Size: 2700×980×1300mm
Introduction:

Air drying line

make the temperature down before entering into the freezer after frying

Instant quick freezer

instant quick freezer

Temperature from 60--18 degree

Freezing time is adjustable

With Bitzer compressor

Detailed Images

Main Features

1) a complete line from A to Z
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Good experience for this line
4) All is SUS304
5) Good service

Designing

We will design the processing line based on customers' site

After making confirmation from the customers and then we can manufacture .

Installing

We supply the installing service after the goods reach the destination part Teach the customer how to use the line and make it
working

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Company Introduction

Zhucheng Xinxudong Machinery Co.,ltd is established in 1998. We are the pioneer in the line of manufacturing of batch fryer, continuous frying machine, potato chips processing line, frozen French fries processing line, Burger, nuggets processing line and IQF and other food processing machinery.

In order to expand business scope, now we have three companies: Zhucheng Xinxudong Machinery Co.,ltd ‘s main products is various types of frying line, Potato chips/ frozen French fries production line . We have 11 engineers who supply drawing, design for our production line. There are more than 50 domestic salesmen who sell our machinery in domestic and they distribute in different area. For international business, we find customers from world through alibaba, internal trade and other tools. Now our machinery is sold to USA, UK, Germany, Spain, Saudi Arabic, Argeria, Philippines, Malaysia, Indonesia, India, Argentina and all over the world. We own a good reputation for our highest-quality and best after sales service. We established potato chips line in Pakistan, Bhutan, India this year, and sold frozen French fries production line to Saudi Arabic, Argeria and Brazil.
We have ISO, CE, NFA and other certificates.
