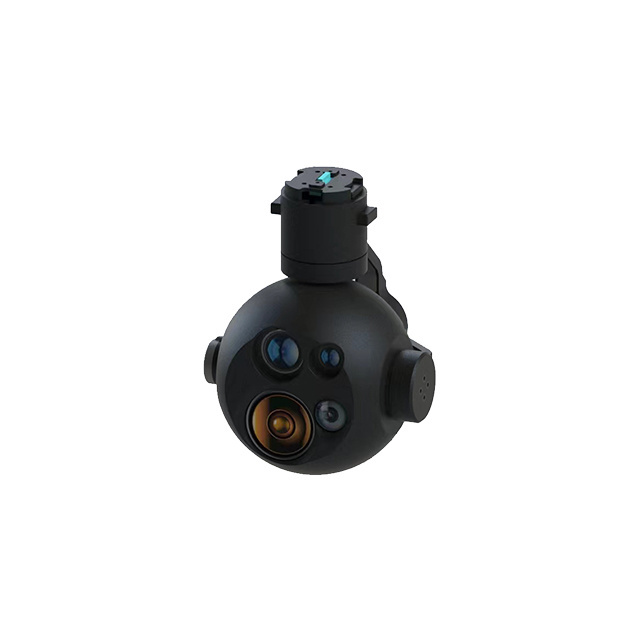

MODEL
|
|
MIVR-01
|
|
System specification
|
System type
|
Gyro stability
|
|
|
Weight
|
380g
|
|
Stable system
|
Platform type
|
Tri-axis
|
|
|
Azimuth
|
360°rotation
|
|
|
Pitch
|
-100°～+100°
|
|
|
Roll
|
-45°～+45°
|
|
|
Maximum search angular velocity
|
≥100°/s
|
|
|
Stability accuracy
|
0.1mrad(1°/2HZ)
|
|
|
Angular position accuracy
|
≤0.3°
|
|
Visible light camera
|
Resolution and frame rate
|
1920×1080 @60fps
|
|
|
FOV
|
54.5°×32.3° (5.4mm prime lens)
|
|
Infrared camera
|
Resolution and frame rate
|
640×480@60fps
|
|
|
FOV
|
18.1°×13.6°(24mm prime lens)
|
|
Ranging
|
Laser Ranging
|
Range≥3km;
Accuracy±1m |
|
Tracking module
|
Frame rate
|
60Hz
|
|
|
Tracking speed
|
±48 Pixel/frame
|
|
System external interface
|
Control
|
RS232、NET
|
|
|
Video output
|
NET
|
|
Power supply
|
Power
|
12～28V
|
|
|
Power consumption
|
Av≤10W，Max≤20W
|
|
Environmental conditions
|
Operating temperature
|
-20℃～+50℃
|
|
|
Storage temperature
|
-40℃～+60℃
|
