Quick Details
-
Brand Name:
-
GOLD
-
Model Number:
-
GDSX-200 octane number and cetane number meter
-
Application of quality analyzer:
-
octane and cetane number test
-
Test range:
-
petrol octane number and cetane number of diesel
-
Accuracy:
-
Aviation gasoline ≤± 1.5/MON,Gasoline for motor vehicles ≤±1.5/RON
-
Precision(confidence level 95%):
-
Reproducibility: ≤±0.5/RON
-
Calibration accuracy:
-
≤±0.2/RON ≤±0.2/MON
-
Minimum scale:
-
0.1/RON 0.1/MON
-
Response time:
-
1s
-
Test result:
-
LCD display, it can store and print
-
Dimension:
-
210*100*40 mm
-
Power supply:
-
Charger:AC220V±10V/4.2V;One charge
Quick Details
-
Warranty:
-
3 years
-
Power:
-
Electronic
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
GOLD
-
Model Number:
-
GDSX-200 octane number and cetane number meter
-
Application of quality analyzer:
-
octane and cetane number test
-
Test range:
-
petrol octane number and cetane number of diesel
-
Accuracy:
-
Aviation gasoline ≤± 1.5/MON,Gasoline for motor vehicles ≤±1.5/RON
-
Precision(confidence level 95%):
-
Reproducibility: ≤±0.5/RON
-
Calibration accuracy:
-
≤±0.2/RON ≤±0.2/MON
-
Minimum scale:
-
0.1/RON 0.1/MON
-
Response time:
-
1s
-
Test result:
-
LCD display, it can store and print
-
Dimension:
-
210*100*40 mm
-
Power supply:
-
Charger:AC220V±10V/4.2V;One charge

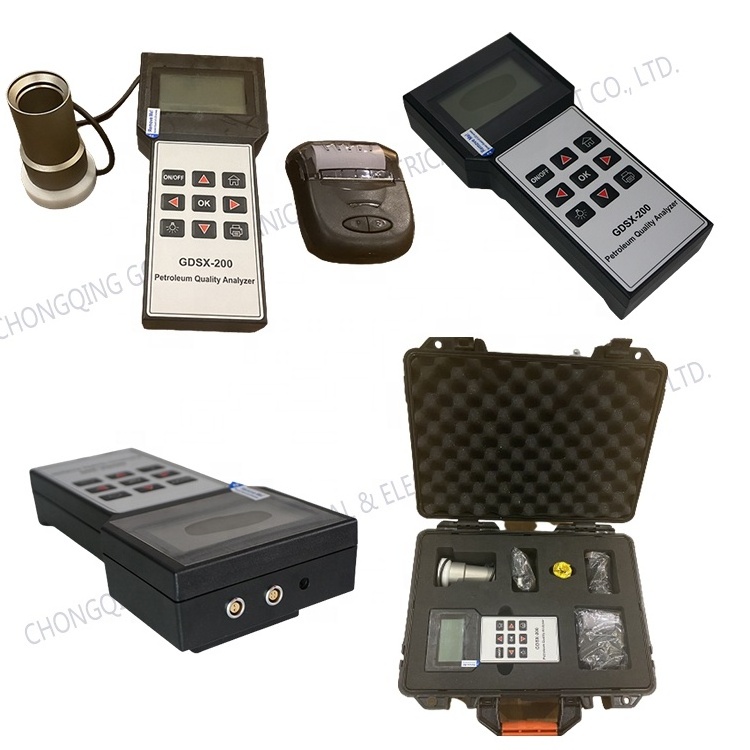

Rapid portable octane number and cetane number tester meter
Introduction:
The portable octane meter is a new generation detector for octane and cetane measurement, with international advanced theory, it can measure the oil’s octane and cetane precise value rapidly, store large amount of data; and all the results are printable. The interface is user-friendly. Its sensors adopt full-sealed design with alloying metal. With longer standby-cyclic charging battery, it applies in operation site, outdoor and lab.
Features:
1.The octane meter / cetane meter can measure both of gasoline’s octane value and diesel’s cetane value
2.Rapid and precise measurement, user-friendly operation, larger screen with Chinese language, EL background light make it’s easier under dark environment, Chinese menu is also available;
3.Tree years quality guarantee for circuit board: we promise for free replacement within three years for any non-artificial quality problems. The sensors adopt full sealed design with alloying metal. External cover has high strength, shock resistance and water/dust/moisture proof performance. As well as sponge inside.
4.Upper and lower limits pre-setting are available, the monitor will display when it’s over the limit, which is convenient for the users.
5.Auto-off function can save energy and realize low power consumption. There are 4 reliable batteries for recycling charging.
Measurement Theory:
The theory of the octane meter / cetane meter is based on the measurement of insulate-magnetic permeability and feature of electro-magnetic induction. By detecting the dielectric medium of oil and comparing with the data model, the detector can measure out the value of octane and cetane. The precise sensors can measure out parameters fluctuation of the tiny mediums, then get the result of octane and cetane.
Technical Parameters:
Measurement item: motor gasoline and diesel
Measurement of octane reach standards: ASTM D2699-86, ASTM D2700-86.
Measurement of diesel’s cetane reach standards: ASTM D4737-03
Operation condition: temperature of -10 ℃ ~+40 ℃ , relative humidity of 30%~81%R.H., barometric pressure of 64~106kPa.
|
The measurement unit of octane is ON (adjustable as users needed) |
40-120 |
|
Permissible error of octane, per unit (max) |
±0.5 |
|
Fluctuate range of octane, per unit (max) |
±0.2 |
|
The measurement unit of cetane is CN (adjustable as users needed) |
20-100 |
|
Permissible error of cetane, per unit CN (max) |
±1 |
|
Fluctuate range of cetane, per unit CN (max) |
±0.5 |
|
Measurement duration (second) |
<20 |
|
Critical value for battery when voltage is too low, V |
2.5 |
|
Monitor,mm(L×W×H) |
224*106*40 |
|
Sensor,mm |
60*100 |
| Weight, Kg (max) | 5 |
| Operation duration (unit: hour) | 15 |
| Display | LED screen, printable result |
|
Power consumption |
30ma |
