The aluminum alloy adjustable laser head is lighter than other metal laser heads, which can minimize the inertia error when the laser head moves. The four fixing screws on the laser head freely adjust the reflector angle for easy focusing. The structure is simple, the operation is convenient, the laser device is stable, and the maintenance cost is low. The outer oxide film has a beautiful appearance and is durable and not deformed for a long time.
- Product Details
- {{item.text}}
Quick Details
-
Cutting Thickness:
-
0-20mm
-
Control Software:
-
Ruida
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Dowin laser
-
Weight (KG):
-
450 KG
-
Products handled:
-
nonmetal
-
Working area:
-
1300*900mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Function:
-
cutting and engraving nonmetal materials
-
Keyword:
-
Co2 Laser Cutter
-
Laser power:
-
80W (option100W/130W/150W)
-
Software:
-
Ruida-6445S
-
Type:
-
Water Cooling CO2 Laser Engraving Machines
-
Product name:
-
laser engraving abs double color sheet
-
Cutting materials:
-
abs plastic laser cutting machine
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
0~3600mm/min
-
Cooling Mode:
-
WATER COOLING
-
Cutting Thickness:
-
0-20mm
-
Control Software:
-
Ruida
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Dowin laser
-
Weight (KG):
-
450 KG
-
Products handled:
-
nonmetal
-
Working area:
-
1300*900mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Function:
-
cutting and engraving nonmetal materials
-
Keyword:
-
Co2 Laser Cutter
-
Laser power:
-
80W (option100W/130W/150W)
-
Software:
-
Ruida-6445S
-
Type:
-
Water Cooling CO2 Laser Engraving Machines
-
Product name:
-
laser engraving abs double color sheet
-
Cutting materials:
-
abs plastic laser cutting machine

Product Application
>>Applicable Material:
Wood, Paper, Leather, Cloths, Organic glass, Plexiglass Resin, Acrylic, Woolens, Plastic, Rubber,Ceramic tile, Crystal, Bowler, Bamboo, Marble, Granite, Tile, Delrin, Double-color board, Glass, Painted metals, Anodized aluminum, EVA, etc.
>>Applicable Industry:
Advertising industry, Furniture and Decorative Industry, Musical Instrumental Industry, Carved gifts and Crafts Industry, Leather clothing industry, Architectural model industry, Packing and Printing Industry, Totem production industry.
What we offer with machine:
- working area min 1300*900mm
- Ruida controller RD-6445
- Honeycomb or knife working table
- Water chiller
- Exhaust fan
- Red dot position
- Air pump
- Linear guide (rail)
- Compatibility with Corel Draw, opportunities to work with two or more colors white different settings for cutting and engraving (whit one preparation - first engraving, then cutting)
- Rotary axis
Processing area
|

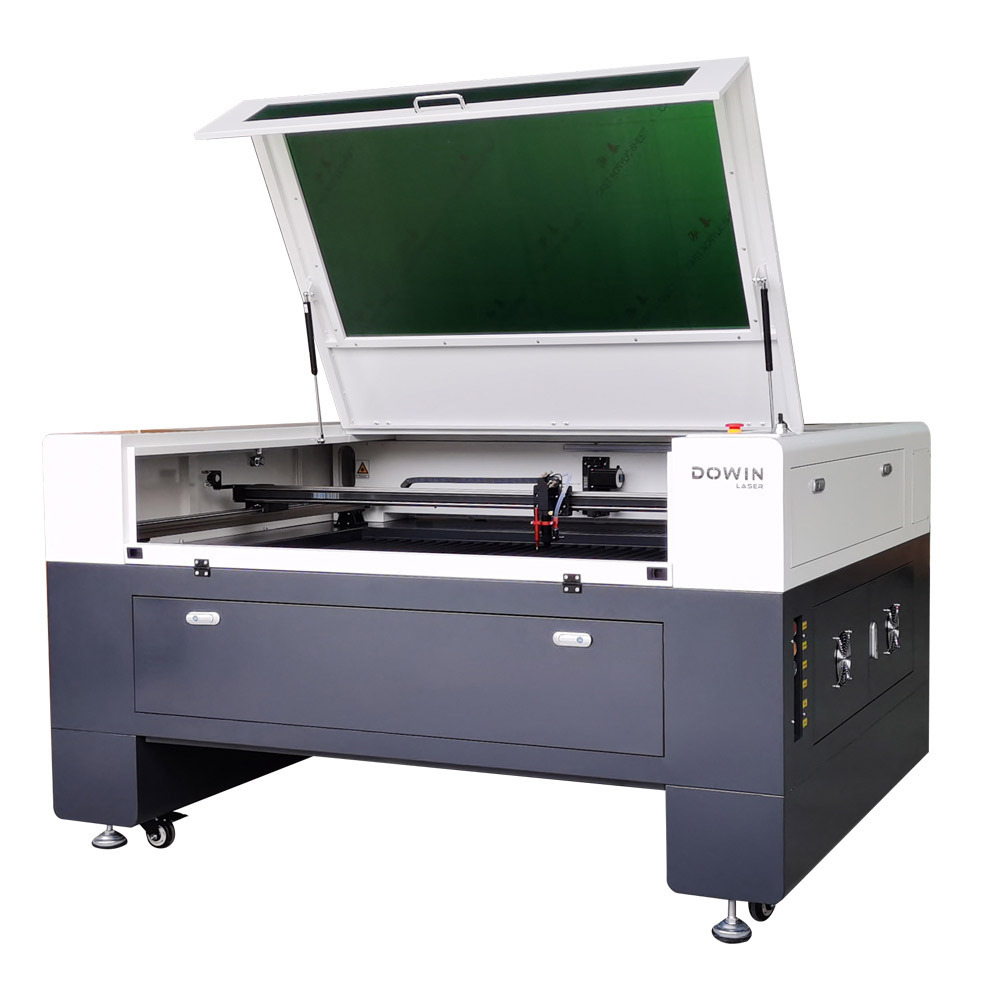

1300*900mm CO2 laser cutting machine
|
Laser tube
|
100W(Option130W/ 150W/180w/200w/300w)
|
Engraving speed
|
0-60000mm/min
|
Cutting speed
|
0-10000mm/min
|
Resolution ratio
|
<0.01mm
|
Location precision
|
<0.01mm
|
Voltage
|
110V±10%/ 220V±10% ,50HZ ~60HZ
|
Minimum character
|
Letter 1.0 x 1.0mm
|
Support graphic format
|
JPG, PNG, BMP, PLT, DST, DXF, CDR, AI, DSB, GIF, MNG, TIF, TGA, PCX, JP2, JPC, PGX, RAS, PNM, SKA, RAW , etc.
|
Laser tube's life
|
10000 hours
|
Interface
|
USB
|
Control system
|
RUIDA-6445
|
Electrical up-down system
|
Option
|
Rotary platform
|
Option
|

Adjustable laser head.
Ruida Control System
Control panel English, easy to operate and control. It has the function of re-engraving after breakpoint and power failure. The online control system can not only work without a computer, but also connect to a USB flash drive to directly read the U disk data engraving. You can also use a computer to drive the engraving machine through wireless WIFI.


RECI foot power laser tube(Optional).
Adopt the new high-efficiency CO2 laser tube of RECI, the laser beam is more stable, and the laser management theory has a working life of more than 10,000 hours.
High-strength linear guide.
Adopts Taiwan square rails,with more than 40%higher fuselage strength than iron sheet structure.This design prevents the machine from quivering,resonance and distortion during long term work.
High precision drive motor.
The X/Y axis uses a high-precision belt-driven Leadshine motor to improve response speed and cutting engraving accuracy. The average small brand used by other manufacturers is more accurate and has a longer service life.
Taiwan Hiwin Mute slider.
We use the Taiwan Hiwin silent slider to reduce the resistance of the laser head and the plotter during the movement, making the laser machine work more smoothly. The frictional resistance is reduced by 60% compared to the ordinary slider. It can adapt to the precise operation of the heavy-duty laser machine and ensure that the laser machine runs efficiently and stably for a long time.
Perfectly tidy power supply system.
The power supply system of the whole machine is strictly in accordance with international standards. Different control power signal lines adopt separate routing design, and the whole is clean and tidy, avoiding electromagnetic interference between various types of signal lines.
Electric lifting system..
The latest electric lifting system is fast and stable. Click on the control panel switch to freely adjust the height of the work platform. Materials of different thicknesses can be engraved.
Leadshine drivers system.
Adopting high-torque Leadshine stepper motor drivers.the engraving accuracy is 20% higher than other drivers and has a long service life.
Smoke exhaust system.
550W Big power exhaust fan to below the smoke back to the behind pipe, this could protect laser machine from damaged by fumes.
S&A Water cooling control system.
Industry chiller with compressor,Exclusive no water warning and automatic protection system, to protect the working life of laser tube effectively. The power control system has exclusive automatic protection equipment to ensure the stability and safety of the machine to the best.
WIFI control system(Optional).
Chuck rotary as (optional).
Dowin Tech Co.,Ltd.specializes in R&D and production of various laser equipment,such as laser cutting machine,laser engraving machine,laser marking machine and laser welding machine.All series machines are with One-three year's warranty.Within the laser engraving and cutting field,Dowin has passed CE and FDA qualifications.Facing the chances and challenges of Global Economic Integration,as well as being offered with opportunities of Knowledge Economy Era,brave and passionate, initiatively implement the enterprise management policy:"Scientific Management,Continuous Improvement,Rapid Development,Credit First, Quality First".We aim to be a professional, branding, and International suppliers for various industrial solutions.
Quality and credit goes all the way. Dowin a company surviving fierce market competition, has very strong national culture, and develops shoulder by shoulder with the world and this Era. We are determined to achieve our dreams step by step with the advantages of high technology.
1.Within 7 days since your local customs clearance: if the machine's any parts has any problems,we will change it free.
2.Exceed 7 days since your local customs clearance but within warranty period if the machine parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3.Exceed one year warranty period if the machine parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4.We offer 24 hours technical support by call, email.
5.Our technician can give you remote guide online(Skype / MSN/What's app/viber/Tel/Etc) if you have any question.
6.Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.
7.We have manual instruction and CD (Guiding Videos) for software Installation, operation and machine's using and maintenance.
Q: Do I need two laser machines to engrave and cut separately?
A: No, the laser machines we provide are capable of both engraving and cutting. One machine alone can fulfill the two purposes.
Q: How to distinguish laser tubes with different powers and applications?
1. Laser tube length (relatively speaking, the longer, the bigger)
2. Laser tube diameter (relatively speaking, the thicker, the bigger)
3. The bigger a laser tube power is, the deeper the machine can cut, but its light spot is bigger. So, it is better to use a machine with a low-power laser tube to engrave, such as 40W,50W , 60W or 80W.
Q: How can I tell the power of a laser tube has been exhausted?
A: The beam color of a new laser tube in operation is purple. When the power is gradually depleted, the color will become white.
Q: Is it better to increase blow to improve laser processing performance?
A: For some thick materials, it works. But, when carving some other materials, you need to blow less.
Q: Is a laser machine in operation harmful to our bodies?
A: It is not harmful as long as the laser is not exposed directly to skin and eyes.
Q: What's the guarantee, in case the machine breaks down?
The machine has one year guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free, if the problems are caused by quality problem under "normal use".
Q: How's the payment? How long is the delivery time?
Western Union(WU),Telegraphic Transfer(T/T) to our official company bank account or pay Via alibbaba trade assurance order.
For standard machines, it would be 3-5days; For non-standard machines and customized machines according to client's specific requirements, it would be 7-15 days.
