Quick Details
-
Brand Name:
-
BINGO
-
Model Number:
-
LS-CF-P07
-
Material:
-
Plastic
-
Mode:
-
float
-
Cable length:
-
1m, 2m, 3m, 5m ~50m
-
Cable material:
-
PVC, rubber
-
Cable spec.:
-
3*0.5mm2, 3*1mm2, 3*0.75mm2
Quick Details
-
Grade:
-
DIY
-
Warranty:
-
1 years
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
BINGO
-
Model Number:
-
LS-CF-P07
-
Material:
-
Plastic
-
Mode:
-
float
-
Cable length:
-
1m, 2m, 3m, 5m ~50m
-
Cable material:
-
PVC, rubber
-
Cable spec.:
-
3*0.5mm2, 3*1mm2, 3*0.75mm2
Product Description

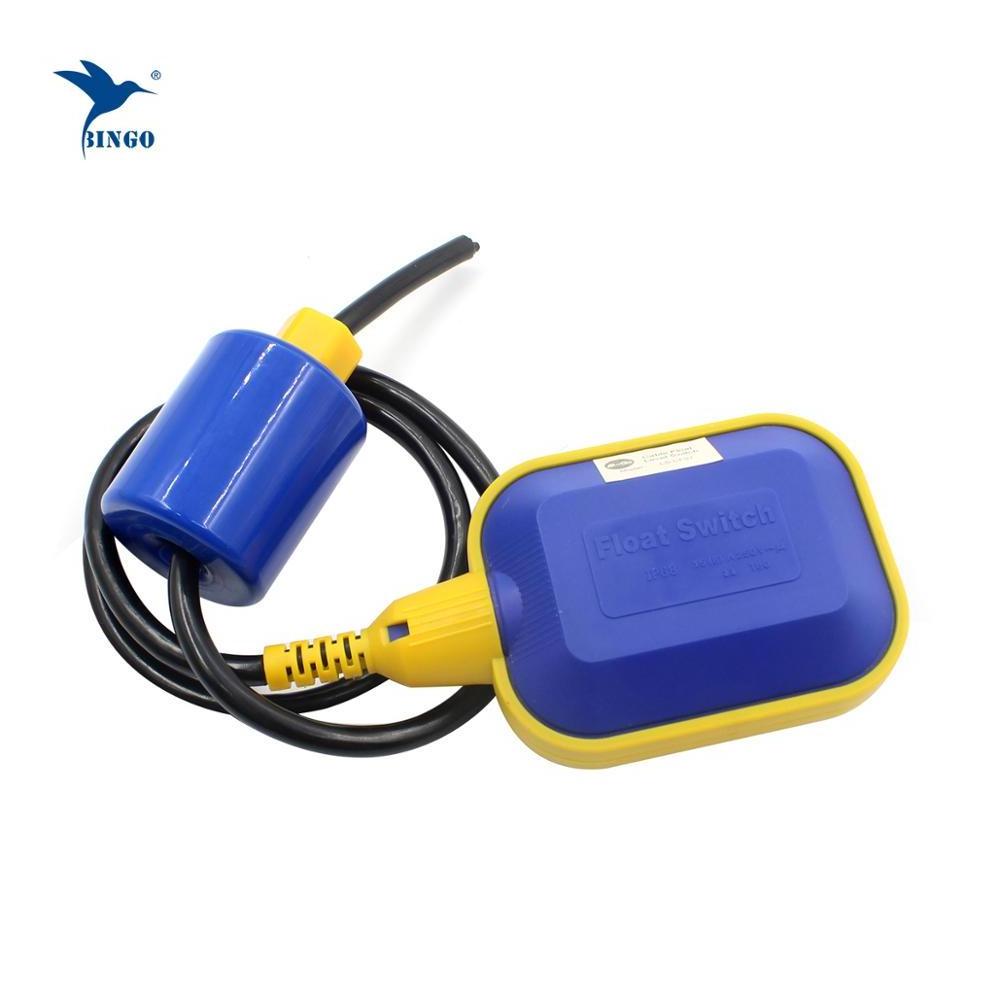

Electrical water level control float switch
Specification
|
Product Name
|
Electrical water level control float switch LS-CF-P07
|
|
Contact Capacity
|
AC250V/4A
|
|
Output Signal
|
SPST NO/NC
|
|
Working Temperature
|
0~60℃
|
|
Protection grade
|
IP 68
|
|
Float Material
|
PP/PVC
|
|
Application
|
water, sewage, acid-bases liquid
|
|
Working Pressure
|
±0.5Mpa
|
|
Cable
|
Material: PVC/rubber
Length: 4m(standard); length could be customized Conductor size: 3x0.5mm2 (standard) 3x0.75mm2 3x1.0 mm2 |
|
Installation Method
|
throw-in type vertical installation
|
