Automatic Ethiopian Injera Making Machine wonton Spring Roll Skin Maker making machine price
Automatic Ethiopian Injera Making Machine wonton Spring Roll Skin Maker making machine price
Automatic Ethiopian Injera Making Machine wonton Spring Roll Skin Maker making machine price
Automatic Ethiopian Injera Making Machine wonton Spring Roll Skin Maker making machine price
Automatic Ethiopian Injera Making Machine wonton Spring Roll Skin Maker making machine price
Automatic Ethiopian Injera Making Machine wonton Spring Roll Skin Maker making machine price
Automatic Ethiopian Injera Making Machine wonton Spring Roll Skin Maker making machine price
Automatic Ethiopian Injera Making Machine wonton Spring Roll Skin Maker making machine price

Automatic Ethiopian Injera Making Machine wonton Spring Roll Skin Maker making machine price

FOB Reference Price: Get Latest Price
≥1 Sets
US $3998
≥3 Sets
US $3950
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Voltage:
220V/380V
Power:
0.55KW
Dimension(L*W*H):
1350mm*800mm*4700mm
Weight:
320 KG
Marketing Type:
New Product 2023
Core Components:
Motor,gear,gearbox,bearing,conveyor
Name:
spring roll complete making machine
Material:
Stainless Steel
Application:
spring roll skin making machine
Function:
spring roll sheet machine
Usage:
spring roll making machine
Feature:
High Efficiency
Performance:
Professional
Capacity:
1000-9000pcs/h
Keywords:
Ethiopian Injera Making Machine
Product name:
wonton Spring Roll Skin Maker

Quick Details

Production Capacity:
1000-9000pcs/h
Place of Origin:
Henan, China
Brand Name:
Yize
Voltage:
220V/380V
Power:
0.55KW
Dimension(L*W*H):
1350mm*800mm*4700mm
Weight:
320 KG
Marketing Type:
New Product 2023
Core Components:
Motor,gear,gearbox,bearing,conveyor
Name:
spring roll complete making machine
Material:
Stainless Steel
Application:
spring roll skin making machine
Function:
spring roll sheet machine
Usage:
spring roll making machine
Feature:
High Efficiency
Performance:
Professional
Capacity:
1000-9000pcs/h
Keywords:
Ethiopian Injera Making Machine
Product name:
wonton Spring Roll Skin Maker
Product Description

Automatic Ethiopian Injera Making Machine wonton Spring Roll Skin Maker making machine price :

1.This production line may manufacture thickness 0.3-0.8millimeter spring roll skin, the curry cutie, the egg skin and the crepes, and may manufacture other laminated , food, suits in the food products factory , the hotel , the fast food restaurant and so on.
2.The Stainless Steel Spring Roll Sheet Production Line is made of Stainless Steel; it uses flour as material, you also can add some spice to make spring roll sheet. Operation is very easy and has high capacity! It can make round or rectangular (need Cutting Part) spring roll sheet. We can make new machines according to your sheet diameter.
Model
Host Power
Capacity
Sheet Max
Diameter
Thickness Of Wrapper
Dimensions
Weight
YZS-01
380V/6Kw
1000-2500Pcs/h
20cm
0.3-2mm
4.3*0.8*1.35m
320Kg
YZS-02
380V/13.2Kw
2500-3800Pcs/h
29cm
0.3-1mm
4.7*0.8*1.35m
800Kg
YZS-03
380V/38Kw
3500-4800Pcs/h
45cm
0.3-2mm
5.2*1.0*1.5m
1200Kg
YZS-04
380V/59Kw
5000-9000Pcs/h
22cm
0.3-1mm
6.2*1.3*2.5m
1300Kg
Round cake making scene

Features:
Right Angle cake making scene
Detailed Images

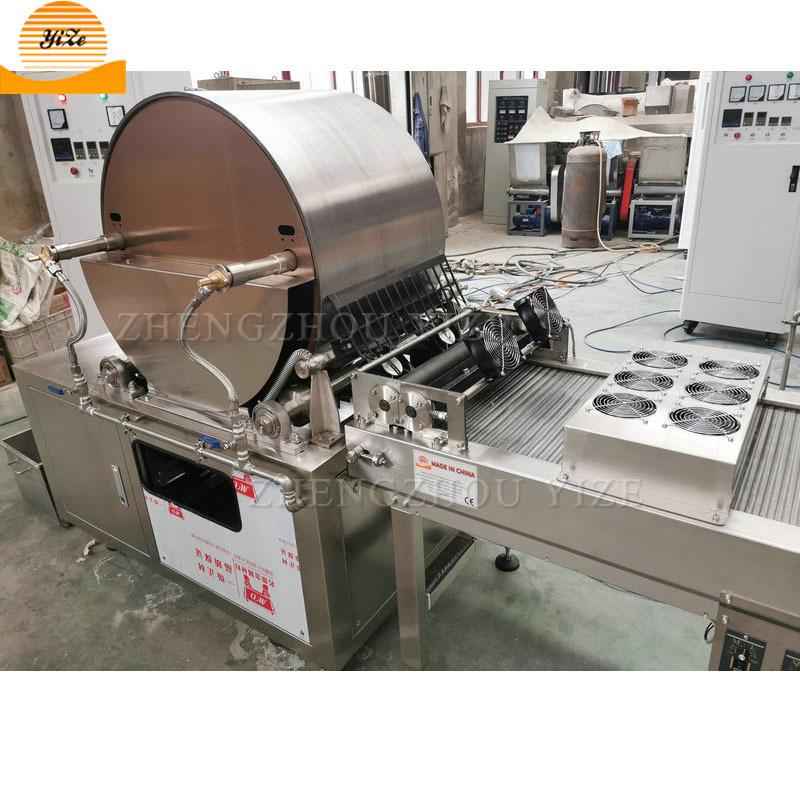

Automatic Ethiopian Injera Making Machine wonton Spring Roll Skin Maker making production line is mainly made of eight  parts:

1. Pulping Part; 2.Feed-in Part 3.Host Machine 4.Heating Part 5. Cutting part (Rectangular Shape) 6.Convey Part 7.Cooling Part 8.Folding Part



Pulping Part

Mixer Power: 1.1kw
Mixer Speed: 131rev/min
Mixer Capacity: 25kg/time/15min


Feed-in Part

Host Machine :

Power : 13.2KW electricity or gas

Heating Part :

1. Heating barrel dimension:500mm

2. temperature control:0-400 centigrade

Cutting part:

Power:0.2KW




Convey Part :

Power:0.55KW

Cooling Part

Warehouse show:
Application of the Automatic Ethiopian Injera Making Machine wonton Spring Roll Skin :
