Quick Details
-
Brand Name:
-
SX
-
Model Number:
-
G15-28W
-
Product name:
-
28 channels distro supply box
-
Brand name:
-
SX
-
Model number:
-
G15-28W
-
Power Input:
-
3 phase 5 wires 380V - 415V 63A 5pin power input and output
-
main breaker:
-
200A/3P main breaker
-
Display meter:
-
Digital voltage meters and ammeters
-
LED Indicator light:
-
Yes
-
packing material:
-
cartons and flight case
-
CE certification:
-
CE certification
-
Color:
-
Black
Quick Details
-
Voltage:
-
380V - 415V
-
Current:
-
100A
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SX
-
Model Number:
-
G15-28W
-
Product name:
-
28 channels distro supply box
-
Brand name:
-
SX
-
Model number:
-
G15-28W
-
Power Input:
-
3 phase 5 wires 380V - 415V 63A 5pin power input and output
-
main breaker:
-
200A/3P main breaker
-
Display meter:
-
Digital voltage meters and ammeters
-
LED Indicator light:
-
Yes
-
packing material:
-
cartons and flight case
-
CE certification:
-
CE certification
-
Color:
-
Black

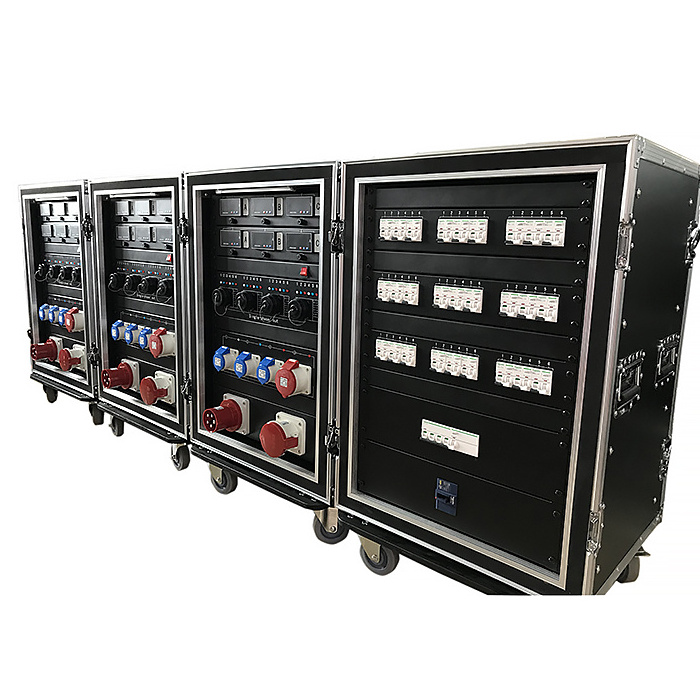

Distro Supply Box
This distro supply box with 3 phase 380V 63 amp power input, 28 channels socapex
outputs with RCD breakers for protection, it is very convenient to power supply the
electrical to the equipments for stage performance.
outputs with RCD breakers for protection, it is very convenient to power supply the
electrical to the equipments for stage performance.
Main Advantages:
1.Simple design, elegant looking, very convenient in using
2.Main breaker and branch breakers ensure the safety of equipments
3.With LED indicator light for each channel of power distributions
4.Digital V and A meters keep watching the changes of the voltage and current
5.Shockproof rack case packed
2.Main breaker and branch breakers ensure the safety of equipments
3.With LED indicator light for each channel of power distributions
4.Digital V and A meters keep watching the changes of the voltage and current
5.Shockproof rack case packed
Product Technical Specification
|
Product name
|
28 channels distro supply box
|
|
|
Brand name
|
SX
|
|
|
Model number
|
G15-28W
|
|
|
Power Input
|
3 phase 5 wires 380V - 415V 63A 5pin power input and output
|
|
|
Power Outputs
|
3 x 16A 3pin Weipu Ceeform sockets 230V(3kw/way)
1 x 32A 5pin Weipu Ceeform socket 380V (16kw/way) 4 x 19pin socapex outputs Kupo brand 230V(3kw/way) -- 24 ways |
|
|
Breaker Switches
|
|
|
|
main breaker
|
200A/3P main breaker Schneider brand
|
|
|
Output breakers
|
3 x 20A/2P RCD breakers for 3 x 16A 3pin outputs
1 x 40A/2P RCD breakers for 1 x 32A 5pin output 24 x 20A/2P RCD breakers for 4 x 19pin socapex outputs (24 ways) |
|
|
Display meter
|
Digital voltage meters and ammeters
|
|
|
LED Indicator light
|
Yes
|
|
|
Approval
|
|
|
|
CE certification
|
CE certification
|
|
|
Packing details
|
|
|
|
packing material
|
cartons and flight case
|
|
Production details
28 channels distro supply box with socapex outputs and RCD breakers
for protection
for protection
Production Flow
Step 1: Wiring the connectors on the rack panels
Step 2: Installing the connector panels on the power racks
Step 3: Production finished
