* 8 digits, 8.6mm character height
* Black or light-grey housing
* Dual input speed: 30Hz <-> 1kHz
* Short body: all models have a depth of 48.5mm
- Product Details
- {{item.text}}
Quick Details
Quick Details
-
Brand Name:
-
bluejay
-
Place of Origin:
-
Chongqing, China
-
Model Number:
-
H7EC

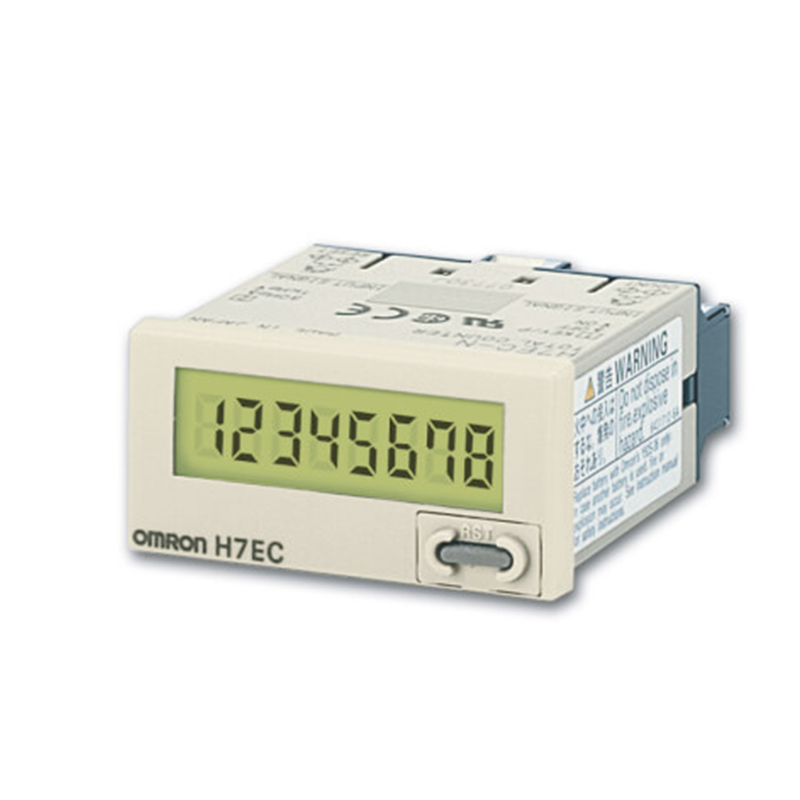

Product Description
The H7EC series is available with large display with 8.6mm character height. It includes models with backlight for improved visibility in dimly lit places. The H7E family includes total counters, time counters, tachometers and PCB-mounted counters.
Features
* 8 digits, 8.6mm character height
* Black or light-grey housing
* Dual input speed: 30Hz <-> 1kHz
* Short body: all models have a depth of 48.5mm
Specification
|
Parameter
|
Value
|
|
Type
|
Totalising
|
|
Size
|
1/32 DIN (48 x 24 mm)
|
|
Counting range
|
0 - 99999999
|
|
LCD backlight
|
Without backlight
|
|
Number of digits
|
8
|
|
Body color
|
Light grey
|
|
Installation type
|
On-panel
|
|
Terminal
|
Screw
|
|
Inputs
|
No-voltage
|
|
Speed
|
1000 Hz
|
|
Product Width (unpacked)
|
48 mm
|
|
Product Height (unpacked)
|
24 mm
|
|
Product Depth (unpacked)
|
48.5 mm
|
|
Relay output
|
0
|
Note: If you have any puzzles or requests about this product (including model number, data sheet or any other aspects), please contact us
immediately
.
Application
* Traffic Statistics
* Inventory management Goods storage statistics
* Package delivery statistics in express or logistics industry
