Quick Details
-
Weight:
-
500g
-
dimension:
-
134.2 * 86.82 * 28 mm
-
CPU:
-
Cortex-A8
-
RAM:
-
512MB
-
Flash:
-
4GB
-
Resolution:
-
800*480
-
USB:
-
1x USB 2.0 HOST, 1x USB 2.0 OTG customized to HOST or SLAVE
-
Power Consumption:
-
3.5w
-
Touch screen:
-
Capacitive, Resistive
-
Working Temperature:
-
-20°C ~ 70°C.
Quick Details
-
Type:
-
Industrial Embedded Computer
-
Brand Name:
-
Chipsee
-
Place of Origin:
-
China
-
Weight:
-
500g
-
dimension:
-
134.2 * 86.82 * 28 mm
-
CPU:
-
Cortex-A8
-
RAM:
-
512MB
-
Flash:
-
4GB
-
Resolution:
-
800*480
-
USB:
-
1x USB 2.0 HOST, 1x USB 2.0 OTG customized to HOST or SLAVE
-
Power Consumption:
-
3.5w
-
Touch screen:
-
Capacitive, Resistive
-
Working Temperature:
-
-20°C ~ 70°C.

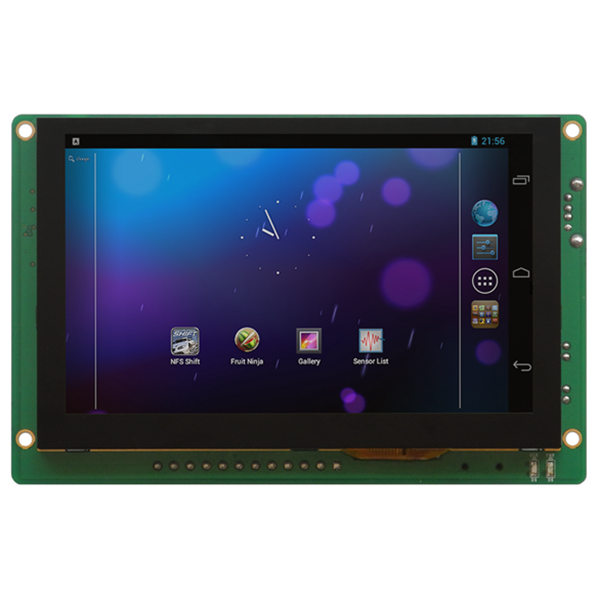

The EPC-A8-50-C (PN CS80480T050E) is a high-quality industrial embedded computer, that features a 5-inch LCD with capacitive touchscreen, an ARM Cortex-A8 processor with 512MB DDR3 RAM and 4GB eMMC Flash, 100Mb Ethernet, 2 USB 2.0 ports, 1 CAN port, 2RS232, 2 RS485 ports, as well as a 3.5mm audio connector.
Product Description
Please note a
USB WiFi/Bluetooth module can be added
. Contact us for more information.
The
CAN, RS485, RS232 connector
is a 12 Pin 3.81mm screw terminal connector (as you can see from the image).
Since this display has
4 UART
channels, they can be configured as RS232 or RS485. Please contact us if you require a different configuration.
The speed of the RS232 and the RS485 port is up to 115200 Baud.
The EPC-A8-50-C has one channel
100Mb Ethernet port
and one
TF (uSD) card
connector
. This device supports a TF card up to 32GB.
When it comes to audio capabilities, the EPC-A8-50-C has one 3.5mm Output/input connector and a
2W internal speaker
.
The typical power consumption is
3.5W
.
System-on-Module
This System-on-Module makes it possible to integrate a whole computer into a device, significantly simplifying the customization of the device. This is why we are able to offer fast turnaround customization of all our products.
At the core of each Chipsee product lies a System-on-Module. This means all the products share the same core. It makes your application easily upgradable – without needing to rewrite a single line of code your application is upgraded, thanks to the same System-on-Module.
This product features the CS-SOM335X-V3 System-on-Module, based on the AM3354 ARM Cortex-A8 processor.
The AM3354 microprocessor is enhanced with image, graphics processing, peripherals and industrial interface options such as EtherCAT and PROFIBUS. The devices support high-level operating systems (HLOS).
The microprocessor unit (MPU) subsystem is based on the ARM Cortex-A8 processor and the PowerVR SGX™ Graphics Accelerator subsystem provides 3D graphics acceleration to support display and gaming effects.
Contact us for further details if you want to buy the
CS-SOM335X-V3
separately.
Product data sheet:
|
Weight
|
1000 g
|
|
|
||
|
Dimensions
|
150 × 110 × 26.5 mm
|
150 × 110 × 26.5 mm
|
|
||
|
Form-factor
|
Embedded
|
|
|
||
|
Display Size (inch.)
|
5"
|
|
|
||
|
CPU
|
Cortex-A8
|
|
|
||
|
RAM
|
512MB
|
|
|
||
|
FLASH
|
4GB
|
|
|
||
|
Resolution
|
800*480
|
|
|
||
|
WiFi
|
External USB WiFi
|
|
|
||
|
Ethernet
|
1x LAN 1000M
|
|
|
||
|
USB
|
1x USB 2.0 HOST, 1x USB 2.0 OTG customized to HOST or SLAVE
|
|
|
||
|
GPIO
|
8x GPIO
|
|
|
||
|
RS485
|
2x RS485
|
|
|
||
|
CAN
|
1x CAN (can change to 2 channels)
|
|
|
||
|
RS232
|
2x RS232
|
|
|
||
|
Buzzer
|
Yes
|
|
|
||
|
Power Consumption
|
3.5W
|
|
|
||
|
Certification
|
CE
|
|
|
||
|
OS
|
Android, Angstrom,Debian, Linux（TI DVSDK）
|
|
|
||
|
External storage
|
TF (microSD) Card Slot
|
|
|
||
|
Touch Screen
|
Capacitive, Resistive
|
|
|
||
|
Power Input
|
6~36V DC
|
|
|
||
|
Working Temperature
|
-20°C ~ 70°C
|
|
|
||
EPC-A8-50-C features a
5’’
display with an
800*480
pixel resolution, and a
5-point capacitive touch screen
. 5-point capacitive
touchscreens offer a stable and accurate control over the device, as well as great image clarity.
touchscreens offer a stable and accurate control over the device, as well as great image clarity.
When it comes to the viewing angle, the screen offers various angles: top, bottom, left, and right view.
This product comes with a pre-installed OS of your choice. Please use the drop-down menu to choose the one you need, and we’ll pre-install it for you.
It supports the following operating systems:
* Android 4.1
* Linux with Qt 4.8
* Linux with Qt 5.5
* Debian 7.4
* Debian 8.4
* Angstrom v2012.12
* Linux with Qt 4.8
* Linux with Qt 5.5
* Debian 7.4
* Debian 8.4
* Angstrom v2012.12
Chipsee software engineers have created all the drivers, so every hardware feature is readily available for any standard
development tool.
Of course, if your project requires an OS that is not on the list, please contact us, and we’ll make a customized version that suits your needs.
development tool.
Of course, if your project requires an OS that is not on the list, please contact us, and we’ll make a customized version that suits your needs.
