Quick Details
-
Wheel Size(mm):
-
200
-
Surface Roughness(μm):
-
0.32 μm
-
Table Size(mm):
-
480x200
-
Place of Origin:
-
China
-
Voltage:
-
380V
-
Weight (KG):
-
650
-
Power (kW):
-
1.1
-
Product name:
-
Surface Grinding Machine
-
Table travel:
-
500x190mm
-
table size:
-
460x180mm
-
number of T-slot:
-
1x14
-
speed of working table:
-
3-20
-
wheel size:
-
180x13x31.75mm
-
wheel speed:
-
2850rpm
-
spindle motor:
-
1.1kw
-
coolant pump:
-
0.04kw
-
weight:
-
650kg
Quick Details
-
Grinding Length(mm):
-
460
-
Table Travel (X) (mm):
-
530
-
Table Travel (Y) (mm):
-
220
-
Wheel Size(mm):
-
200
-
Surface Roughness(μm):
-
0.32 μm
-
Table Size(mm):
-
480x200
-
Place of Origin:
-
China
-
Voltage:
-
380V
-
Weight (KG):
-
650
-
Power (kW):
-
1.1
-
Product name:
-
Surface Grinding Machine
-
Table travel:
-
500x190mm
-
table size:
-
460x180mm
-
number of T-slot:
-
1x14
-
speed of working table:
-
3-20
-
wheel size:
-
180x13x31.75mm
-
wheel speed:
-
2850rpm
-
spindle motor:
-
1.1kw
-
coolant pump:
-
0.04kw
-
weight:
-
650kg

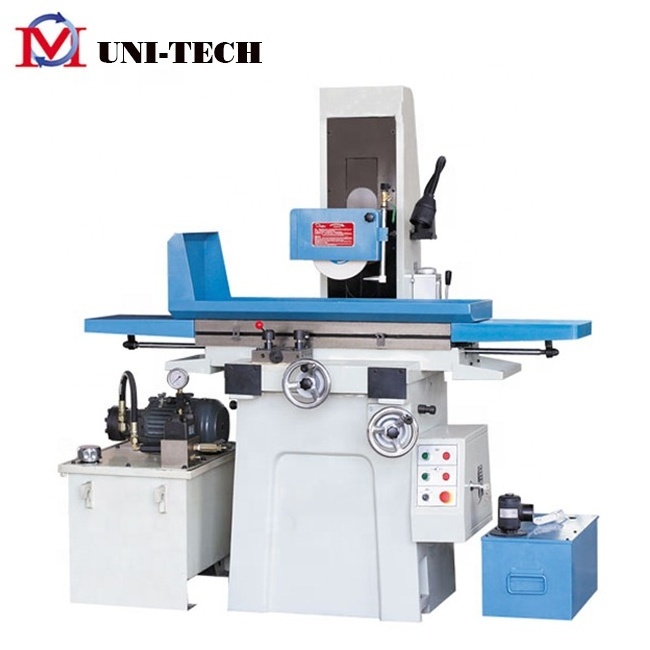

china small surface grinding grinder machine for metal
Main Features:
1.Hydraulic longitudinal table travel
2.Quality castings and Precision ball bearing supporting the spindle
3.Coolant system with nozzle and flow control valve
4.Cast iron machine body and stand for maximum rigidity and smooth operation
5.Vertical dial graduations 0.01mm
6.Cross travel graduations 0.02mm
7.Manual one shot lubrication pump
8.Wheel balancing stand and arbor
9.Halogen work light
Specification:
| MODEL | M618A | M820 | MY820 | MY1022 | MY1224 | MY1230 | |
| Table Size (L×W) (mm) | 460X180 | 180X220 | 480×220 | 540x250 | 600X300 | 750×300 | |
| Table travel(mm) | 500X190 | 530X220 | 530x220 | 560x260 | 630x320 | 780x320 | |
| Number of T -Slot(mm) | 1x14 | ||||||
| Speed of Working Table (m/min) | 3-20 | ||||||
| The Speed of Vertical Travel(mm/min) | 500 | 600 | |||||
| Max .distance from spindle to table (mm) | 335 | 450 | 450 | 530 | |||
| Table slide-way | V-type rail with Steel-ball | V-type rail with Steel-ball | Double V-type rail | ||||
| Cross feed on handwheel | revolution(mm) | 2.5 | 2.5 | 4 | |||
| graduation(mm) | 0.02 | 0.02 | 0.02 | ||||
| Vertical feed on handwheel | revolution(mm) | 1.25 | 1.25 | 2 | |||
| graduation(mm) | 0.01 | 0.01 | 0.01 | ||||
| The Speed of cross travel(mm/min) | Off and On | 0-5 | 0-6 | 1-20 | |||
| Continual | 150 | 240 | 50-500 | ||||
| Wheel speed | 50HZ | 2850 | 2850 | 2850 | 1450 | ||
| Wheel size(mm) |
Ø 180x13x Ø 31.75 |
Ø 200x20x Ø 31.75 |
Ø 200x20x Ø 31.75 |
Ø 250x25x Ø 76.2 | |||
| Spindle motor(kw) | 1.1 | 1.1 | 1.1 | 1.5 | 2.2 | ||
| Hydraulic station motor(kw) | 1.5 | 2.2 | |||||
| Coolant pump(kw) | 0.4 | 0.4 | 0.4 | 0.4 | |||
| Working pressure(mpa) | 3 | 4 | |||||
| Max. capacity(L/min) | 18 | 20 | |||||
| Fuel tank capacity (L) | 80 | ||||||
| N.W./ G.W. (kg) | 650/750 | 700/800 | 750/850 | 900/1000 | 1300/1430 | 1400/1530 | |
| Overall size(mm) |
1550×1060 ×1590 |
1680x1140 x1760 |
1680x1140 x1760 |
1680x1220 x1720 |
1960x1480 x1850 |
1960x1480 x1850 |
|
| Packing size(mm) |
1060×1170 ×1870 |
1140x1250 x1940 |
1630x1140 x1940 |
1630x1290 x1940 |
2000x1640 x2020 |
2000x1640 x2020 |
|
Standard accessories:
1. Tool box
2. Banlancing stand balancing bar
3. Flange wrench
4. Screwdriver
5. Banlancing screw
6. Open-end wrench
7. Inner hexagon spanner
8. Wheel dersser holder
9. Machine stand pad
10. Wheel flange
11. Wheel dresser
12.
Chuck
Optional accessories
l Magnetic filter
l Magnetic separater anf paper filter
l Elec-tro magnetic chuck
l 2 axis digital readout
l Universal grinding wheel dresser
l Demagnetizer
l Sinusoidal suction cup
l Vacuuming
If you are interested in small surface grinding machine, pls contact me
