Quick Details
-
Weight:
-
18ton
-
Thermal Power:
-
1.4MW/h (1t/h)
-
Working Pressure:
-
1.0/1.25 MPa
-
Outlet Water Temp.:
-
95/115 ℃
-
Design fuel:
-
biomass,wood,straw,rice husk,palm or peanut shell etc.
-
Thermal efficiency:
-
≥83%
-
Operation:
-
Hand Fired
-
Power Supply:
-
220V/380V/415V, 50HZ/60HZ(Arbitrary)
-
Color:
-
Customization
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yuji Boiler
-
Dimension(L*W*H):
-
5.14*2.5*3.1m
-
Weight:
-
18ton
-
Thermal Power:
-
1.4MW/h (1t/h)
-
Working Pressure:
-
1.0/1.25 MPa
-
Outlet Water Temp.:
-
95/115 ℃
-
Design fuel:
-
biomass,wood,straw,rice husk,palm or peanut shell etc.
-
Thermal efficiency:
-
≥83%
-
Operation:
-
Hand Fired
-
Power Supply:
-
220V/380V/415V, 50HZ/60HZ(Arbitrary)
-
Color:
-
Customization
Product Description

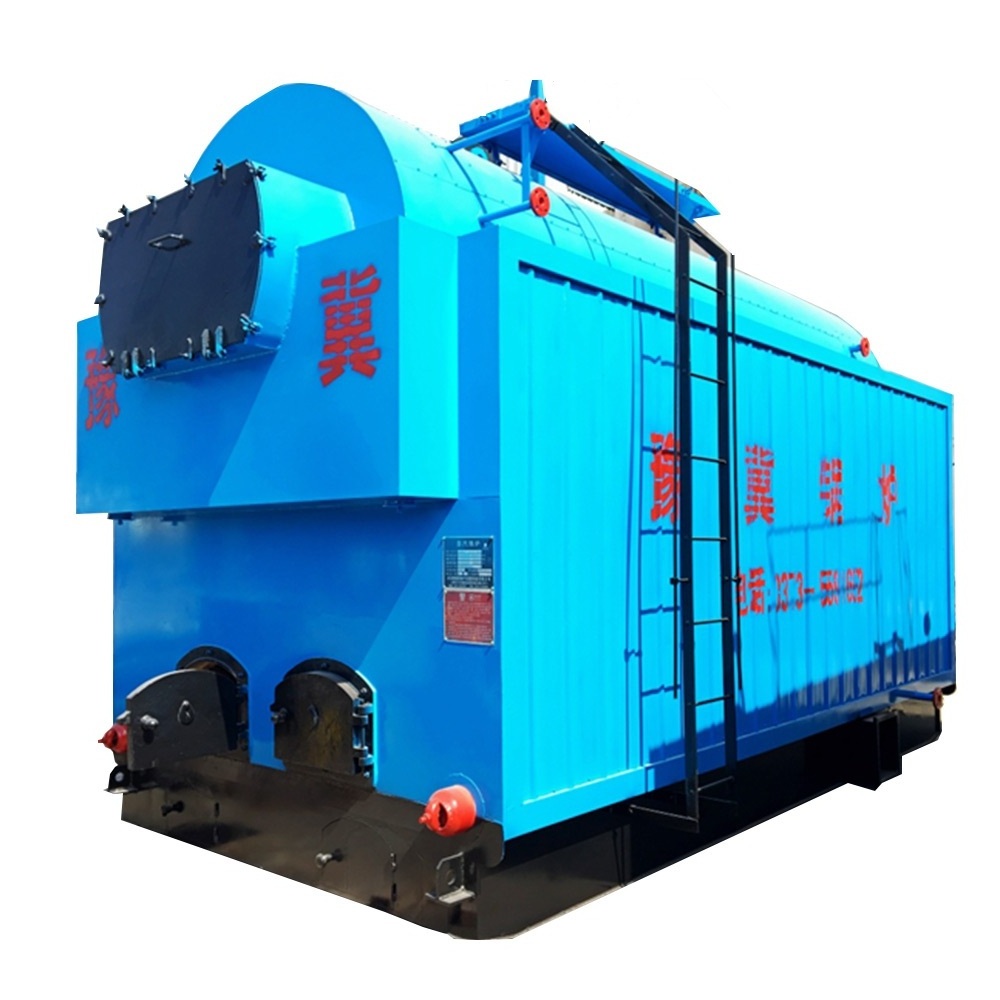

1400Kw Hot Water Boiler Biomass Fired Heater For Swimming Pool
DZH series boiler is designed with single drum boiler with
fire tube and water pipe
. It has
fast heat conduction, fast rise of steam pressure
, movable grate as combustion equipment, and manual or mechanical fuel delivery mode. It is flexible and controllable by human beings.
It is suitable for direct combustion of biomass of various shapes and has strong adaptability to fuel.
This series of boilers adopt the latest science and technology such as arched tube sheet and spiral corrugated smoke pipe, which effectively improves the overall efficiency of the boiler, and prevents the occurrence of grate coking, tube sheet leakage and other failures.
PS: we can customize boiler products for you according to the fuel, steam quantity and steam pressure required by customers.
PS: we can customize boiler products for you according to the fuel, steam quantity and steam pressure required by customers.
Steam output:
-
Steam volume: 0.5t/h-20t/h
-
Steam pressure: 0.7mpa-2.5mpa (optional as required)
-
Steam temperature: 0 ℃ - 226 ℃
-
Fuel: coal, anthracite, bituminous coal, lignite, etc.
Hot water output:
- Rated thermal power: 0.7~7Mw
- Work Pressure: 0.7~1.25Mpa
- Rated outlet temperature: 95~115°C
PS:
Customizable according to the fuel, steam quantity and steam pressure
Structure and parameters:
- Safety valve, water level alarm, pressure gauge and pressure controller ensure safe operation
- The boiler drum is equipped with limit low water level sensing safety device to avoid water shortage accident.
| DZH Hot Water Boiler | |||||||
| Model | Rated evaporation(t/h) | Rated pressure(MPa) | Steam temperature(℃) | thermal efficiency (%) | Fuel consumption (kg/h) | Size L×W×H (m) | Weight(t) |
| DZH 1-0.7/1.0-AII | 1 | 0.7/1.0 | 193/204 | ≥83 | 176.6 | 4.3×1.9×2.9 | 13.6 |
| DZH 2-1.0/1.25-AII | 2 | 1.0/1.25 | 193/204 | ≥83 | 352.3 | 5.14×2.5×3.1 | 18 |
| DZH 3-1.25/1.6-AII | 3 | 1.25/1.6 | 193/204 | ≥83 | 522.5 | 5.63×2.7×3.3 | 23 |
| DZH 4-1.25/1.6-AII | 4 | 1.25/1.6 | 193/204 | ≥83 | 697 | 5.92×2.7×3.5 | 25.3 |
| DZH 6-1.25/1.6-AII | 6 | 1.25/1.6 | 193/204 | ≥83 | 1044 | 6.2×3.0×3.58 | 31 |
| DZH 8-1.25/1.6-AII | 8 | 1.25/1.6 | 193/204 | ≥83 | 1396 | 6.8×3.4×3.6 | 34 |
| DZH 10-1.25/1.6-AII | 10 | 1.25/1.6 | 193/204 | ≥83 | 1744 | 7.5×3.4×3.7 | 39 |
| DZH Hot Water Boiler | |||||||
| Model | Rated power(mw) | Rated pressure(MPa) | thermal efficiency (%) | Fuel consumption (kg/h) | Water supply temperature(℃) | Return water temperature(℃) | Weight(t) |
| DZH0.7-0.7/95/70 | 0.7 | 0.7 | ≥83 | 174.3 | 95 | 70 | 13.6 |
| DZH1.4-1.0/95/70 | 1.4 | 1 | ≥83 | 348.6 | 95 | 70 | 18 |
| DZH2.1-1.0/95/70 | 2.1 | 1 | ≥83 | 517 | 95 | 70 | 23 |
| DZH2.8-1.0/95/70 | 2.8 | 1 | ≥83 | 687.2 | 95 | 70 | 25.3 |
| DZH4.2-1.25/95/70 | 4.2 | 1.25 | ≥83 | 1023.8 | 95 | 70 | 31 |
| DZH5.6-1.25/115/70 | 5.6 | 1.25 | ≥83 | 1374 | 115 | 70 | 34 |
| DZH7-1.25/115/70 | 7 | 1.25 | ≥83 | 1708 | 115 | 70 | 39 |
