Single hook electric cable hoist , monorails, single speed electric hoist or electric single speed hoist crane,floating crane, overhead crane ,vehicles equipment ,door control system ,engineering machinery ,lifting platform ,traveling crane ,hydraulic equipment and used for industrial remote control which are under 6 connection.
Remote control is widely used in lifting equipment ,construction machinery , loading/ unloading cargo , water supply system , data
transmission, the iron smelting and steel- making , automobile manufacturing ,paper making and chemical industry ,steel structure
processing ,galvanization ,shipbuilding , railroad ,bridge ,tunnel construction and other equipment and sites which can by worked
by radio controls .
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Henan, China
-
securiy code:
-
4.3billion
-
control distance:
-
up to 100m
-
transmit power:
-
<10dBm
-
receiver power:
-
AC/DC18-65V , Ac/DC65-440V
-
button:
-
4 double speed button + stop +mushroom emergency button
Quick Details
-
Function:
-
Waterproof, Auto shut-off
-
Brand Name:
-
JinYanding
-
Model Number:
-
F21-4D
-
Place of Origin:
-
Henan, China
-
securiy code:
-
4.3billion
-
control distance:
-
up to 100m
-
transmit power:
-
<10dBm
-
receiver power:
-
AC/DC18-65V , Ac/DC65-440V
-
button:
-
4 double speed button + stop +mushroom emergency button
Products Description

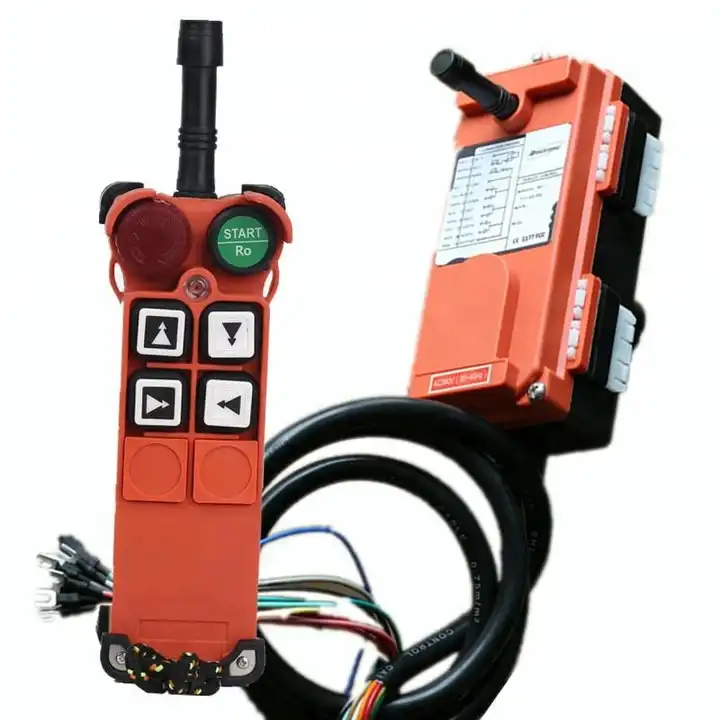

Product Features:
The shell is made of glass fiber reinforced nylon material, which makes the hand feel more comfortable and has higher strength. Equipped with multi-purpose indicator light, low power red light flashing slowly. If the system is not started, the red light blinks at a short time. If the system is working properly, the green light blinks at a slow time. Adapt to all kinds of
environment, strong and not easy to fall, carry crushing ability Intelligent wireless technology, signal stability, strong
penetration, not afraid of interference. It has 5 function buttons (4 single-speed buttons +1 start button +1 rotary emergency stop button); Control points can be up to 6: Safety key switch, Prevent unauthorized use of: Can be connected with the computer through the data line to set the key function mode; Battery voltage warning device, automatic shutdown circuit under voltage:
The shell is made of glass fiber reinforced nylon material, which makes the hand feel more comfortable and has higher strength. Equipped with multi-purpose indicator light, low power red light flashing slowly. If the system is not started, the red light blinks at a short time. If the system is working properly, the green light blinks at a slow time. Adapt to all kinds of
environment, strong and not easy to fall, carry crushing ability Intelligent wireless technology, signal stability, strong
penetration, not afraid of interference. It has 5 function buttons (4 single-speed buttons +1 start button +1 rotary emergency stop button); Control points can be up to 6: Safety key switch, Prevent unauthorized use of: Can be connected with the computer through the data line to set the key function mode; Battery voltage warning device, automatic shutdown circuit under voltage:
Application
Product Paramenters
|
Model
|
F21-4D
|
|
Application
|
Hoists, winches, lifts, doors, Grab, etc
|
|
Frequency
|
310.0325~331.165Mhz
|
|
Frequency generation:
|
Crystal (plug in)
|
|
Channel
|
80
|
|
Channel Spacing
|
0.2675MHz
|
|
Control motions
|
6
|
|
Control distance
|
Up to 100m
|
|
Certificates
|
CE, FCC, ISO
|
|
Number of push button
|
4 Double speed push button +1 start button +1emergency stop button
|
|
|
|
|
Unique code
|
Over 4.3billon unique ID codes .
|
|
Working temperature
|
-35°C ~ +80°C
|
|
Enclosure protection class
|
IP65
|
|
Transmitter power
|
AA-size batteries
|
|
Receiver power
|
AC 380v/220V/110v/48v/ 36v/12v or DC12V
|
|
Output capacity
|
Full sealed relay output with 5 amperes
|
|
Warranty
|
1 year
|
|
Material
|
glass fiber
|
Connection Diagram
