Quick Details
-
Brand Name:
-
SOFTEL
-
Use:
-
XPON/FTTH
-
Warranty Time:
-
12 Month
-
Operating case temperature:
-
0 to 70°C
-
With DDM:
-
yes
-
Rate:
-
1.2510Gb
-
TX Wavelength:
-
1490 nm
-
RX Wavelength:
-
1310 nm
-
Data Rate TX:
-
2.488 Gbps
-
Data Rate RX:
-
1.244 Gbps
-
Connector Type:
-
SC/LC
-
Temperature:
-
0 ~ 70
Quick Details
-
Type:
-
OLT
-
Model Number:
-
OLT-SFP-C+
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SOFTEL
-
Use:
-
XPON/FTTH
-
Warranty Time:
-
12 Month
-
Operating case temperature:
-
0 to 70°C
-
With DDM:
-
yes
-
Rate:
-
1.2510Gb
-
TX Wavelength:
-
1490 nm
-
RX Wavelength:
-
1310 nm
-
Data Rate TX:
-
2.488 Gbps
-
Data Rate RX:
-
1.244 Gbps
-
Connector Type:
-
SC/LC
-
Temperature:
-
0 ~ 70
Products Description
General

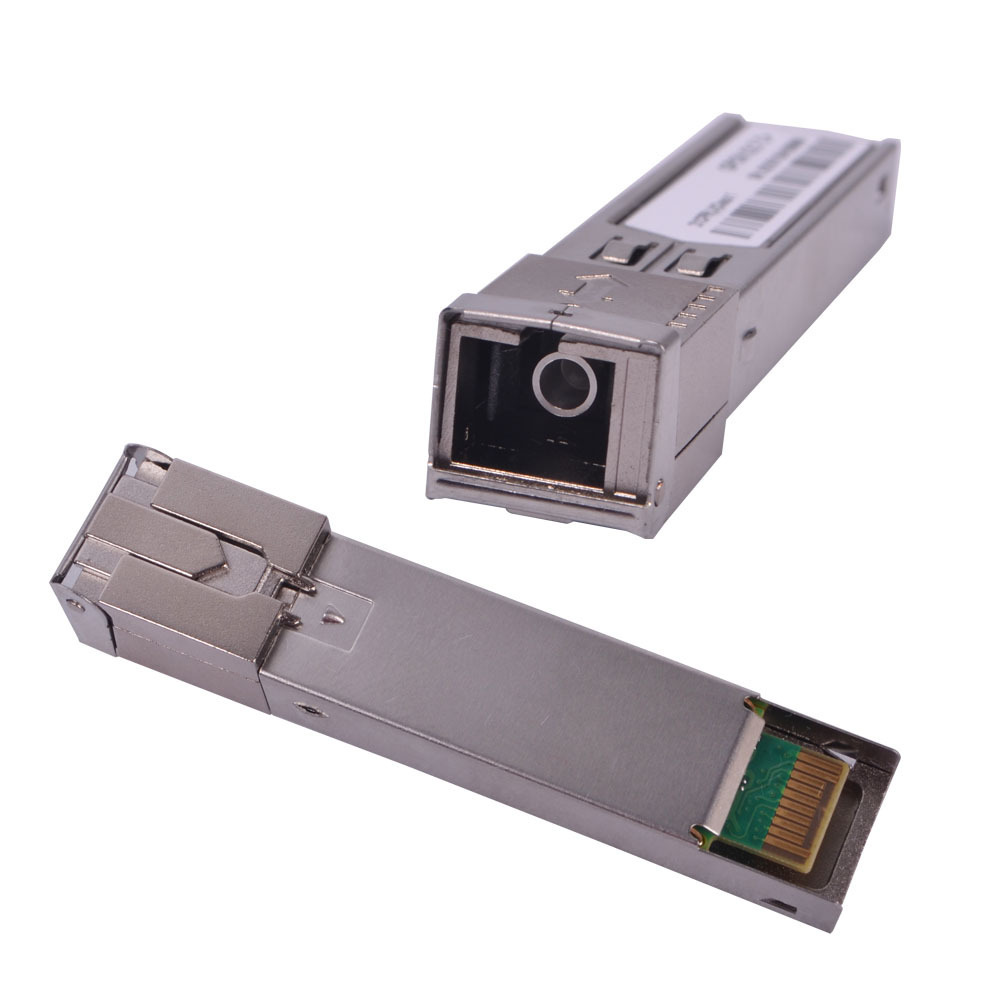

The AS60-PG43205-CPSS4 and AS60-PG43206-CPSS5 transceiver with supports data rate of typical 2.488 Gbps for GPON OLT application up to 20km transmission distance, it’s designed meeting with ITU-T G.984.2 Class B+/ C+ specifications. SC rececptacle is for optical interface.
1.1 Brief Views
•Single fiber bi-directional data links asymmetric TX 2488Mbps / RX1244Mbps application
•1490nm continuous-mode DFB laser transmitter and 1310nm burst-mode APD-TIA receiver
•Small Form Factor Pluggable package with SC/UPC Connector
•Reset burst-mode receiver design support more than 15dB dynamic range
•0 to 70°C operating temperature
•Single 3.3V power supply
•Digital diagnostic monitoring interface
•Digital burst RSSI function to monitor the input optical power level
•LVPECL compatible data input/output interface
•LVTTL transmitter disables the control
•LVTTL transmitter laser fault alarm
•LVTTL receiver Signal Detect
•Low EMI and excellent ESD protection
•Class I laser safety standard IEC-60825 compliant
•RoHS-6 compliance
1.2 Functional Features
•Gigabit-capable Passive Optical Networks (GPON) Class C++ 20Km
•Complies with SFP Multi-Source Agreement (MSA) SFF-8074i
•Complies with SFF-8472 Rev 9.5
•Complies with ITU-T G.984.2 Amendment 2
•Complies with FCC 47 CFR Part 15, Class B
1.3
Related Design and Spec Diagrams
1.4 Network Application
Typical Solution：FTTH
Typical Business：Internet, CATV, Voice, Wi-Fi
Typical Business：Internet, CATV, Voice, Wi-Fi
Specification
|
ABSOLUTE MAXIMUM RATING
|
|
|
|
|
||||
|
Parameter
|
Symbol
|
Min
|
Max
|
Unit
|
||||
|
Storage Ambient Temperature
|
TSTG
|
-40
|
85
|
°C
|
||||
|
Operating Case Temperature
|
Tc
|
0
|
70
|
°C
|
||||
|
Storage Humidity
|
OHs
|
5
|
95
|
%
|
||||
|
Power Supply Voltage
|
VCC
|
0
|
3.6
|
V
|
||||
|
Receiver Damaged Threshold |
|
+5
|
|
dBm
|
||||
Details Images
