Quick Details
-
Brand Name:
-
NEWLIFE
-
Voltage:
-
380V
-
Power:
-
12KW
-
Dimension(L*W*H):
-
3300*1600*1750mm
-
Weight:
-
3500 kg
-
Marketing Type:
-
hot sell lamination machine
-
Name:
-
PE Non woven lamination machine
-
Usage:
-
Baby diaper backsheet lamination
-
Raw material:
-
PE film and non woven
-
Final product:
-
lamniation film of baby diaper backsheet
-
Speed:
-
300m/min
-
Advantage 1:
-
High speed
-
Advantage 2:
-
Easy to operate
-
Color:
-
Customized Color
Quick Details
-
Production Capacity:
-
300 m/min
-
Product Type:
-
Diaper's backsheet machine
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
NEWLIFE
-
Voltage:
-
380V
-
Power:
-
12KW
-
Dimension(L*W*H):
-
3300*1600*1750mm
-
Weight:
-
3500 kg
-
Marketing Type:
-
hot sell lamination machine
-
Name:
-
PE Non woven lamination machine
-
Usage:
-
Baby diaper backsheet lamination
-
Raw material:
-
PE film and non woven
-
Final product:
-
lamniation film of baby diaper backsheet
-
Speed:
-
300m/min
-
Advantage 1:
-
High speed
-
Advantage 2:
-
Easy to operate
-
Color:
-
Customized Color

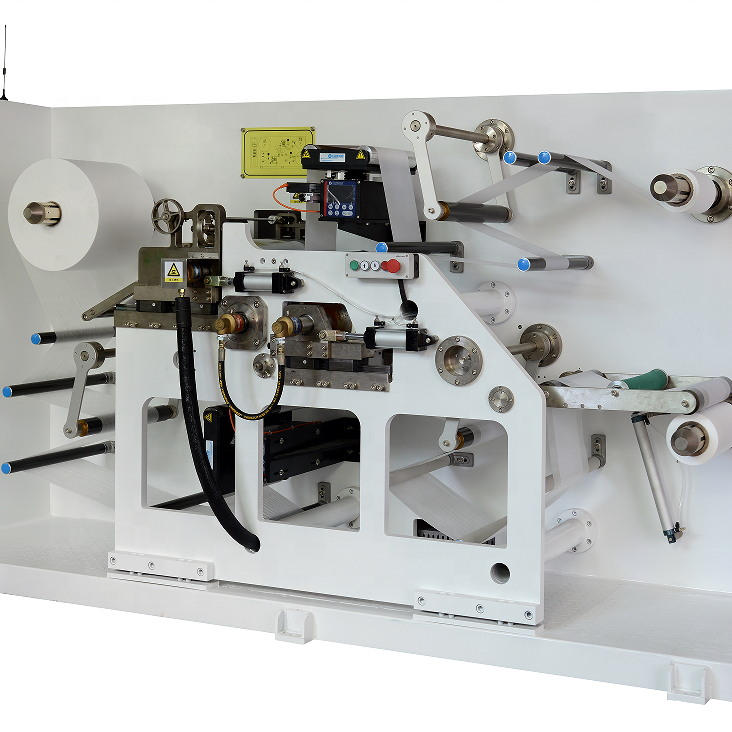

Small PE Non woven lamination machine, Baby diaper backsheet making machine
Features:
1. The machine use for laminating PE and Non woven, for making diapers backsheet.
2. Applying glue method: Hot melt glue spraying glue,glue evenly and save glue.
3. Servo motor is synchronized with the main drive signal,the open-loop tension makes
the winding more worry-free.
4. PLC built-in constant tension winding control.
5. Double station independent type misalignment rewinding,
6. With automatic web guirder,high precision. Machine working stable and high speed.
Parameter:
1. Machine speed: 300m/min(stable speed)
2. Web gurider: 2 pcs, precision:± 0.5mm
3. Non woven max unwind width: 340mm
4. Non woven max unwind diameter:750mm
5. PE film max unwind width: 340mm
6.PE film max unwind diameter:600mm
7.Tension control unit: 3pcs
8. Inner core diameter: φ 76mm
9.Gas source minimum pressure: 0.6MPa
10. Power supply: 380V, 50/60HZ.
11. Max power: 12 KW
12. Machine dimension: 3300*1600*1750mm(L*W*H)
13. Machine weight: about 5500 kgs, just for reference.
14. Glue grams: 1-2g/sqm
15. Glue melter tank capacity: 30KGS
16. Glue gun: 1 pcs, fiber spraying gun (glue spraying max width: 200mm)
17. Wall thickness: 30mm
18.Laminating roller width: 400mm
19. Laminating roller diameter:φ 210mm
20. Rewind max diameter:φ 700mm.
