Quick Details
-
Type:
-
SMGU1-PV-1000 40KA
-
Rated voltage:
-
DC 1000V
-
Working environment:
-
-40°C- +85°C
-
Relative humidity:
-
≤95% (25°C
-
Continuance working voltage:
-
385/420
-
Response time t(nS):
-
<25
-
Material:
-
Plastic
-
Poles:
-
2P/3P
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CEMIG
-
Model Number:
-
SMGU1-PV-1000
-
Type:
-
SMGU1-PV-1000 40KA
-
Rated voltage:
-
DC 1000V
-
Working environment:
-
-40°C- +85°C
-
Relative humidity:
-
≤95% (25°C
-
Continuance working voltage:
-
385/420
-
Response time t(nS):
-
<25
-
Material:
-
Plastic
-
Poles:
-
2P/3P

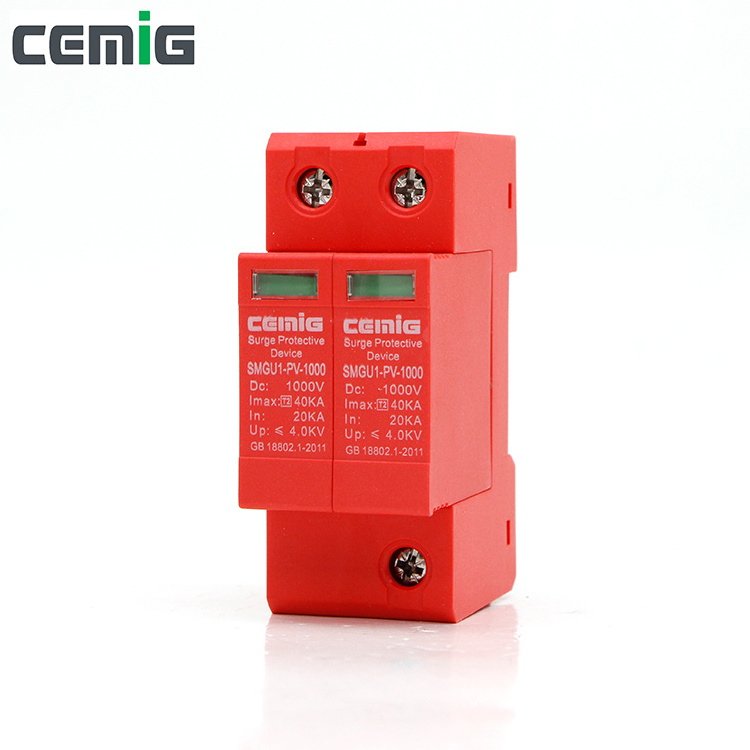

SMGU1-PV series Strong protection function: Max current amount 40KA (8/20μS), low remnant voltage, adopt in dependent information property right and high performance sensitivity resistance components, the expertise inner metal screen protection module, built-in over-current a and over-heat, controlled by temperature controlle open circuit technoloty, can ralized Kevin connection.
Full-scale protection: adopted TNR arrested module to be applicable to all kinds of netty
Adaptive different requirements: remote control function(FS)
Easy maintains: Module design, protection investment.
Display function of malfuction: working condition of arrester are clear at a glance
Convenient installation: Standard size, small volume.
SMGU1-PV series surge arrester is applicable to DC1000V power supply system, widely applicable to all kinds of power supply Second class(B class) over voltage protection. General installed in low voltage main distribution box or low voltage general switch cabinet of building.
Technical Paramter
| Model | SMGU1-PV-500 | SMGU1-PV-800 | SMGU1-PV-1000 |
| Pole NO. | 2P 3P | ||
| Max. Continuouos Operating Voltage | 500VDC | 800VDC | 1000VDC |
| Nominal Discharge Current | 20kA | 20kA | 20kA |
| Max. Discharge Current | 40kA | 40kA | 40kA |
| Protection Level | 2.5 | 3.0 | 4.0 |
| Response Time | 25 | 25 | 25 |
| Leakage Current | not more than 20 | not more than 20 | not more than 20 |
Outline and Installation Dimension
