Quick Details
-
Model Number:
-
A86
-
Weight:
-
72KG
-
Aspect Ratio:
-
16:9
-
Packing Dimension:
-
2060*1270*200mm
-
writing method:
-
pen/finger touched
-
Product Dimension:
-
86inch
-
Screen Size:
-
1951*1146*92mm
-
Product name:
-
Interactive Smart Board
-
Application:
-
Education.Training.Office
-
Type:
-
Classroom Interactive Whiteboard
-
Function:
-
Writing+Painting+Meeting
-
Size:
-
55"65" 75" 86" 98" Optional
-
Material:
-
Aluminum Alloy Frame
-
Certificates:
-
CE FCC ROHS
-
Keyword:
-
Interactive Education Smart Board
-
Use:
-
Wrinting Board
-
MOQ:
-
1
Quick Details
-
Panel Size:
-
1895*1066mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HUAIN
-
Model Number:
-
A86
-
Weight:
-
72KG
-
Aspect Ratio:
-
16:9
-
Packing Dimension:
-
2060*1270*200mm
-
writing method:
-
pen/finger touched
-
Product Dimension:
-
86inch
-
Screen Size:
-
1951*1146*92mm
-
Product name:
-
Interactive Smart Board
-
Application:
-
Education.Training.Office
-
Type:
-
Classroom Interactive Whiteboard
-
Function:
-
Writing+Painting+Meeting
-
Size:
-
55"65" 75" 86" 98" Optional
-
Material:
-
Aluminum Alloy Frame
-
Certificates:
-
CE FCC ROHS
-
Keyword:
-
Interactive Education Smart Board
-
Use:
-
Wrinting Board
-
MOQ:
-
1
Product Overviews

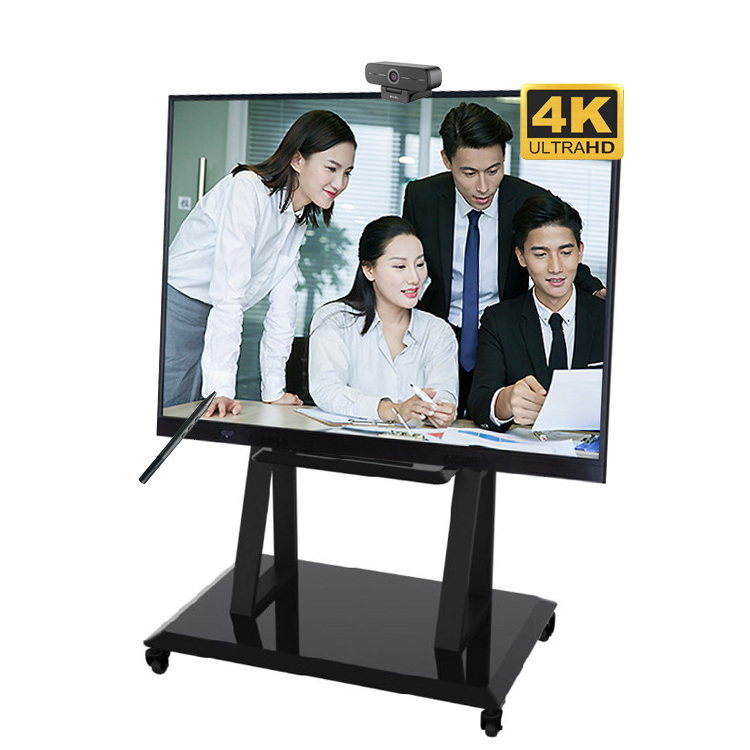

HUAIN Video display system: smart
interactive whiteboard
·
True 4K ultra-high definition display, double-sided AG tempered glass, 92% high color gamut.
·
Built in intelligent core and operating system.
·
The system can be optionally equipped with plug-in PC modules.
·
Touc h technology: (1) Anti light interference. (2) Fast response, high fluency in writing and presentation.
·
Display, touc h and intelligent core are integrated.
·
In standby mode, HDM-I channel signal is input for intelligent wake-up.
·
Support wireless screen transfer function.
·
Support WIFI 6.
·
It has the channel memory function. When the machine is turned on, it will enter the home page by default.
·
It has the function of user-defined named channels.
·
Front USB 3.0 port switched with the channel.
·
Support intelligent light sensing adjustment backlight.
Product Description
Specification
|
Dimensions
|
86 inches（optional）
|
|
|
Response time
|
8 ms
|
|
|
Picture scale
|
16:09
|
|
|
Maximum display size
|
1652.5（H） × 930.5（V）mm
|
|
|
resolving power
|
3840（H） × 2160（V）
|
|
|
Pixel spacing
|
zero point four two nine × 0.429mm
|
|
|
Refresh frequency
|
60Hz
|
|
|
Chromaticity
|
1.07B (10bit)
|
|
|
Gamut
|
NTSC(Typ)92%
|
|
|
Visual angle
|
178°(H/V)
|
|
|
Backlight type
|
DLED
|
|
|
Screen brightness
|
(Typ,) 350cd/m2
|
|
|
life
|
≥ 50000 hours
|
|
|
Audio parameters
|
|
|
|
Vocal tract
|
two
|
|
|
Power
|
2 x 15W@ 8Ω
|
|
|
Touching writing system
|
|
|
|
Infrared recognition
|
Recognition principle
|
|
|
Support system
|
Windows10/Windows8/Windows7/Windows XP/Android/Linux/Mac OS X/Chrome
|
|
|
Touched points
|
20 touching
|
|
|
Minimum identifier
|
2mm
|
|
|
Input mode
|
Fingers, touch pens and other opaque objects
|
|
|
Response time
|
＜ 10 ms
|
|
|
Touch accuracy
|
± 1mm (more than 90% of the touch area)
|
|
|
Writing height
|
TYP 2.5mm (1mm optional)
|
|
|
Communication mode
|
Full speed USB
|
|
|
Surface hardness of writing screen
|
7H
|
|
|
Output Coordinates
|
32767 (W) × 32767(D)
|
|
|
wireless
|
|
|
|
edition
|
IEEE 802.11 ac/b/g/n/a/ax
|
|
|
Operating frequency
|
2.4GHz/5GHz
|
|
|
Working distance
|
12m
|
|
