Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
V1
-
Product name:
-

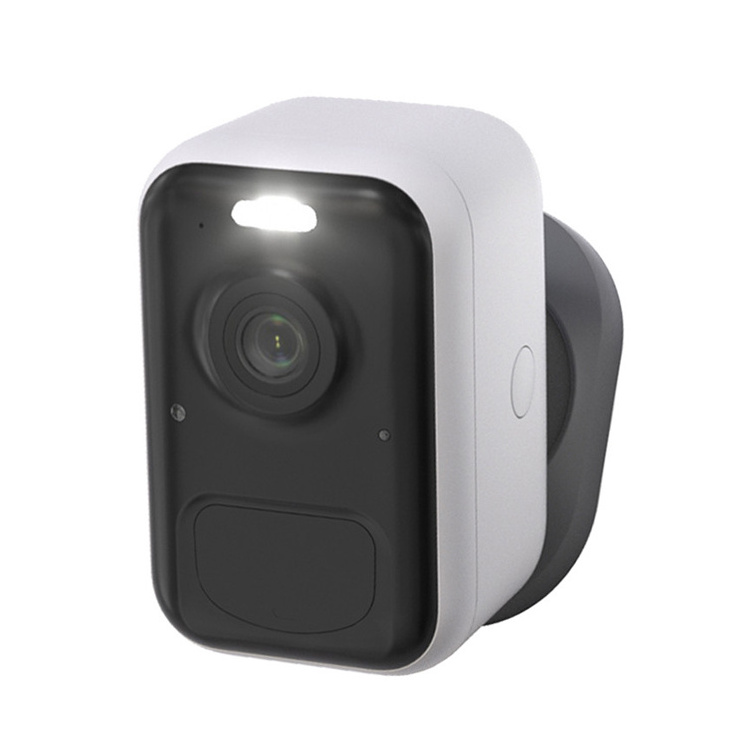

4MP lowpower PIR battery ptz wifi wireless camera
-
Resolution:
-
4MP
-
Color:
-
ABS+PC,Color customized (optional)
-
Lens:
-
M12, f: 2.97mm, F1.6, 4-megapixel
-
Material + Process:
-
ABS+PC
-
Battery:
-
9600mAh
-
detection:
-
human contour detection, activity zone, vechicle detection
-
Waterproof:
-
IP65
-
Power Supply:
-
1 Micro USB interface
Quick Details
-
Special Features:
-
Human Motion Tracking, Motion Detection, Waterproof / Weatherproof, One-way Audio, Low Power, people counting, Human contour detection, activity zone, vechicle detection, pet snapshot and package inspection
-
Function:
-
Alarm I/O, RESET, Waterproof / Weatherproof
-
Customized support:
-
Online technical support, Customized logo, OEM, ODM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
V1
-
Product name:
-
4MP lowpower PIR battery ptz wifi wireless camera
-
Resolution:
-
4MP
-
Color:
-
ABS+PC,Color customized (optional)
-
Lens:
-
M12, f: 2.97mm, F1.6, 4-megapixel
-
Material + Process:
-
ABS+PC
-
Battery:
-
9600mAh
-
detection:
-
human contour detection, activity zone, vechicle detection
-
Waterproof:
-
IP65
-
Power Supply:
-
1 Micro USB interface
Product Description
Product Features
◆ Easy to install and use◆ Clear and smooth video browsing; intelligent transmission giving full play to capabilities of the
network
◆ Online firmware upgrade, and synchronous updating of the functions and experience
◆ Two-way voice intercom supported; echo eliminated; noise suppressed
◆ Compatible with Android; remote real-time monitoring supported with the IOS intelligent terminal
◆4-megapixel starlight high resolution (2560X1440) for clear picture quality
◆ Dual-source lighting for night vision (night vision distance = 7 m) comprising infrared lamp / white-light source; color images available for night vision.
◆ The built-in rechargeable lithium battery with long battery life functions for up to 10 months under normal circumstances and
can stand by for 18 months
◆2.4G Wi-Fi supported (IEEE802.11b/g/n)
◆ Cloud storage, Micro SD card (up to 128GB) and mobile phone video recording supported
◆ QR code intelligent connection and network allocation supported
◆ Supporting human contour detection, activity zone, vechicledetection, pet snapshot and package inspection (value added service
required)
◆ IP65 Easy installation: support 1/4 universal screw bracket and magnetic suction bracket
◆ Easy to install and use◆ Clear and smooth video browsing; intelligent transmission giving full play to capabilities of the
network
◆ Online firmware upgrade, and synchronous updating of the functions and experience
◆ Two-way voice intercom supported; echo eliminated; noise suppressed
◆ Compatible with Android; remote real-time monitoring supported with the IOS intelligent terminal
◆4-megapixel starlight high resolution (2560X1440) for clear picture quality
◆ Dual-source lighting for night vision (night vision distance = 7 m) comprising infrared lamp / white-light source; color images available for night vision.
◆ The built-in rechargeable lithium battery with long battery life functions for up to 10 months under normal circumstances and
can stand by for 18 months
◆2.4G Wi-Fi supported (IEEE802.11b/g/n)
◆ Cloud storage, Micro SD card (up to 128GB) and mobile phone video recording supported
◆ QR code intelligent connection and network allocation supported
◆ Supporting human contour detection, activity zone, vechicledetection, pet snapshot and package inspection (value added service
required)
◆ IP65 Easy installation: support 1/4 universal screw bracket and magnetic suction bracket
|
Items
|
|
Specifications
|
|
|
Master Processor
|
SOC
|
Ingenic T31ZX
|
|
|
Image Sensor
|
Sensor
|
1/3" color CMOS Sensor
|
|
|
|
Lens
|
M12, f: 2.97mm, F1.6, 4-megapixel
|
|
|
|
Visual angle
|
H (horizontal) 105 degrees; V (vertical) 58.3 degrees; D (diagonal) 123.6 degrees
|
|
|
|
Minimum Illumination
|
0.01 Lux
|
|
|
Audio
|
Input/Output
|
Two-way voice intercom available (built-in Microphone and speaker)
|
|
|
|
Audio Compressing Method
|
AAC
|
|
|
Video
|
Video Compressing Method
|
H.265
|
|
|
|
Lighting Frequency
|
50Hz, 60Hz
|
|
|
|
Image Frame Rate
|
15 fps
|
|
|
|
Maximum Image Resolution
|
2560*1440P
|
|
|
|
Light Source for Night Vision
|
Mid-power infrared lamp (850nm in wavelength) / dual-source white-light source with an irradiation distance of 7m
|
|
|
Network
|
Wireless Network
|
2.4G Wi-Fi (IEEE802.11b/g/n), built-in antenna
|
|
|
|
Protocols Supported
|
TCP/IP, UDP/IP, DHCP, RTMP, MUTP
|
|
|
|
IP Address Supported
|
Dynamic IP address supported
|
|
|
AI
|
Intelligent Features
|
Human contour detection, activity zone, vechicle detection, pet snapshot and package inspection
|
|
|
Alarm Notification
|
Alarm Methods
|
Alarm push by mobile APP，white light flashing and alarm sound
|
|
|
Wake-up
|
Wake-up Method
|
PIR body induction wake-up, and remote wake-up
|
|
|
Video Recording
|
Recording Method
|
Alarm triggered recording, and manual recording
|
|
|
|
Video Storage
|
Cloud storage, local Micro SD card, and mobile phone memory
|
|
|
Indicator Lamps
|
LED Indicator
|
RGB tri-color lamp indicating the status of power/network signal/functionality
|
|
|
Battery
|
Capacity
|
9600mAh
|
|
|
|
Removability
|
Unremovable
|
|
|
|
Battery Life
|
10 months (provided that 25 10s videos are recorded per day)
|
|
|
|
Standby Time
|
1 year
|
|
|
|
Charging Voltage
|
DV 5V+-5%/1.5A
|
|
|
|
Charge Time
|
Within 10 hours
|
|
|
|
Protection Method
|
IP65 is dustproof and waterproof; over-current/over-discharge/over-charge/short circuit/charging protection at high & low
temperatures |
|
|
Power Consumption
|
Standby Power Consumption
|
1.93mW（4V 0.48mA）
|
|
|
|
Power Consumption of Daytime Operation
|
1.11W（3.87V 288mA）
|
|
|
|
Power Consumption of Operation at Night
|
2.02W（3.73V 542mA）
|
|
|
Interfaces
|
Power Supply
|
1 Micro USB interface
|
|
|
|
SD Card
|
1 Micro SD card (up to 128GB supported)
|
|
|
|
Keys
|
1 reboot key and 1 on/off key
|
|
|
Installation Method
|
Installation Method
|
1/4 universal screw holes
|
|
|
Environment
|
Dustproof and waterproof
|
IP65
|
|
|
|
Operating Environment
|
-10° ~ 45°C /10% ~ 80% (no condensation)
|
|
|
|
Storage Environment
|
-20°C ~ 60° /0% ~ 90% (no condensation)
|
|
|
Specifications
|
Size (LxWxH)
|
97.4mm×63.3mm×72.1mm (with bracket excluded)
|
|
|
|
Material + Process
|
ABS+PC
|
|
|
|
Color
|
ABS+PC，Color customized (optional）
|
|
|
Certifications
|
Certificate
|
CE,ROHS,FCC，UN38.3
|
|
