Quick Details
-
Model Number:
-
RTU5024
-
DC Power supply:
-
Standard adapter: DC12V/1A
-
Power consumption:
-
12V input Max. 50mA/Average 25mA
-
Frequency range:
-
850/900/1800/1900MHz ;
-
SIM Card:
-
Supporting 3V SIM Card
-
Antenna:
-
50 Ω SMA Antenna interface
-
Temperature range:
-
-20-+60 °C
-
Humidity range:
-
Relative humidity 90% (condensation free)
-
Relay Rating:
-
3A/240VAC
-
Name:
-
GSM Wireless Remote Control Relay Switch RTU5024
-
Type:
-
Gate Operators
Quick Details
-
Contact Load:
-
Low Power
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
King Pigeon
-
Model Number:
-
RTU5024
-
DC Power supply:
-
Standard adapter: DC12V/1A
-
Power consumption:
-
12V input Max. 50mA/Average 25mA
-
Frequency range:
-
850/900/1800/1900MHz ;
-
SIM Card:
-
Supporting 3V SIM Card
-
Antenna:
-
50 Ω SMA Antenna interface
-
Temperature range:
-
-20-+60 °C
-
Humidity range:
-
Relative humidity 90% (condensation free)
-
Relay Rating:
-
3A/240VAC
-
Name:
-
GSM Wireless Remote Control Relay Switch RTU5024
-
Type:
-
Gate Operators

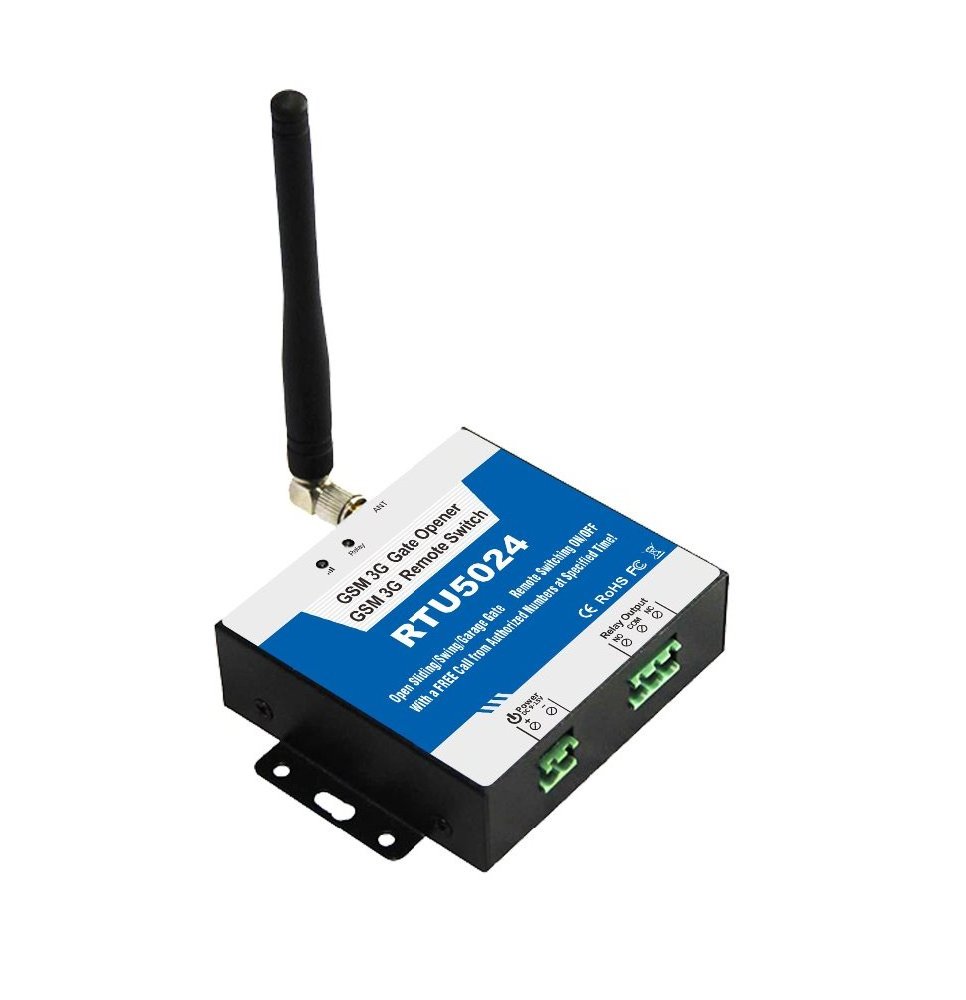

GSM wireless remote control relay switch RTU5024
GSM Gate Opener, GSM Garage Opener, GSM Relay, GSM Switch, GSM Remote Control, GSM Control, GSM access Control, GSM Key. Wireless Switch, wireless relay, gsm remote switch, gsm remote relay.
King Pigeon Hi-Tech.Co.,Ltd. is a leading GSM GPRS 3G 4G RTU Controller and GSM GPRS 3G 4G Industrial IoT Solution manufacturer since 2005. It provides a complete product lines and Cloud Platform, APP solution to meet different applications.
***Mianly Products***
| GSM SMS GPRS 3G 4G RTU Controller Quick Selection Guide | Click Here |
| Modbus TCP Ethernet Remote I/O Module Quick Selection Guide | Click Here |
|
Modbus RTU Remote I/O Module Quick Selection Guide |
|
|
GSM SMS 3G 4G Security Alarm Senior Care Quick Selection Guide |
Name:GSM Wireless Remote Control Relay Switch
Model:RTU5024
GSM Gate Opener, GSM Garage Opener, GSM Relay, GSM Switch, GSM Remote Control, GSM Control, GSM access Control, GSM Key. Wireless Switch, wireless relay, gsm remote switch, gsm remote relay.
Authorized 200 users open gate at the specified time!
GSM Gate, Barrier, Shutter, Garage Door and Door opener
Open gate or garage door with a FREE call from your mobile phone!
Remote switching machines ON/OFF with a FREE call from your mobile phone!
Remote monitoring the Gate, Barrier, Shutter, Garage Door OPEN/Close Status!
The GSM Gate Opener/Relay Switch RTU5024 is an powerful GSM Relay, it is a very simple device which can be used for authorized door access, controlling gates, switching of remote equipments, car parking systems. Actually the GSM Gate Opener/Relay Switch RTU5024 can be used in places which require to turn ON/OFF your system, machines, equipments remotely with a FREE call from your mobile phone.
Just dial from Authorized User number at the specified time then the Barrier and doors are opened, or the machine are turn on or off by the GSM Gate Opener/Relay Switch . There are no call costs, the GSM Gate Opener/Relay Switch rejects the call from authorized number then carries out the turn ON/OFF action.
Moreover, the user can be authorized at the specified time to operate it, after timeout, will automatically change to unauthorized type.
The RTU5024 supports GPRS communication function, very suitable for remotely monitoring outdoor cabinets and stations of telecom company, traffic origination, power supply company and so on. It can be authorized different repair person or maintains person to open the cabinets or stations at the specified time, saving time to get the keys for the locks and saving cost to repair or replace the locks while the person lost the key. And also can remote monitoring the door is opened or closed, or illegal opened.
Applications:
- Ø Remote open/close swing/sliding gates, doors, shutters, garage doors,locks with a free call!
- Ø Residential : Door,gate,garage access control, electronic fan,microwave,air-conditioner control.
- Ø Industry: Remote switch equipment, for example: street lights, solar power, motor, inverter, PLC, pumps, fans, etc.
- Ø Agriculture: Remote control pumps, etc.
- Ø Business: Remote control electronic boxes,bright billboards,LED signs,etc.
Main Features:
1. Quad-band, can work in the worldwide GSM Networks;
2. No call charges. the GSM Gate Opener/Relay Switch rejects the call from authorized number then carries out the turn ON/OFF action on the first 'ring';
3. Multiple applications. (gates, bollards, barriers, garage doors, shutters and access doors or machines);
4. Secure - Using caller ID for identification, unknown callers are ignored;
5. Can be operated from anywhere, no distance limit;
6. Add or remove users by SMS Text command;
7. No need to provide a remote control or keys for different users;
8. Up to 200 authorized phone numbers can be configured at the specified time;
9. One output with relay rating 3A/240VAC for connecting the switch of the door or machines;
10. The relay action will return a SMS confirmation to the owner or authorized call in number, this function is editable by user;
11. The relay close or open time is programmable;
12. Based on GSM network, applied to many applications.
What Applications does the GSM GPRS Relay Switch RTU5024 suitable for?
Cabinets or stations of Telecom company;
Cabinets or stations of traffic originations;
Cabinets or stations of power supply company
Home and garage owners
Business companies
Hotels
Warehouses
Parking places
Hospitals
Other place need remote switching applications
Simple Security Alarm Systems applications
Packing List:
Main Unit X 1
GSM Antenna X 1
User Manual CD X 1
Packing Size: 17*9.5*4 cm
Gross weight: 0.3 kg
Note: The package does not include any SIM card and AC/DC adaptor.
