TKM-01
Battery inside ,wireless
Waterproof
Input password to open gate
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Villa
-
Place of Origin:
-
China
-
Brand Name:
-
GIANT
-
Model Number:
-
JJ-PKM-C01
-
Input Voltage:
-
24VDC
-
Protection lever:
-
IP55
-
Max single-leaf length:
-
1.5M
-
Max single-leaf weight:
-
150kg
-
Environment temperature:
-
-20 to + 55 celsius degree
-
Motor's power:
-
40W
-
Rotational speed:
-
250PRM
-
Rod's running speed:
-
1.6CM/S
-
Rod's max travel:
-
300mm
-
Type:
-
Swing Gate Opener
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
total solution for projects
-
Application:
-
Villa
-
Place of Origin:
-
China
-
Brand Name:
-
GIANT
-
Model Number:
-
JJ-PKM-C01
-
Input Voltage:
-
24VDC
-
Protection lever:
-
IP55
-
Max single-leaf length:
-
1.5M
-
Max single-leaf weight:
-
150kg
-
Environment temperature:
-
-20 to + 55 celsius degree
-
Motor's power:
-
40W
-
Rotational speed:
-
250PRM
-
Rod's running speed:
-
1.6CM/S
-
Rod's max travel:
-
300mm
-
Type:
-
Swing Gate Opener
Product Description
The PKM-C01 swing gate opener is main made of use for light weight swing gate, max single gate dure weight 200kgs, max single gate dure length 2 meters, with much competitve price and stable working function to make the model popular in Asia, Europe etc. Wifi app control, solar system match, digital LED board, gate opener accessories can well connect.
The model swing gate opener also can work solar system

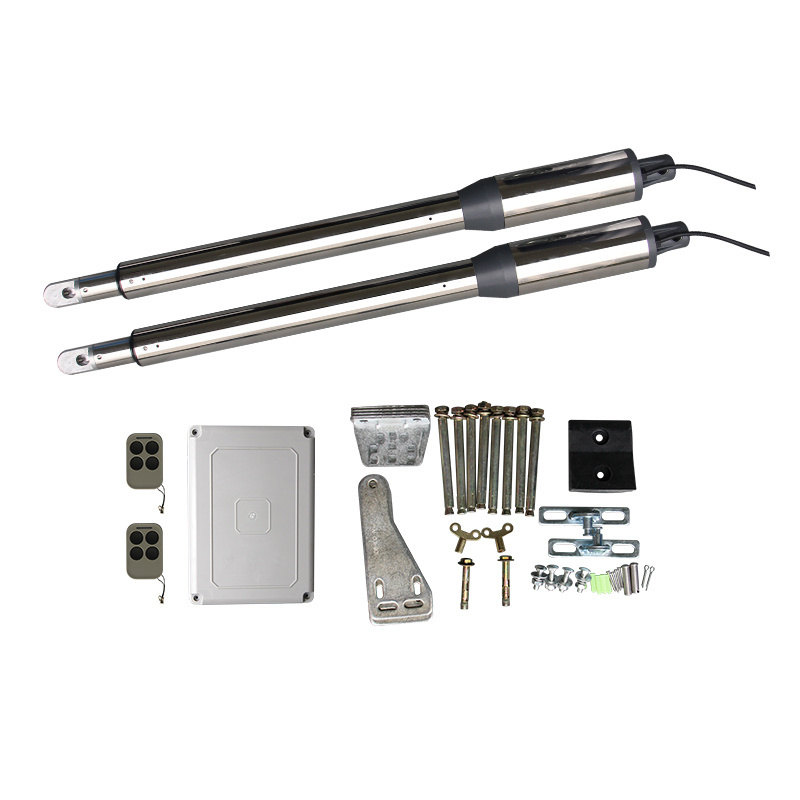

Solar full set includes:
2 arm
1 20W solar panel with brackets
2 pcs 12V 7AH/9AH battery
1 solar charger
1 big box
2 remote control
1 set hardware accessories
1 20W solar panel with brackets
2 pcs 12V 7AH/9AH battery
1 solar charger
1 big box
2 remote control
1 set hardware accessories
Specification:
1.Filed tested by EU and US clients with Min.30000 open/close cycels
2.Clutch device for power failure,use a special key release clutch,operate the gate manually.
3.Stop working when gate meets obstacle.
4.Soft start and soft stop ,avoid some accidents
5.Metal pinion gear driving design with low working noise
6.Adjustable opening/closing interval between master and slave gate.
7.Adjusting residence sensitivity
8.24VDC Swing gate opener can work for solar power system and back up battery
|
Product Name
|
Automatic Swing gate opener PKM-C01
|
|
Material
|
stainless steel
|
|
Motor power
|
24VDC 40w
|
|
Max single-leaf length
|
2M
|
|
Max single-leaf weight
|
200kg
|
|
Rod's max travel
|
300mm
|
|
Protection class
|
IP55
|
|
Working speed
|
1.6cm/s
|
Products Show
Optional accessories
Wireless keypad
Photocell
HW-07
1.dimension: 9.3cm*4.4cm*4.1cm
2.The photocells should be installed at height of more than 20cm above the ground.
3.And the distance between transmitter and receiver should about 12m
Flashing light
JD-06
AC/DC 12V-265V.
With antenna
Wifi mobile phone control device
Control gate by moblie phone APP with wifi anywhere any time.
Do you want to control your gate , your light by your smart phone? Smart hub can help you realize it ,not only gate , but also light , garage , curtain and other RF signal control system .
