- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
9-16V
-
Size:
-
196(L)*132(W)*39(H)mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Teampie
-
Model Number:
-
TP-DSP0812
-
Product name:
-
12 CH DSP
-
Channel:
-
8 IN 12 OUT
Quick Details
-
Number Of Channels:
-
Others
-
Car Fitment:
-
Ford
-
Frequency Range (Hz):
-
20 - 20000 Hz
-
Voltage:
-
9-16V
-
Size:
-
196(L)*132(W)*39(H)mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Teampie
-
Model Number:
-
TP-DSP0812
-
Product name:
-
12 CH DSP
-
Channel:
-
8 IN 12 OUT
PRODUCT DESCRIPTIONS
|
PRODUCT SPECIFICATIONS
|
|
|
|
Item no.
|
TP-DSP0812
|
|
|
Product name
|
Digital Sound Processor(DSP)
|
|
|
Number Of Channels
|
8 in 12 out
|
|
|
Dynamic range (RCA input)
|
≥100dB
|
|
|
SNR(RCA input)
|
≥90dB
|
|
|
THD
|
≤0.05%
|
|
|
Frequency Range (Hz)
|
20Hz - 20KHz
|
|
|
Working temperature
|
-40~70°C
|
|
|
Voltage
|
DC9V-16V
|
|
|
Input Impedance
|
High level input: 240Ω; low level input: 20kΩ
|
|
|
Low level output
|
51Ω
|
|
|
Signal input & output range
|
RCA input: 7.5Vpp; High level: 26Vpp;RCA output: 7.5Vpp
|
|
|
REM Input
|
High level input signal: H1+ /H1- or ACC control cable
|
|
|
REM Output
|
+12V Starup voltage output
|
|
|
Stanby Power
|
≤0.1W
|
|
|
DSP Size (mm)
|
196(L)*132(W)*39(H)
|
|
|
N.W
|
1.0 KGS
|
|
|
G.W
|
2.0 KGS
|
|
PC SOFTWARE
COMPANY PROFILE
OUR EXHIBITION
PRODUCT PACKAGING
TRANSPORTATION
CUSTOMERS' FEEDBACK
FAQ
FAQ :
1. Q: Is the DSP built in the amplifier?
A: No, the DSP is not built in the amplifier.

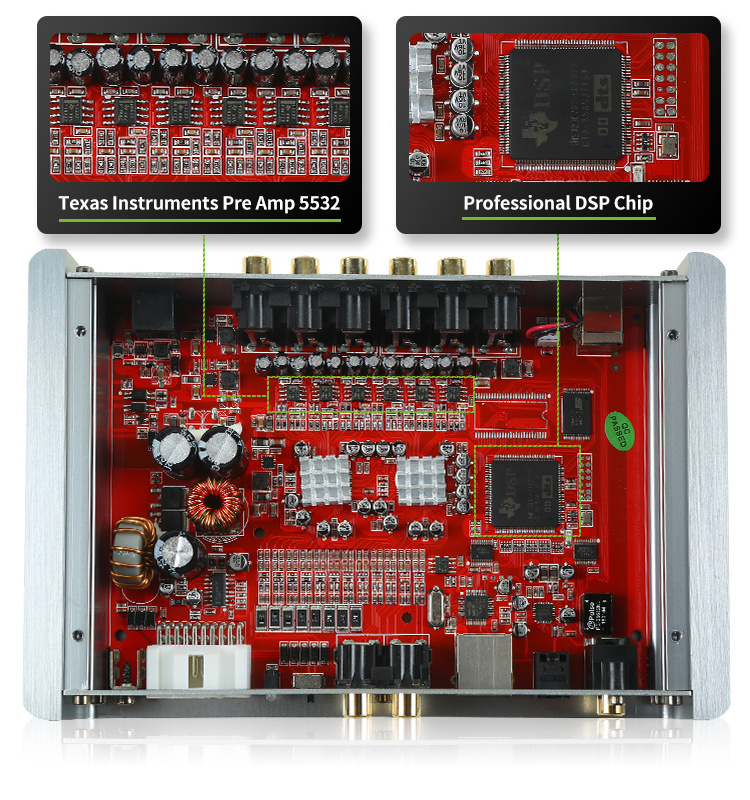

2. Q: What DSP chip is used?
A：We use chips of Analog Devices or Texas Instruments from USA.
3. Q: Does the DSP come with BT feature?
A：Default DSP doesn't come with BT box.
4. Q: Does the DSP come with controller ?
A: Default DSP doesn't come with controller.
5. Q: What type of software does the DSP use for tuning?
A: PC software or Android App.
6. Q: Target market of our DSP.
A: Mid to high end SQ car audio systems.
