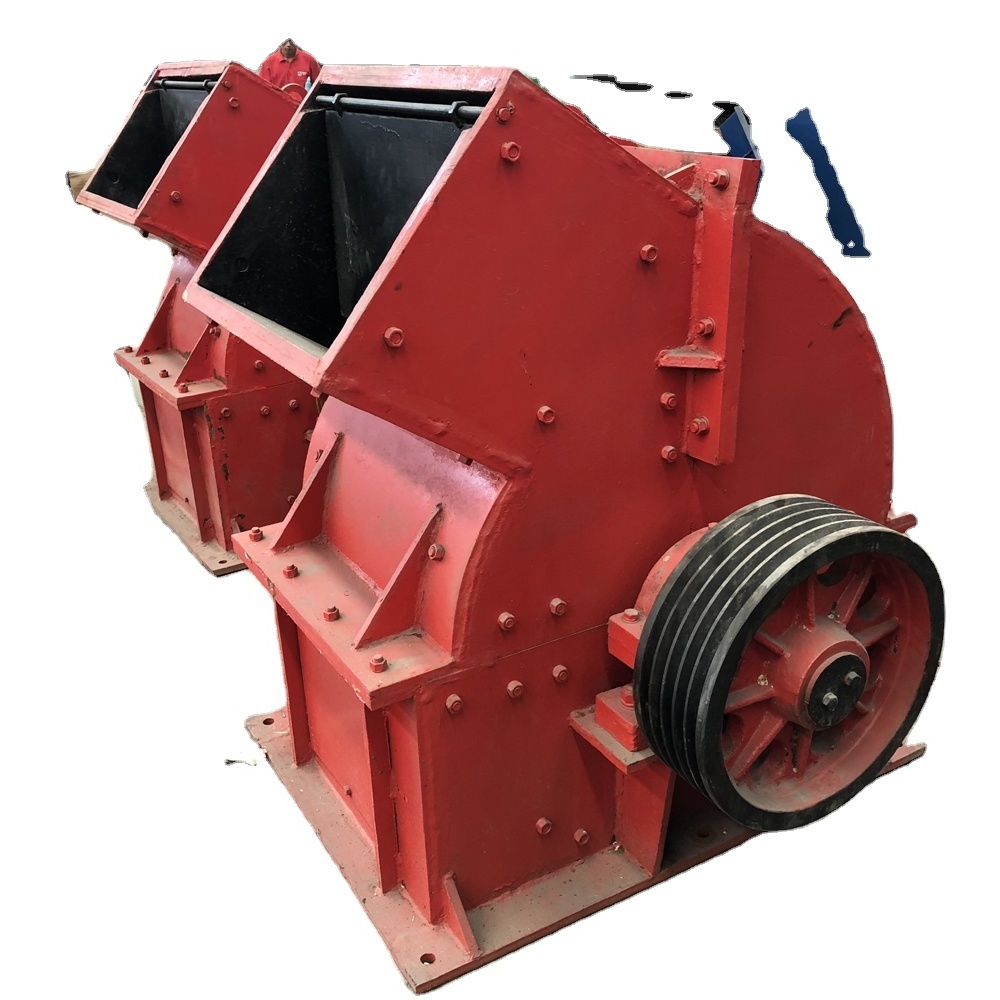

Huahong superior quality gold mine 800X600 rock crusher portable hammer crusher mill

Huahong superior quality gold mine 800X600 rock crusher portable hammer crusher mill

FOB Reference Price: Get Latest Price

≥1 Sets

US $4000

≥2 Sets

US $3000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: HUAHONG

Dimension(L*W*H):: 1310*1180*1310

Weight:: 3000 KG

After-sales Service Provided:: Engineers available to service machinery overseas

color:: as to request

sample processing:: supply

visit factory:: supply

Certification:: ISO9001

Quick Details

Application:: mine,building,metallurgy

Capacity(t/h):: 18-40

Place of Origin:: Henan, China

Brand Name:: HUAHONG

Dimension(L*W*H):: 1310*1180*1310

Weight:: 3000 KG

After-sales Service Provided:: Engineers available to service machinery overseas

color:: as to request

sample processing:: supply

visit factory:: supply

Certification:: ISO9001

Huahong superior quality gold mine 800X600 rock crusher portable hammer crusher mill

Specifications

mobile hammer crusher:

1,Superior quality;
2,Reasonable price;

3,High efficient;

Introduction

This kind of crushers are mainly used in some places which don't have enough electricity or without electricity. They can do medium or fine crushing for every kind of rocks and stones.

Our company has two types of this diesel crushers: diesel engine jaw crusher and diesel engine hammer crusher.

Portable mobile hammer crusher/shredder/hammer stone mill,Efficient mobile hammer crusher is used for breaking the hard materials, such as river stone, basalt , iron ore, granite, quartz, etc. And the diesel hammer crusher is used for breaking the materials which are not so hard, such as the glass bottle, sea salt, limestone, coal, etc.

This kind of crushers are with compact structure, easy to move and simple operation.

CIQ Certification

Characteristics

1. It has four wheels in the bottom, so it is very easy to move and operate, no need to install it to the ground.

2. Large crushing ratio, uniform particle size products;

3. Pad-style nesting population adjustment devices, and ease of adjustment range, and increase the flexibility of the equipment;

4. Safe and reliable lubrication system, convenient replacement parts, small maintenance workload;

5. Structure is simple, reliable; low operating costs.

6. Energy-saving equipment: stand-alone energy-saving 15% ~ 30%; energy saving of the system is more than doubled;

7. The discharging size of jaw crusher can be adjusted to meet the requirements of different users;

8. Low noise and less dust.

Technical parameters

Models	Max.size of feed material (mm)	Size of discharge (mm)	Output (t/h)	Electric motor power (Kw)	Weight (Kg)	Overall dimension (mm)
PC300×200	≤ 80	≤ 8	1-5	5.5	600	630×380×630
PC400×300	≤100	≤10	5-10	11	800	900×670×860
PC600×400	≤120	≤15	10-22	18.5-22	1500	1200×1050×1200
PC800×600	≤150	≤15	18-40	55	3100	1310×1180×1310
PC1000×800	≤200	≤15	25-50	75	7900	1600×1390×1575
PC1000×1000	≤200	≤20	30-55	132	8600	1800×1590×1775
PC1300×1000	≤250	≤25	35-65	180	14000	2060×1600×1890
